- Sizes 1 through 6 all use the same attachement dimensions
The works on the door are the same even with different sizes
- 3 positions speed adjustment: 1st , 2nd and 3rd (latching action)
Closing speed can be adjusted separately in 3 positions by a screw driver.
Note1: The latching action refers to the mechanism that speeds up
to the door immediately before closing to ensure that the door shuts securely.
Note2: Instead of 3rd speed adjustment, latching action angle is changeable for type 4, 5 and 6.
Note3: Speed adjustment is different by models. Please refer to the

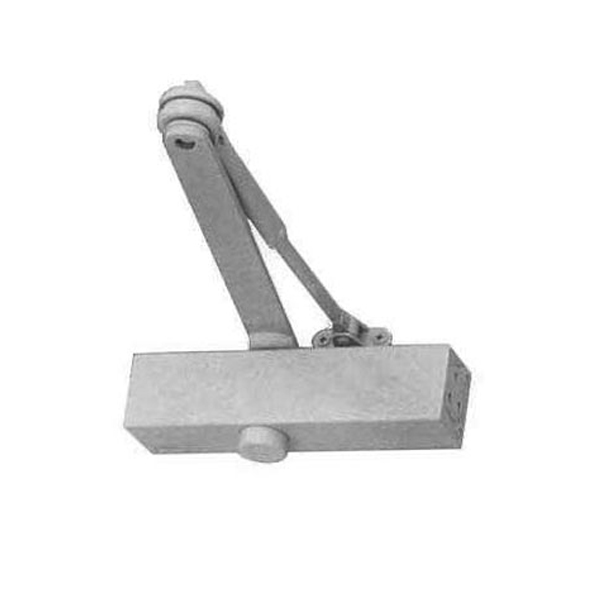

- Sleek angular body and arm
An angular body and slim, universal arm are used. The arm
length can be adjusted.
- Constant latching speed in any season
Since an adjustment valve compensates for temperature
variation, closing speed is unaffected by temperature.
- Easy adjustment of stop angle and detailed settings
The stop angle can be moved in approximately 10° interval
for precision adjustment.
Note: The stop angle may vary depending on the arm length and installation position.
- Six colors to coordinate with your door
The M600 Series comes in six different colors. Choose the best color to coordinate with your walls and door
- More options available for improved performance
A back checker can be added for use in windy locations. When a back checker is used, a brake
is activated to prevent the door from being blown open (adjustable).
- Delayed action:
a delayed action mechanism can be used to make the door close very slowly up to a set angle after
it is opened past that angle (adjustable).
- Materials and finished
Body ： Aluminum die-cast / Baked painted
Arm ： Steel / Baked painted
Cap ： ABS / Colored or Baked painted
