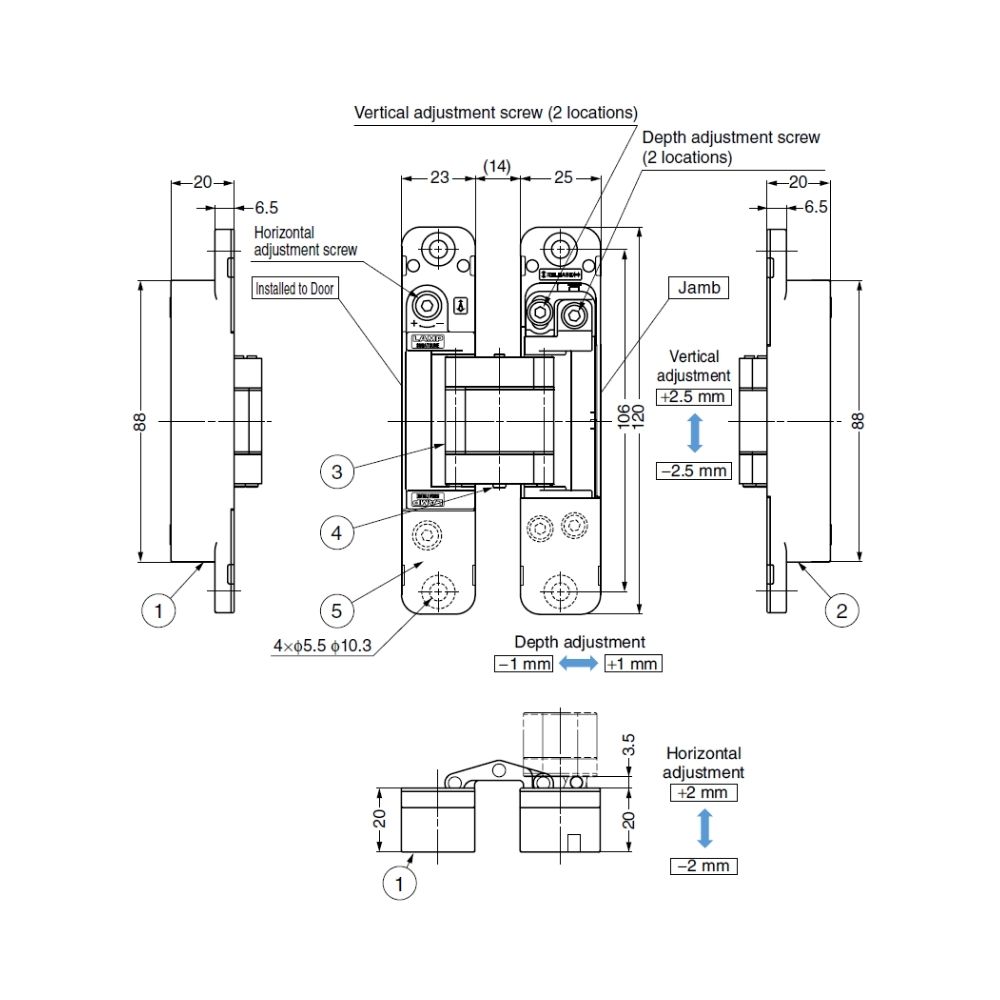

The HES3D-120 Concealed Hinge offers the perfect balance of seamless aesthetics and functional innovation for high-end residential and light-commercial interiors. Designed for standard-weight doors, this invisible hinge disappears entirely when the door is closed, delivering a flawless, modern flush surface. Its signature 3-way adjustment technology ensures that achieving perfect door alignment is simple and immediate, long after the hinge is mortised.
| Item Code | Item Name | Colour |
| – | HES3D-120DC | Silver |
| – | HES3D-120DN | Champagne Gold |
| – | HES3D-120BL | Black |
depth.
the door-side and one for the jamb-side.
| Door Width | Door Height | Door Thickness | Opening Angle | Load Capacity (2 pcs) | Load Capacity (3 pcs) |
| Max. 900 | Max. 2400 | Max. 29 mm | 100° | 30 kg | 40 kg |
