HES3D-160

|

HES3D-160

|

HES3D-160

CONCEALED HINGE

The HES3D-160 series is the professional’s choice for achieving a modern, seamless aesthetic in high-end residential and commercial spaces. Engineered in Japan, this hinge is designed to be completely concealed when the door is closed, providing the illusion of a floating wall. More than just invisible, it is a statement of innovation—a heavy-duty mechanism built for durability and unparalleled precision.

HES3D-160

HES3D-160SL
HES3D-160GL

Concealed Hinge

180° opening



Item CodeItem NameColour
170-091-009HES3D-160SLSilver
170-091-010HES3D-160GLGold
  • Small bore depth for compact assembly.

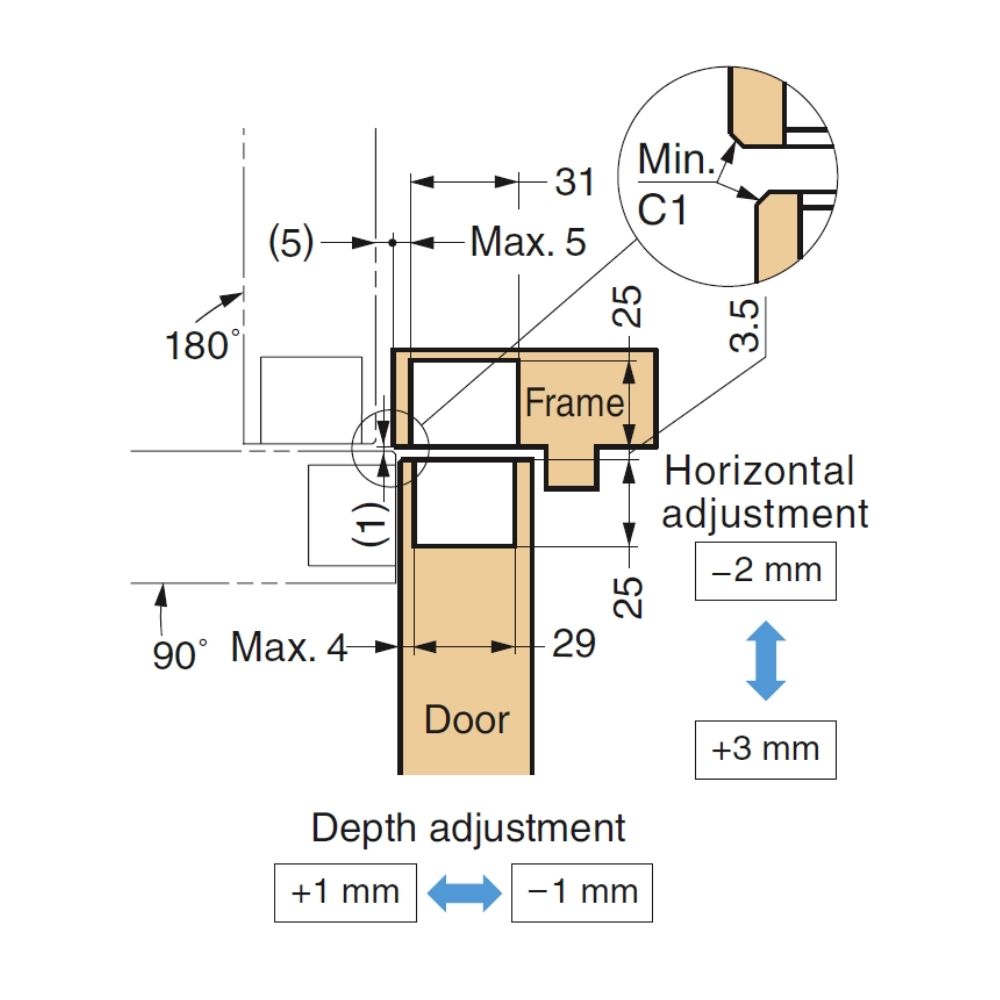

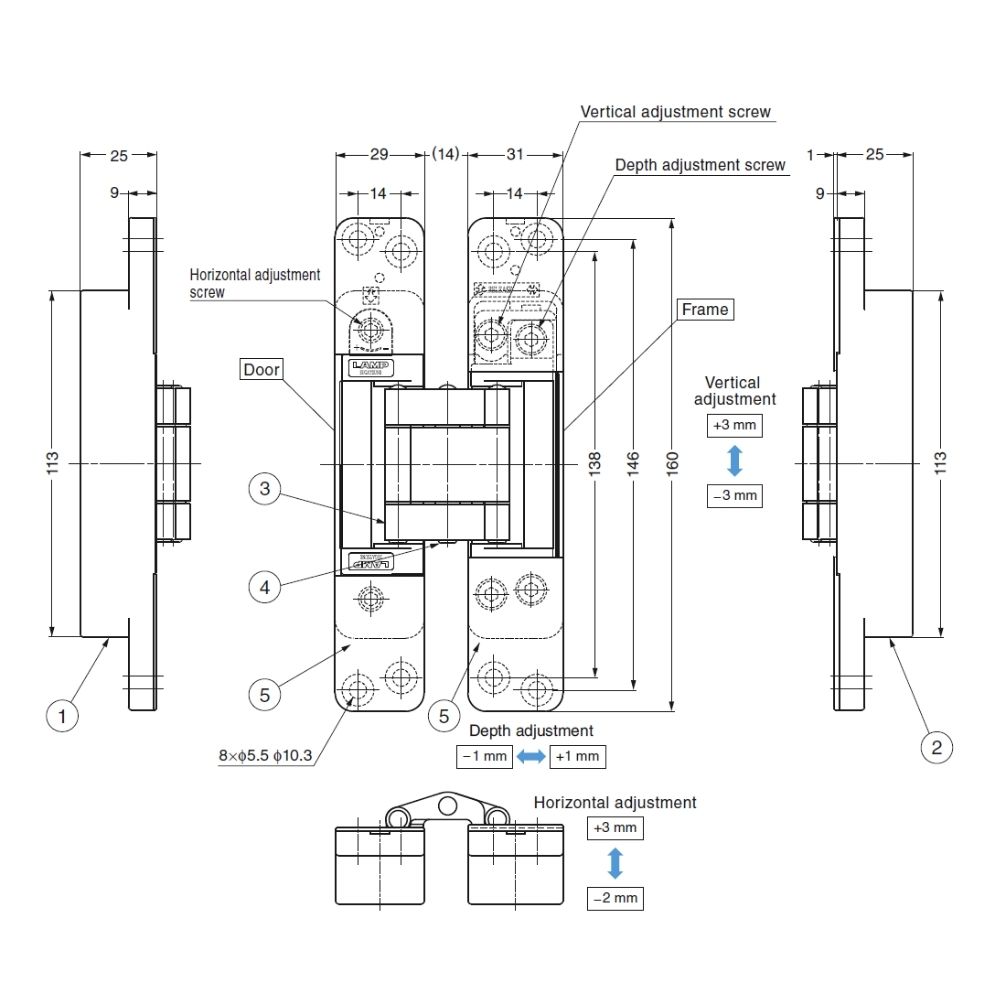

  • 3-way adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
  • Easy installation: Hinge can be split into the door side and the frame side and has temporary door holding feature.
  • Awarded the “Good Design Award 2011”.
Door WidthDoor HeightDoor ThicknessOpening AngleLoad Capacity (2 pcs)Load Capacity (3 pcs)
Max. 900Max. 2400Max. 29 mm180°45 kg60 kg
