Lamp by Sugastsune

|

HES3D-E190

Lamp by Sugastsune

|

HES3D-E190

Lamp by Sugastsune

|

HES3D-E190

CONCEALED HINGE

The HES3D-E190 is the pinnacle of concealed hinge technology, offering an innovative solution that combines powerful performance with the ultimate hidden aesthetic. Designed for doors where absolute precision and uncompromised safety are paramount, this hinge is an essential component for high-end residential, commercial, and architectural projects.

HES3D-E190

HES3D-E190DC
HES3D-E190NI
HES3D-E190DN
HES3D-E190BL

Heavy-Duty Concealed Hinge

180° opening

Item CodeItem NameColour
–HES3D-E190DCSilver
–HES3D-E190DNChampagne Gold
–HES3D-E190BLBlack
170-033-568HES3D-E190NINickel
170-045-916HES3D-E190WTWhite
170-058-506HES3D-E190DGRDark Grey

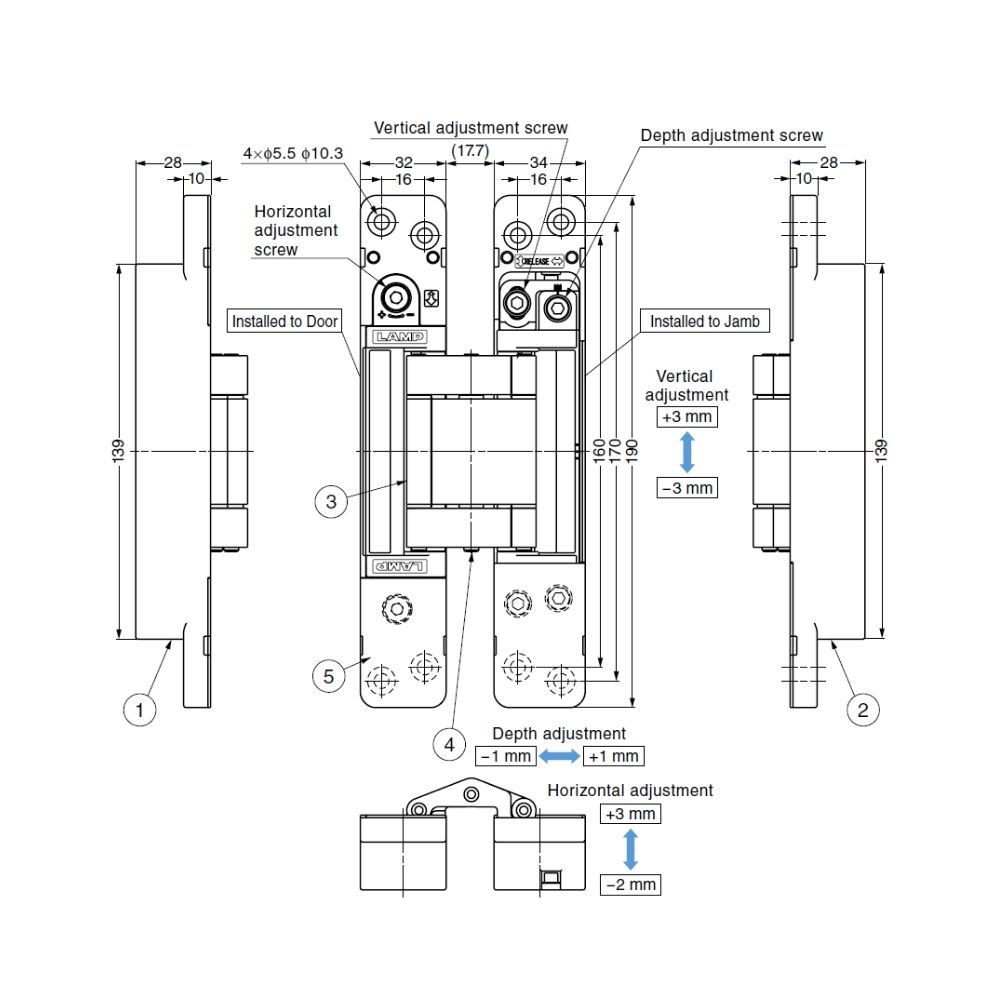

  • 3-WAY ADJUSTMENT
    Modern & Innovation: Adjust the door vertically, horizontally, and in depth after installation. This unparalleled feature eliminates alignment headaches and ensures a perfect, flush fit for years to come, maintaining your luxury aesthetic effortlessly.

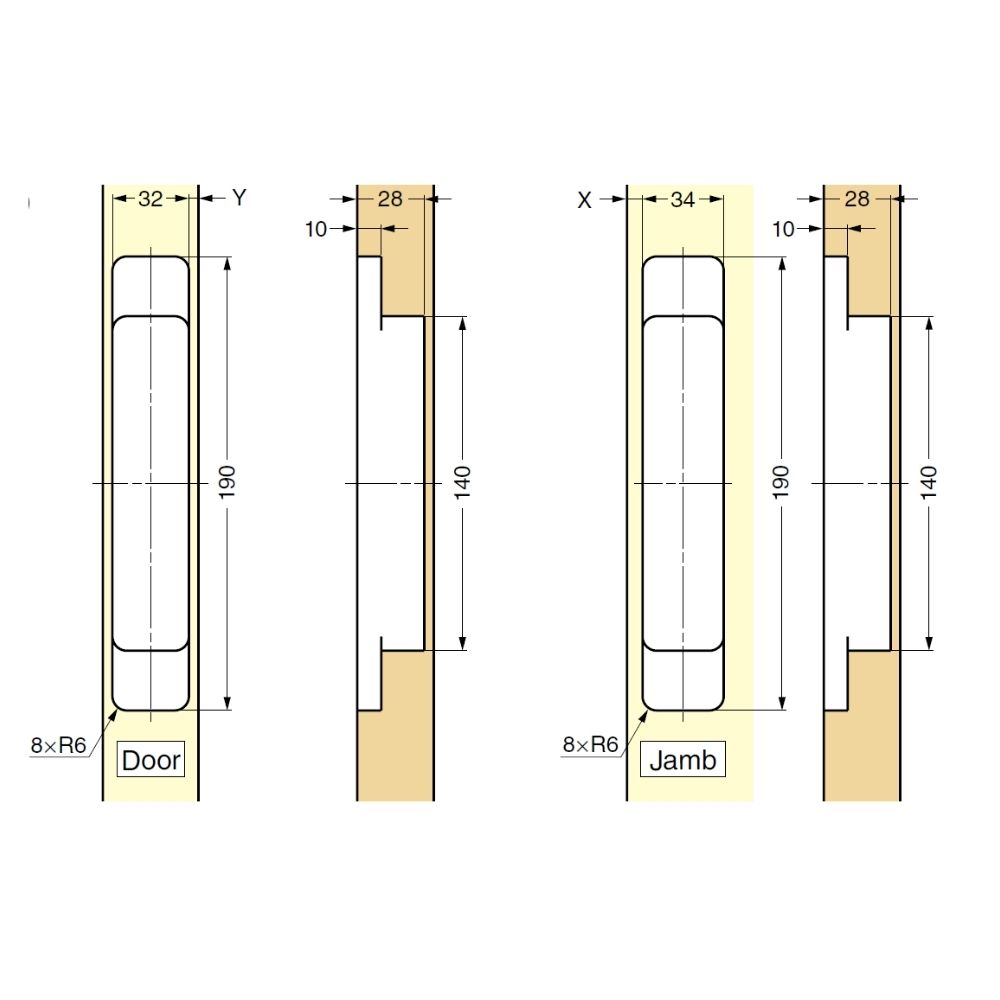

  • Thin Profile / Shallow Mortise
    Modern & Worth: Requires less material removal from the door and jamb, simplifying installation and preserving the structural integrity of your high-value millwork.
  • Simplified Split-Body Installation
    Innovation & Worth: The hinge divides into two parts (door-side and jamb-side), allowing for a single person to hang the door. It can be temporarily hung before final screw fixing, dramatically speeding up and securing the installation process.
  • UL Rated, up to 3 Hours
    Durable & Standard: Provides an essential layer of fire safety and compliance, meeting the highest standards for performance and building security.
  • Custom Colours Available
    Luxury & Modern: Coordinate your hardware perfectly with your design palette, ensuring every detail contributes to the high-end look of your space.
  • Concealed Design
    Luxury & Modern: The hinge is completely invisible when the door is closed, delivering the clean, minimalist lines required for contemporary luxury design.
Door WidthDoor ThicknessDoor Weight (Max.100 kg)Door Weight (Max.125 kg)Opening AngleWeight
Max. 900Min. 38 mm2 pcs3 pcs180°1,100 g
