HES3D-W190

|

HES3D-W190

|

HES3D-W190

CONCEALED HINGE

Maximum Clearance, Maximum Concealment. The Ultimate Hinge for Flushed Paneling and Molded Doorways. The HES3D-W190 is the pinnacle of the Sugatsune concealed hinge line, specifically engineered to accommodate the deep setbacks required by modern architectural trends, such as thick cladding, door paneling, or decorative molding. Its Wide-Throw arm ensures that even heavily finished doors open a full 180° and clear the frame without binding. This combination of innovation and robust capacity makes it the superior choice for high-end, heavy door applications where safety and aesthetics cannot be compromised.

HES3D-W190

HES3D-W190DC
HES3D-W190DN
HES3D-W190BL
HES3D-W190NI

Concealed Hinge

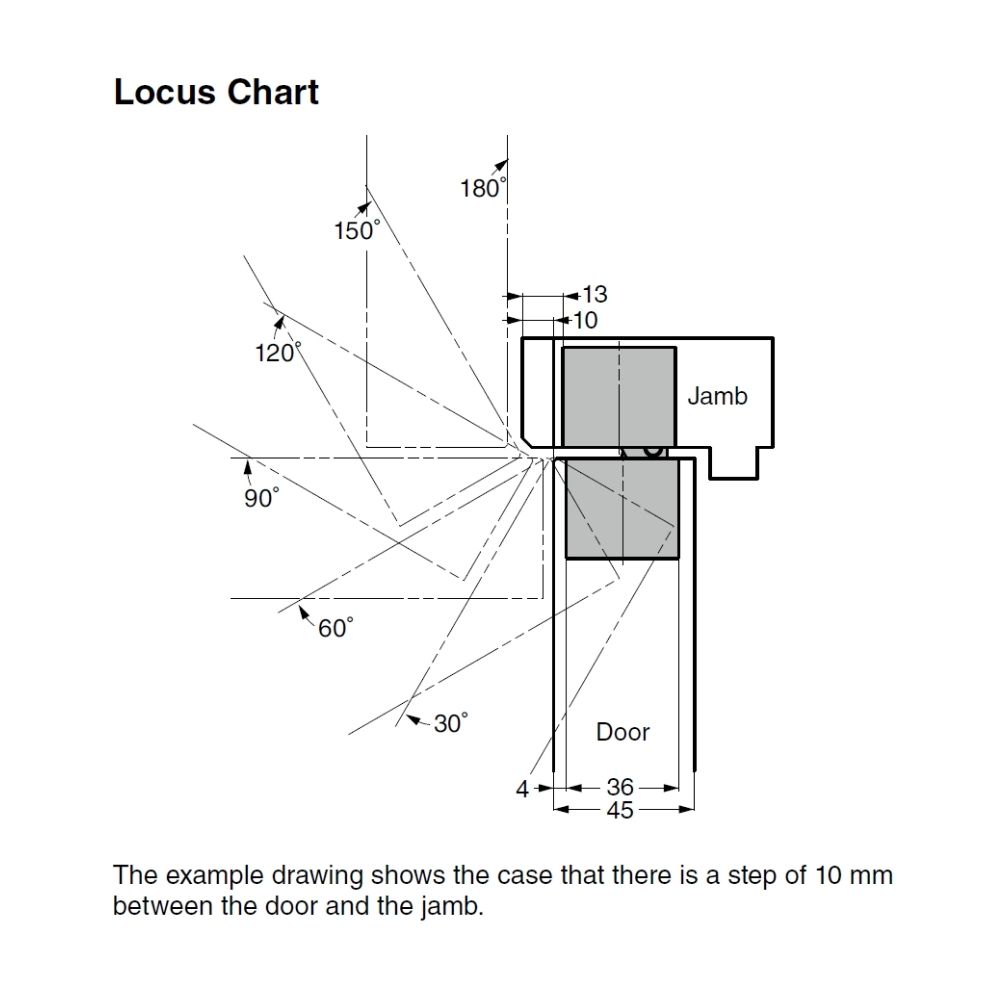

180° opening

Item CodeItem NameColour
170-045-738HES3D-W190DCSilver
170-045-739HES3D-W190DNChampagne Gold
170-045-740HES3D-W190BLBlack
170-045-904HES3D-W190NINickel
170-045-905HES3D-W190WTWhite
170-045-507HES3D-W190DGRDark Gray

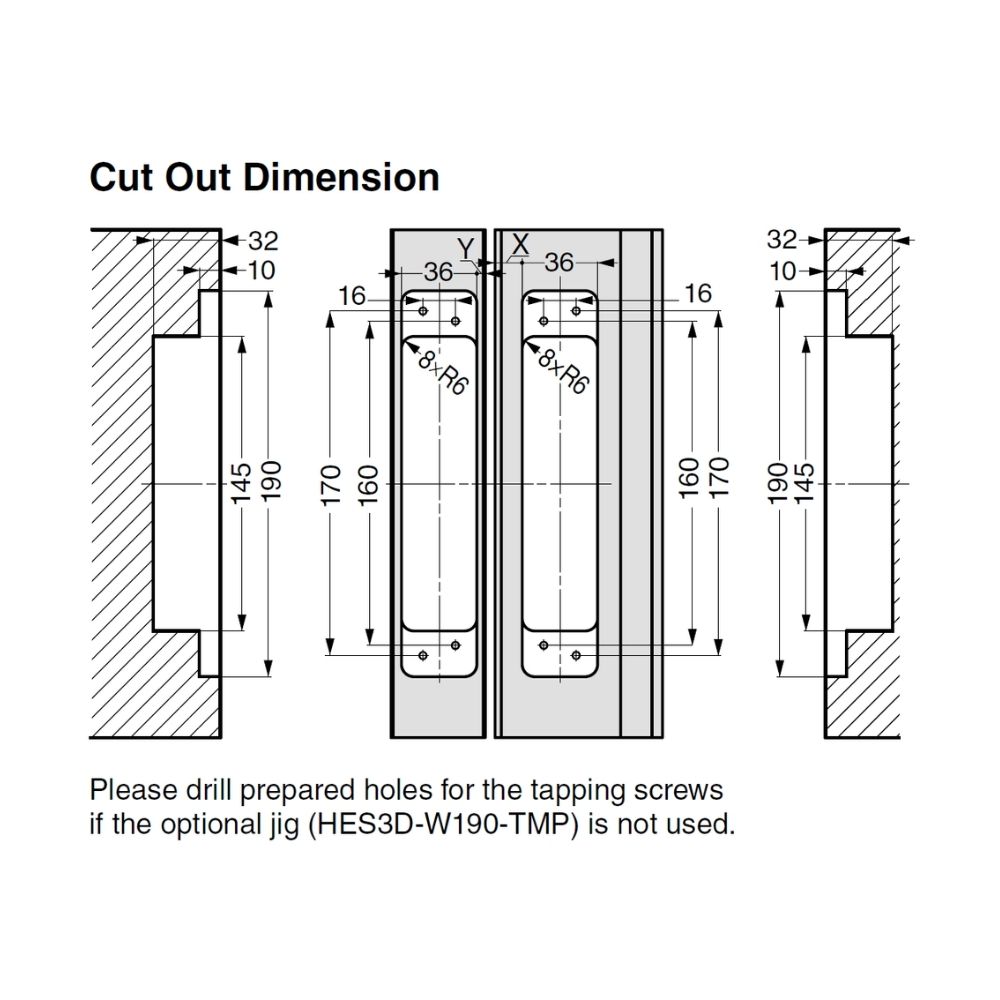

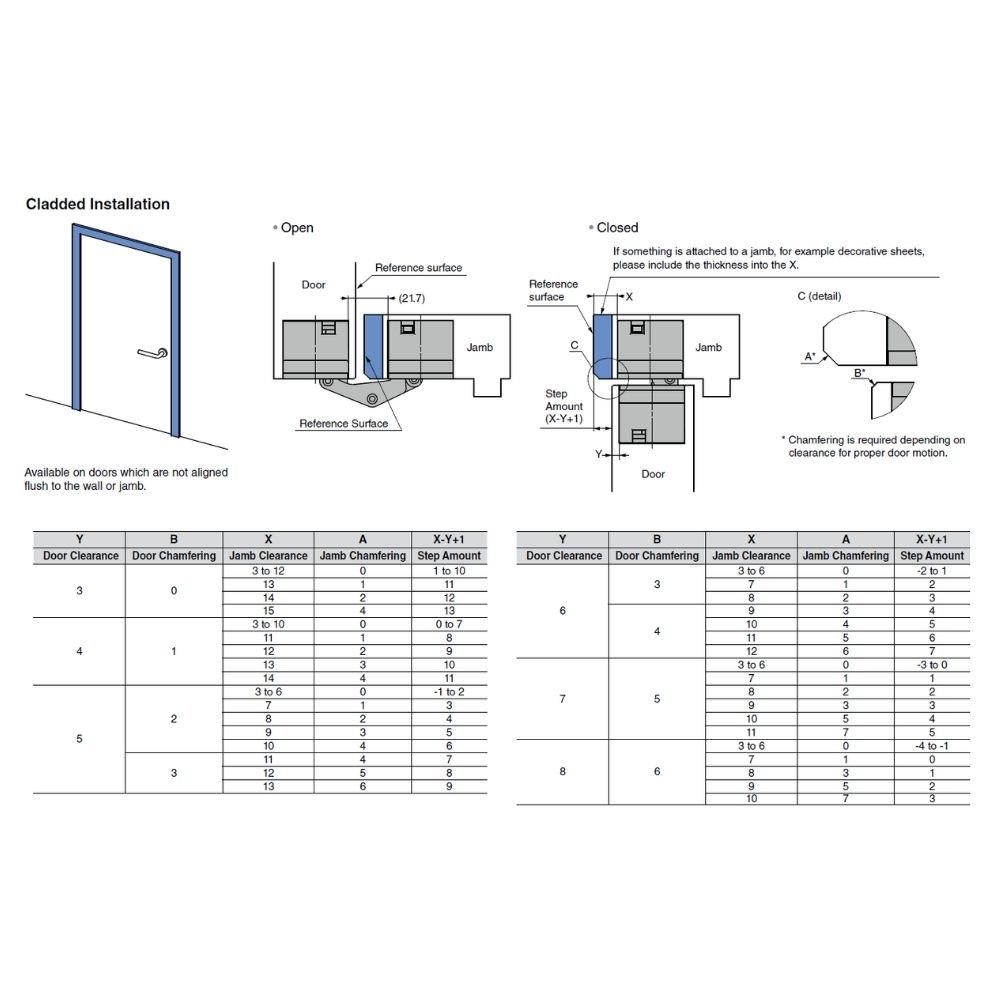

  • Has a long arm for a wider throw. This allows for use on clad and thick doors.
  • Thin profile allows for shallow mortise.

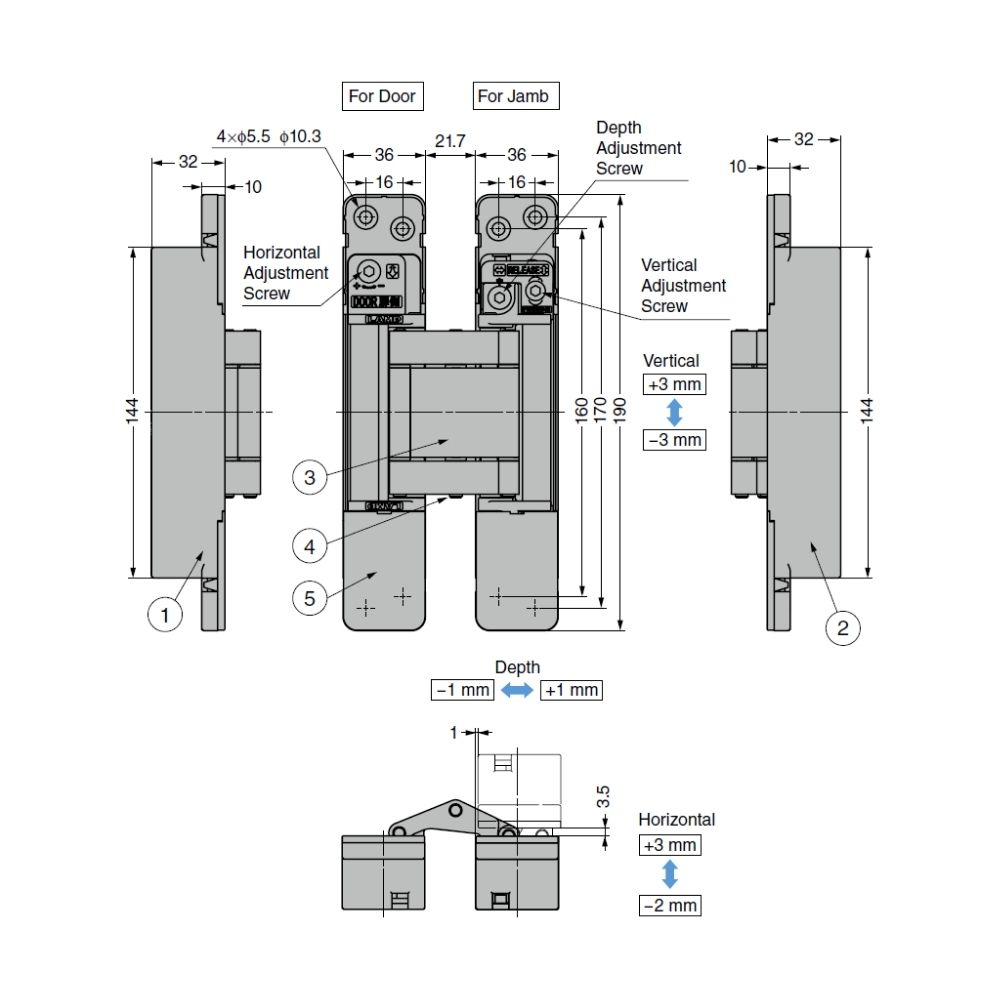

  • Vertical, horizontal and depth adjustments are available.
  • For simplified door hanging, the hinge divides into two parts: one for the door-side and one for the frame-side.
  • Can temporarily be hung before fixing with screws.
  • Custom colours are available.
  • Replacement screw covers are also available. Please contact us.
  • UL Rated, up to 3 Hours (DC, DN, and BL models only).
  • Angular Edge Cover is now available.
Door WidthDoor HeightDoor ThicknessOpening AngleLoad Capacity (2 pcs)Load Capacity (3 pcs)
Max. 915Max. 2440Min. 42 mm180°100 kg125 kg
