SYSTEM ONE, The most ideal pivot hinge for narrow profle doors. With a height of just 18 mm, this pivot hinge can be a broad range of pivot door designs and applications. carrying a broad of pivot door types up to 500 kg.

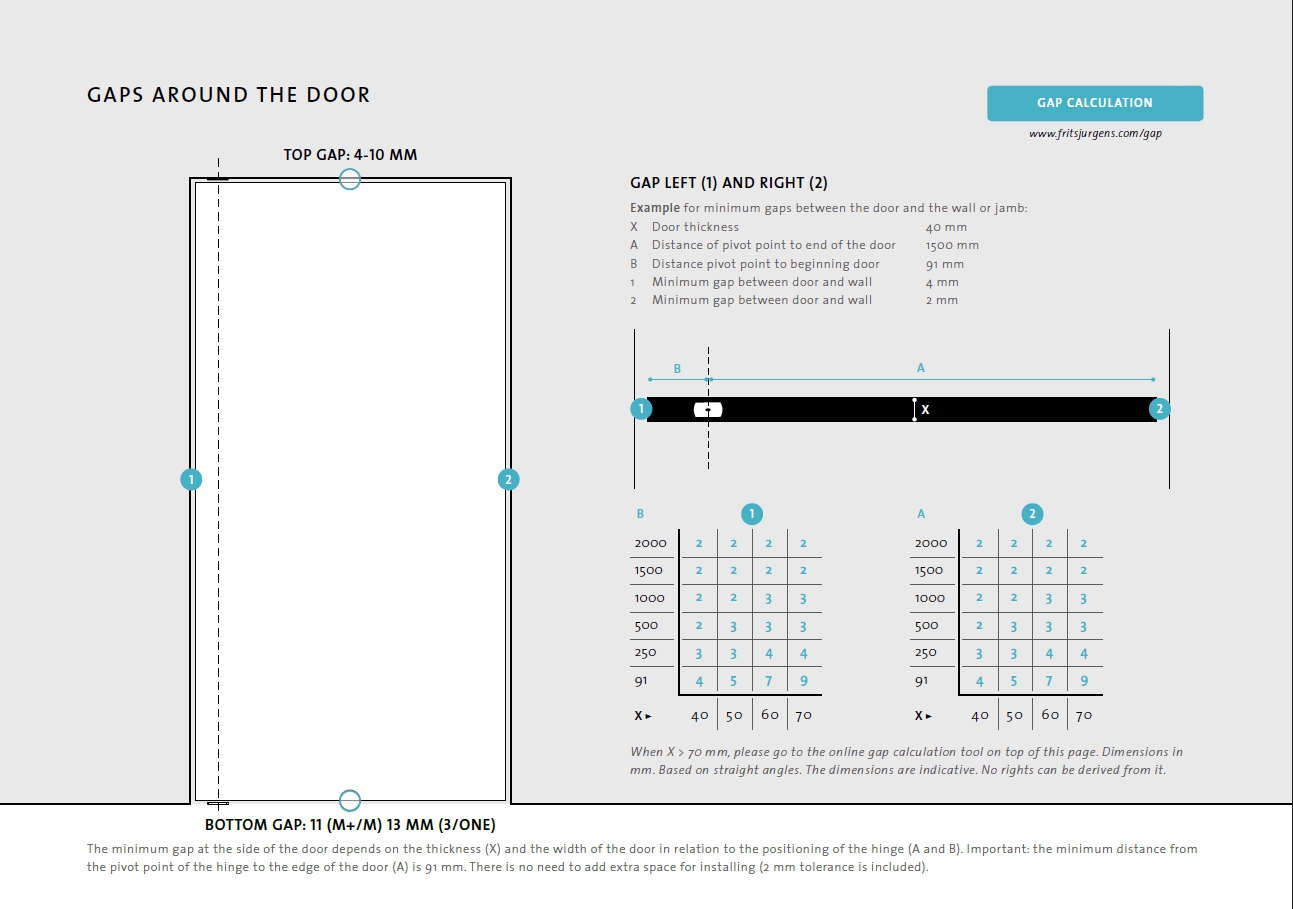

We need to know about your door dimension for calculation.
Unlimited
400 mm – Unlimited mm
Min. 40 mm
0 – 500 kg.
Let’s see this solution. SYSTEM ONE is suitable for Side Placement.
There are 2 functions. Which is your door opening?

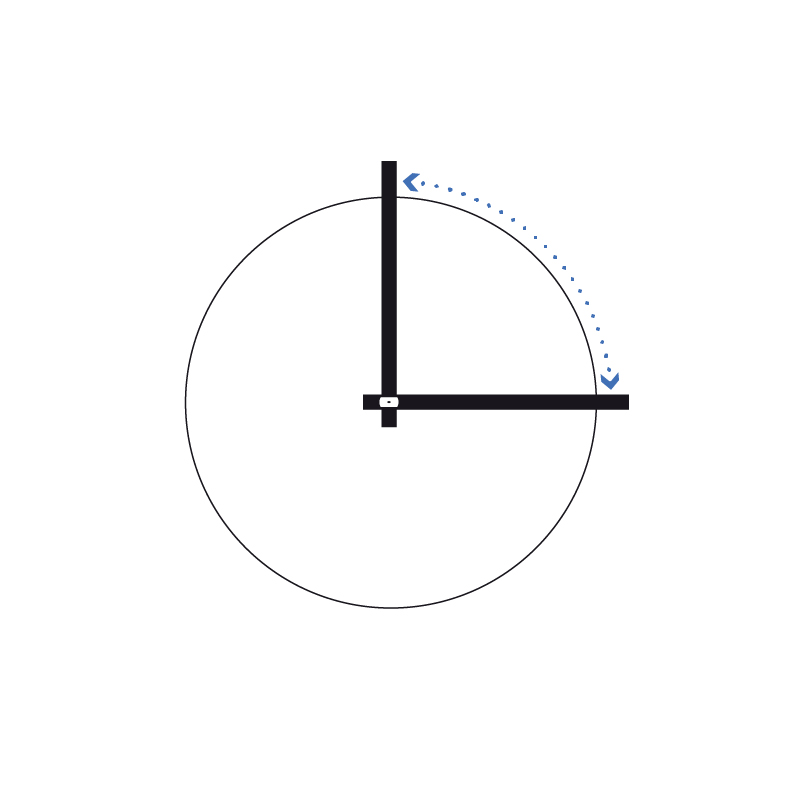

Rotation 90°
Rotation 360°
360° free-swinging pivot

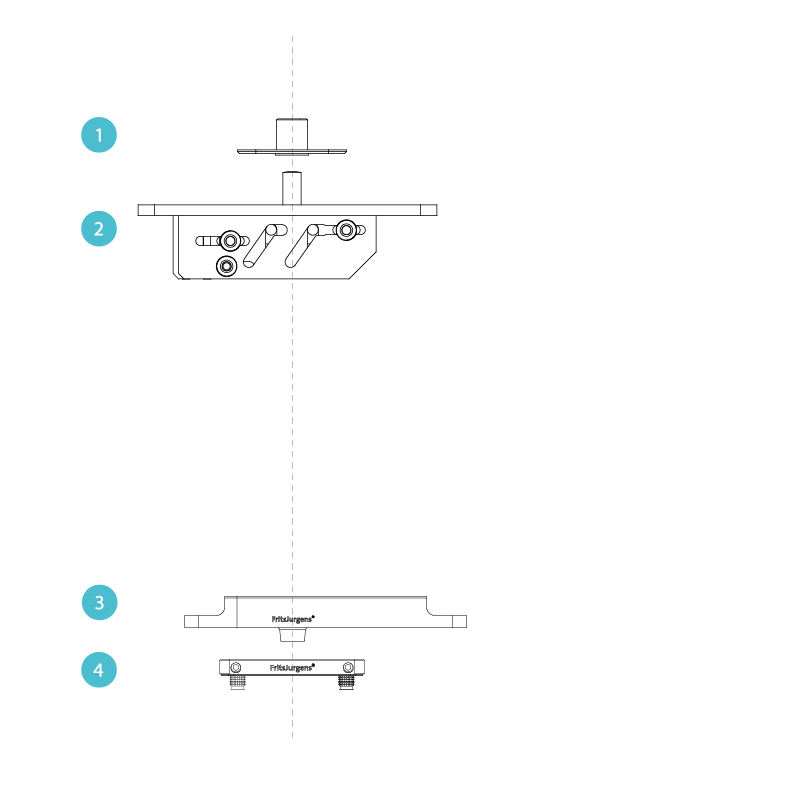

Let’s learn about parts in our SYSTEM ONE before designing your door.
1. Ceiling plate
2. Top pivot
3. Bottom Pivot (SYSTEM ONE)
4. Square floor plate or Round floor plate
** Ceiling plate and floor plate in stainless steel (Series 420) or PVD black. Including mounting set.
Let’s see figure out your SYSTEM ONE pivot which is suitable for your door!
The most ideal pivot hinge for namow profle doors. a height of just 18 mm, this pivot hinge can be apolied in a broad range of pivot door designs and applications.
SYSTEM ONE is suitable for pivot doors covering a range between 0 and 500 kg.
Material = Stainless Steel | Anodized aluminum
Corrosion resistance = EN 1670 – class 5 (norm:0-5)

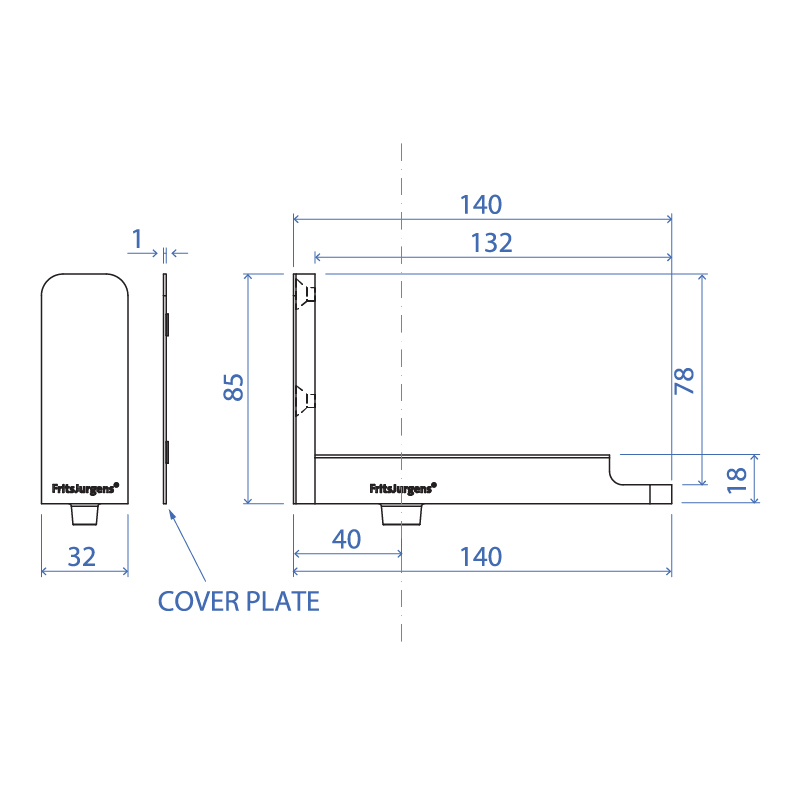

Pivot Point 40 mm
Minimally present in open position
(** Use For Side Placement only **)

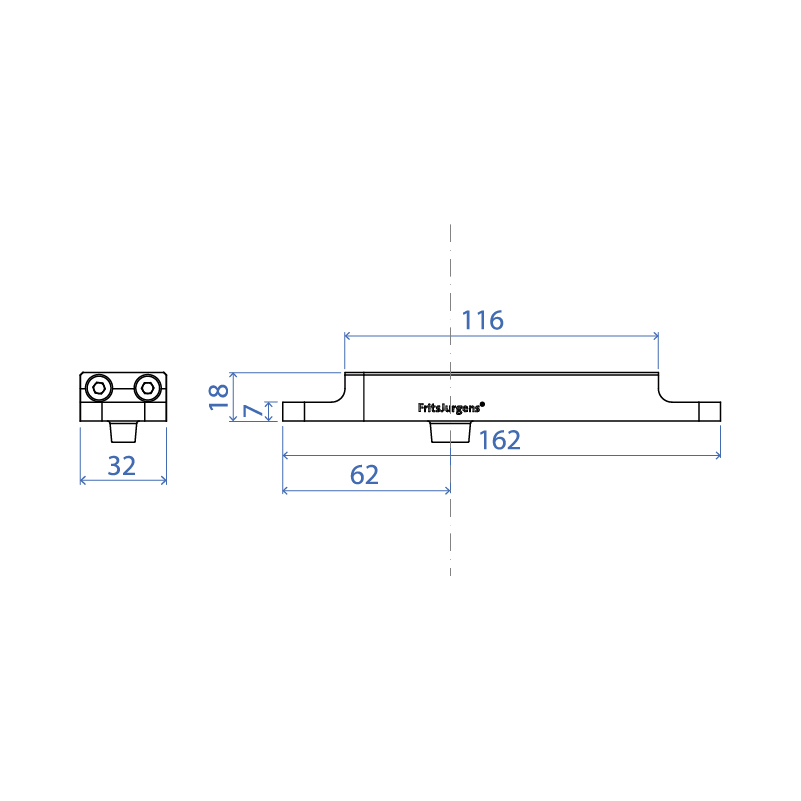

Pivot Point 70-200 mm
Suitable for almost every pivot door
(** Use For Middle Placement only **)
Pivot Point 91-200 mm
Easily lead cables through the top pivot
(** Use For Middle Placement only **)
Pivot Point 131-200 mm
Good for narrow aluminium frame
(** Use For Middle Placement only **)
Maximum Clear Width
Standard Type
Cable Grommet Type
Top Pivot Reversed Type
Ceiling plate Class B = 10 mm pin
Ceiling plate Class G = 15 mm pin
Receiver
FOR TOP PIVOT REVERSED
When ordering the top pivot Reversed, a rectangular Receiver is included in the set. The Receiveris mounted inside top of the pivot door. The pin of the top pivot Reversed is rotated downwards into the Receiver during the installation.
Ceiling Plate Class B
Ceiling Plate Class G
Ceiling Plate Receiver
