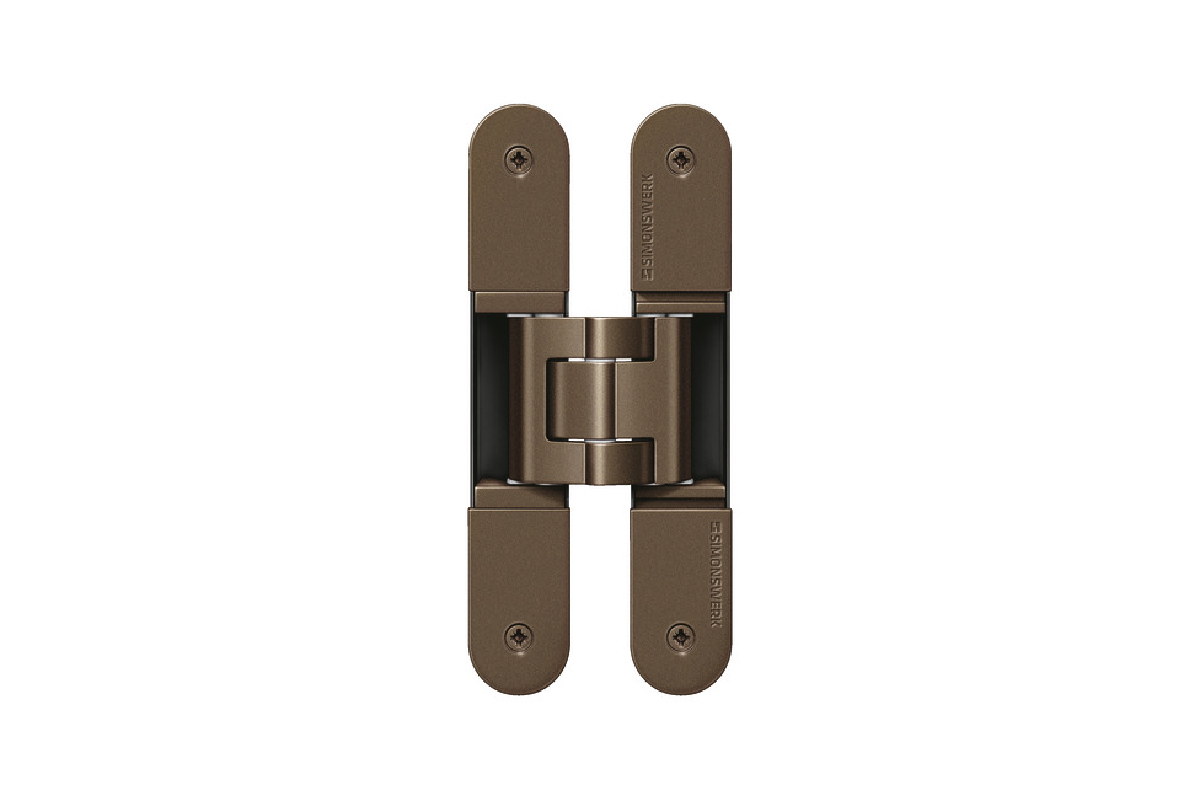

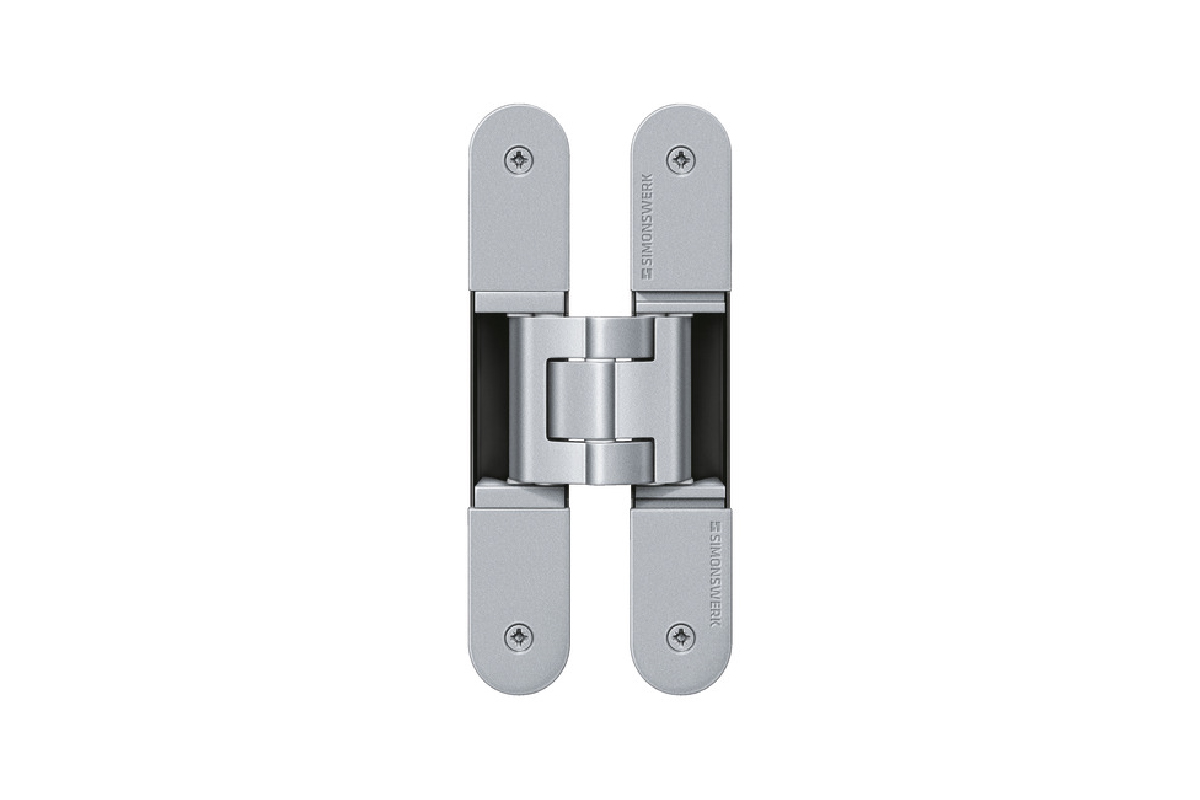

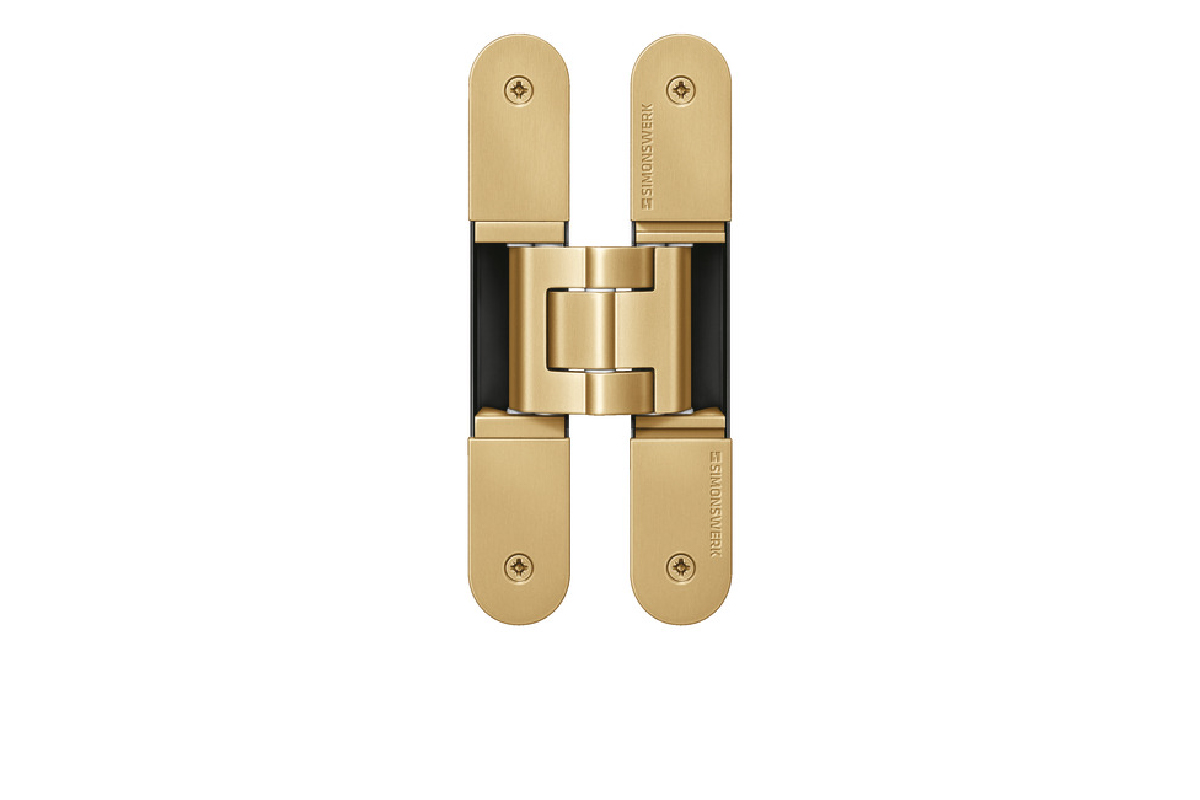

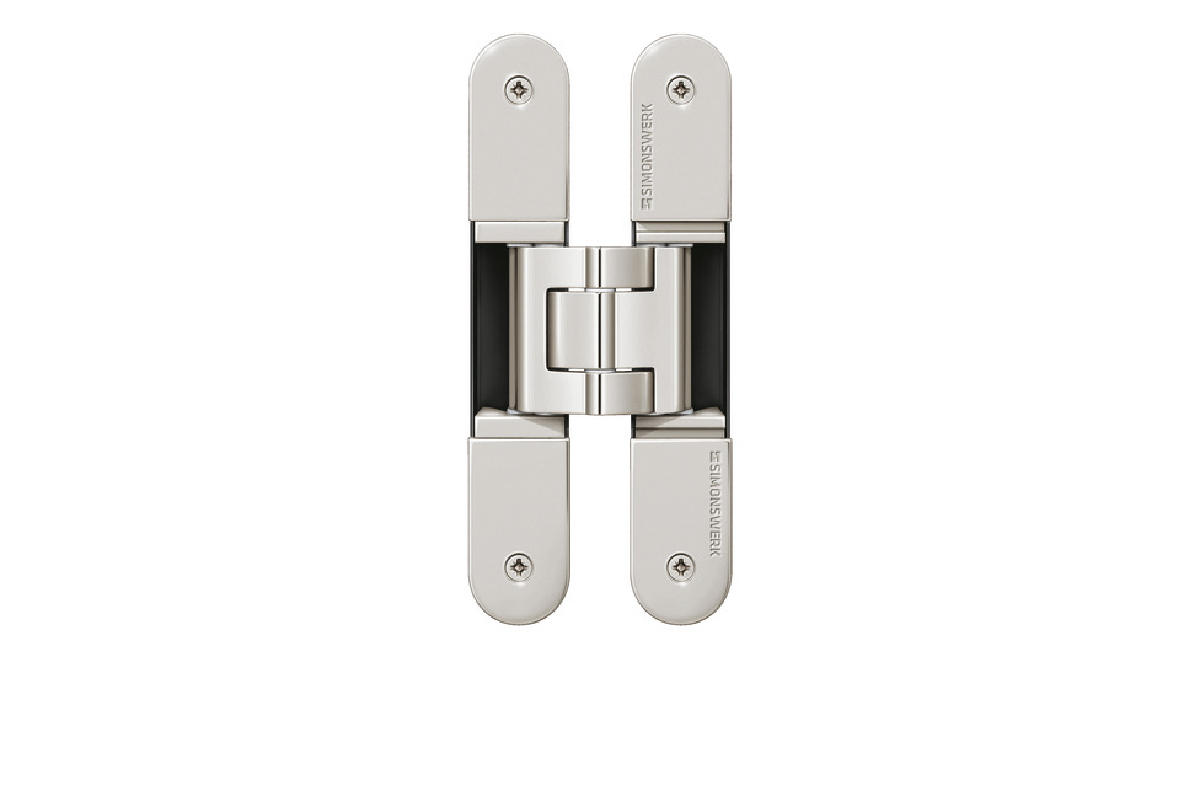

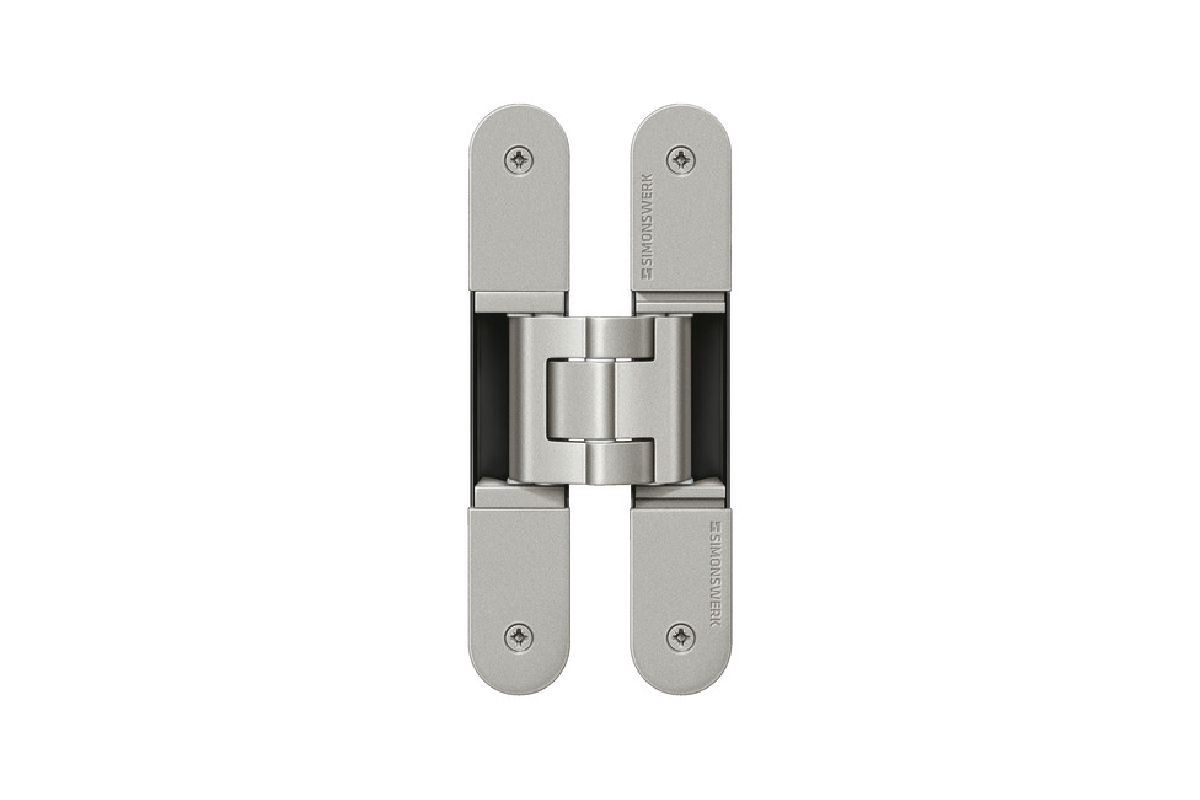

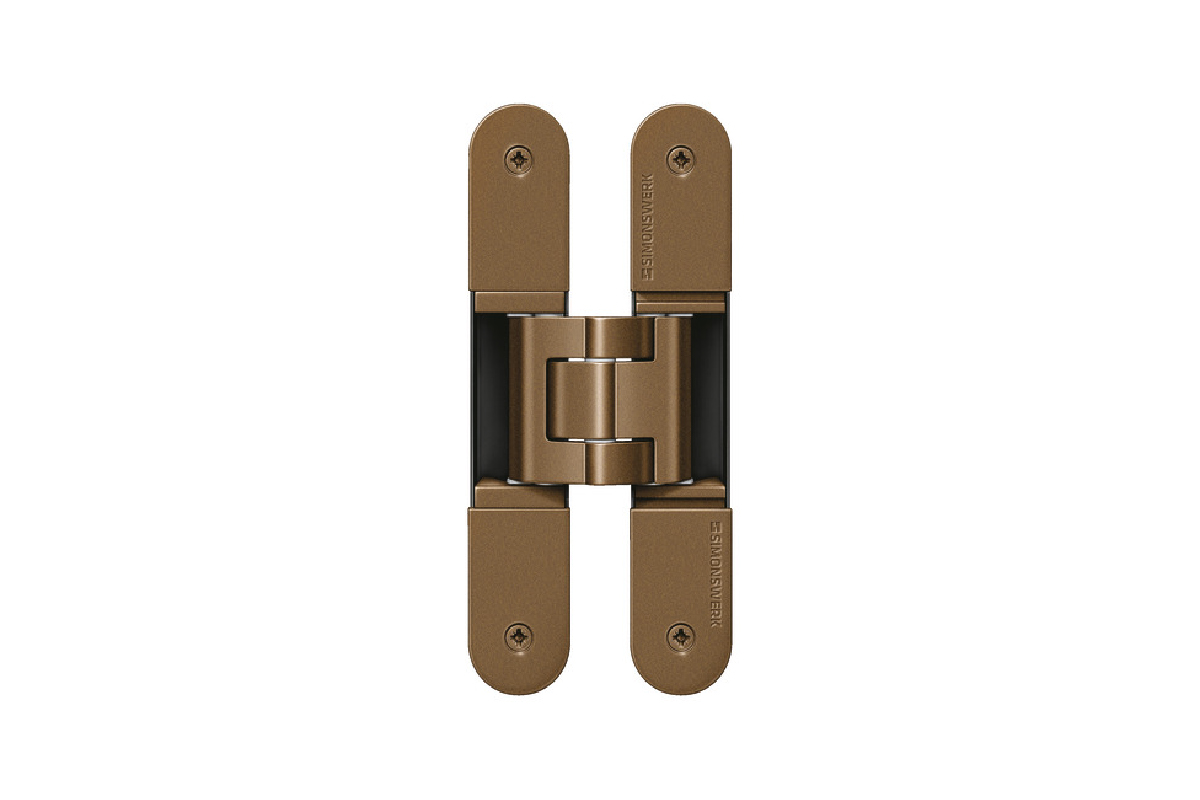

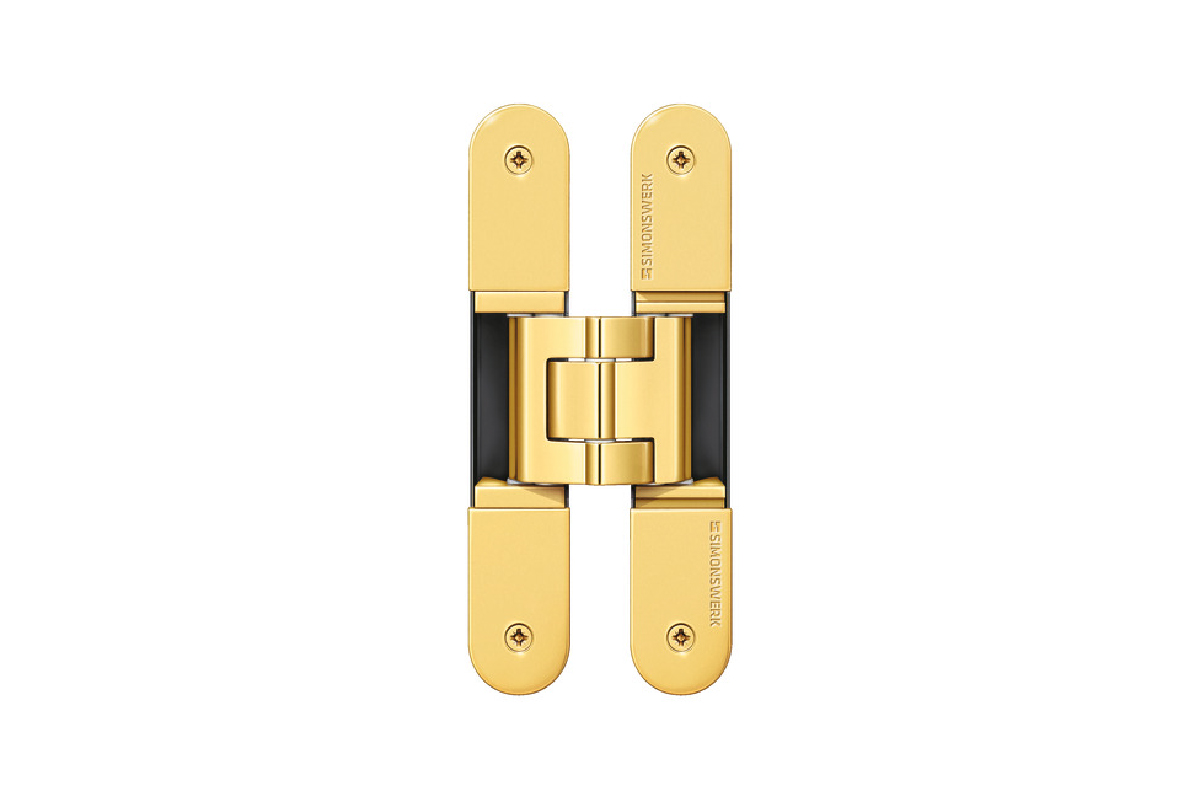

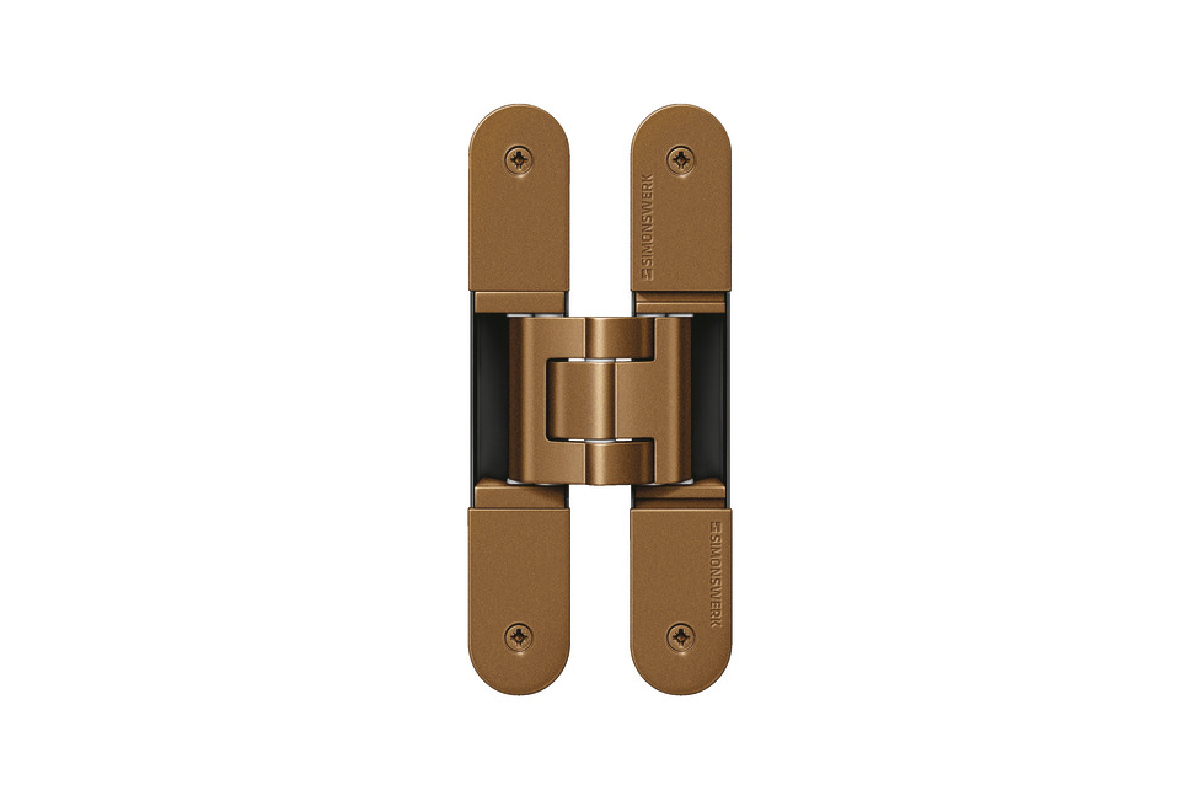

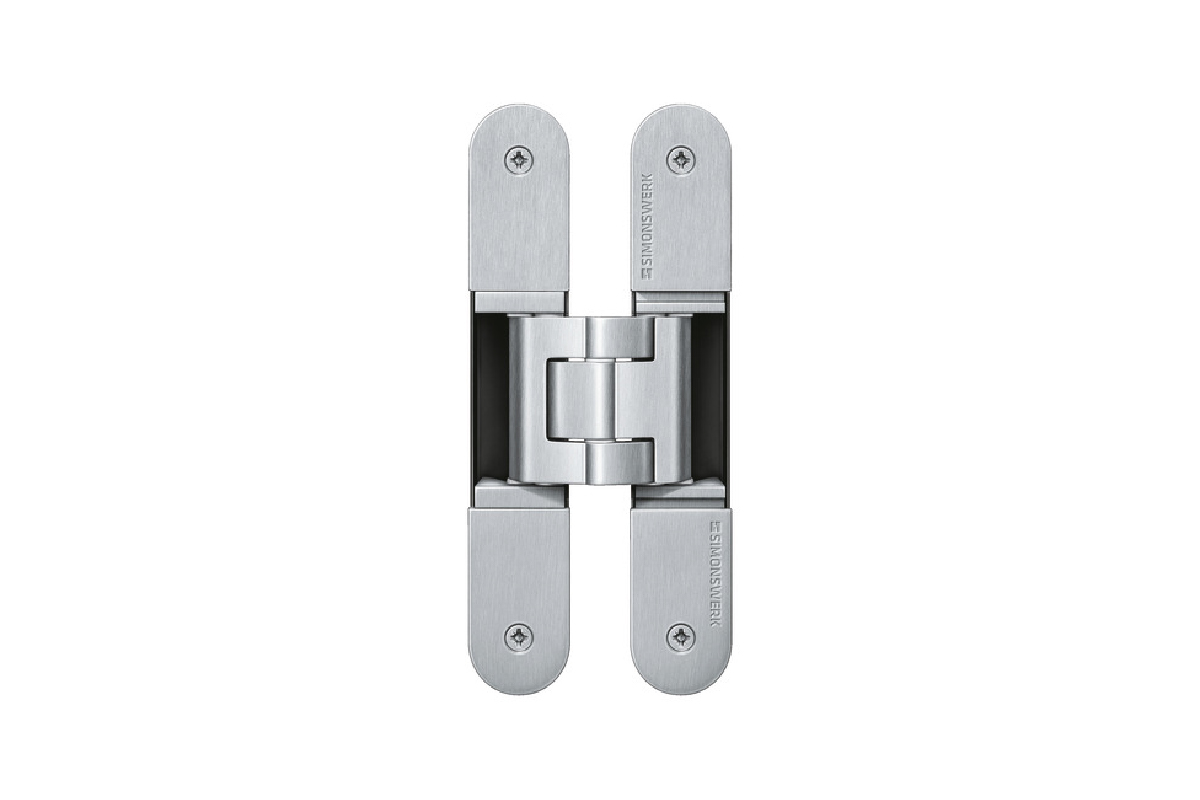

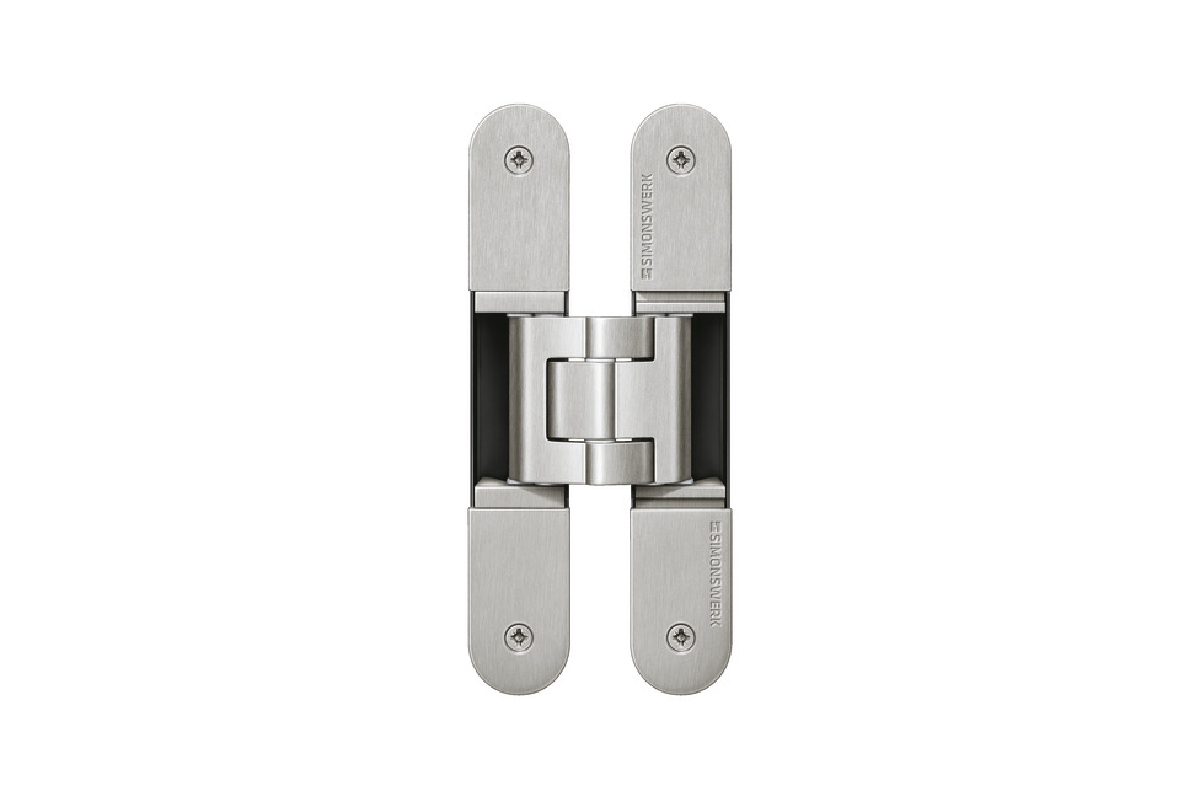

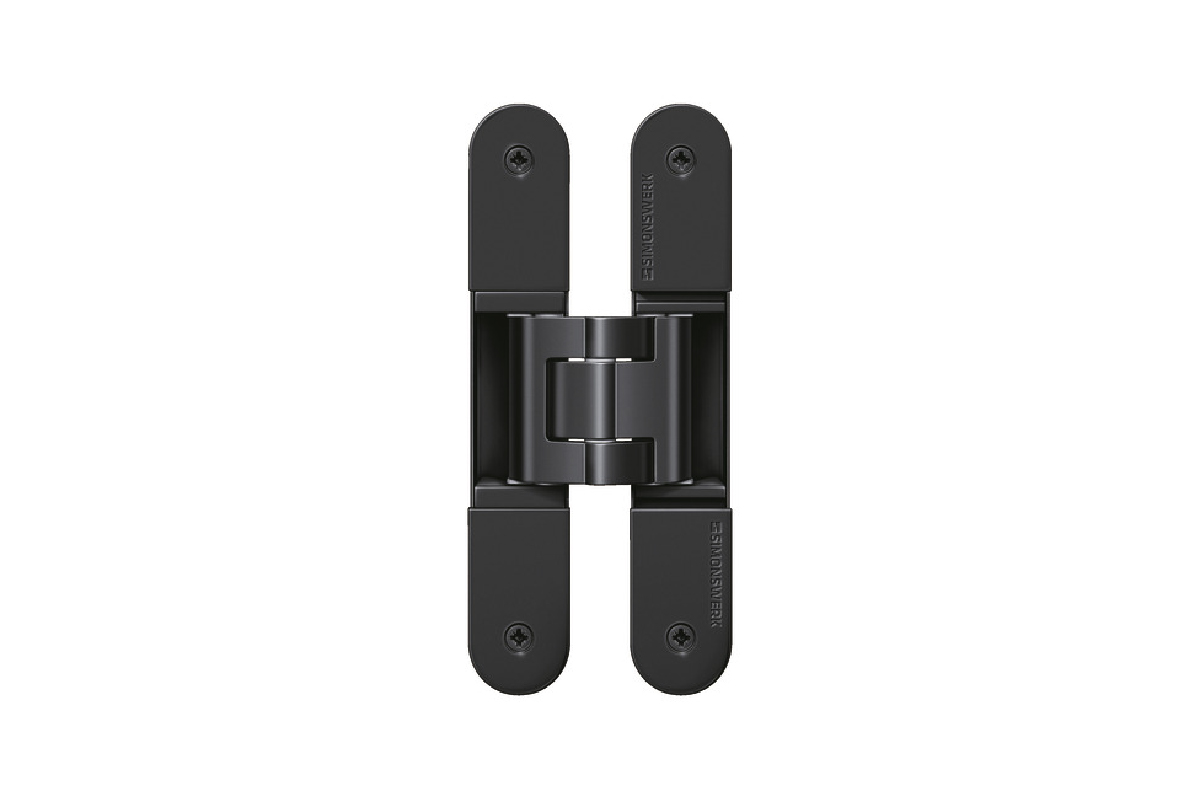

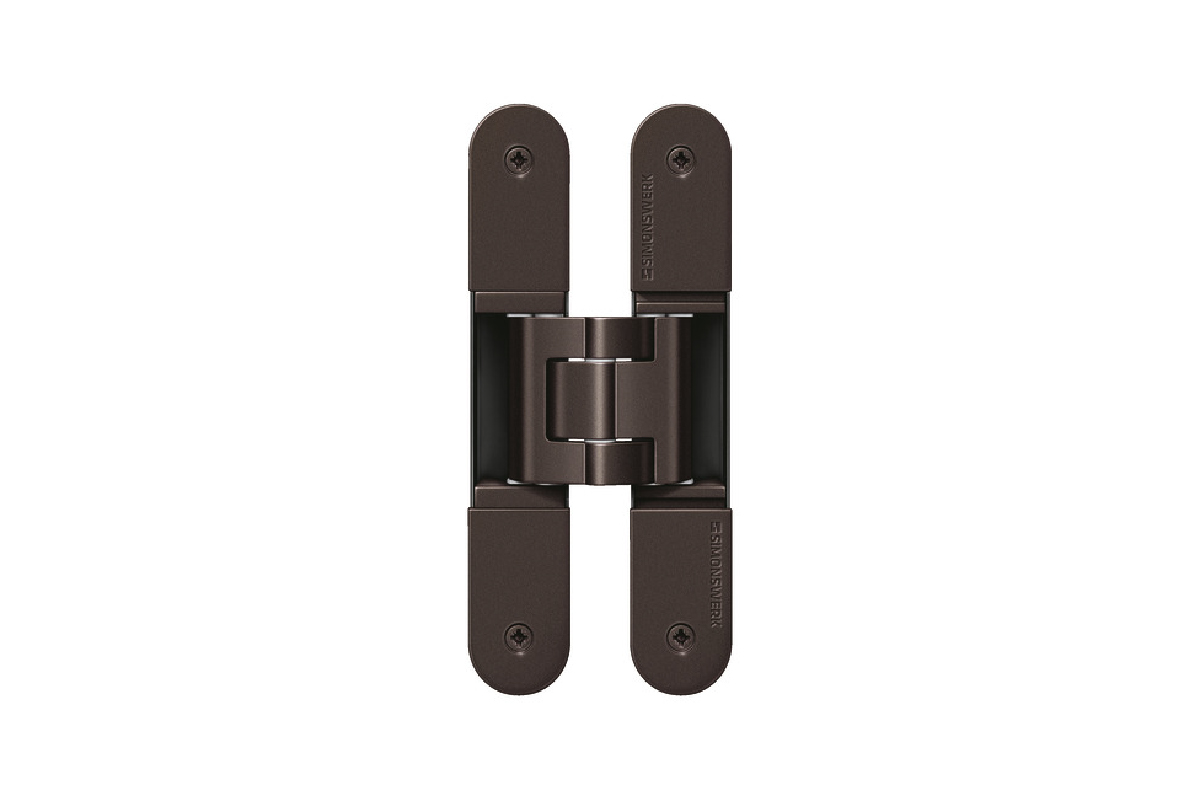

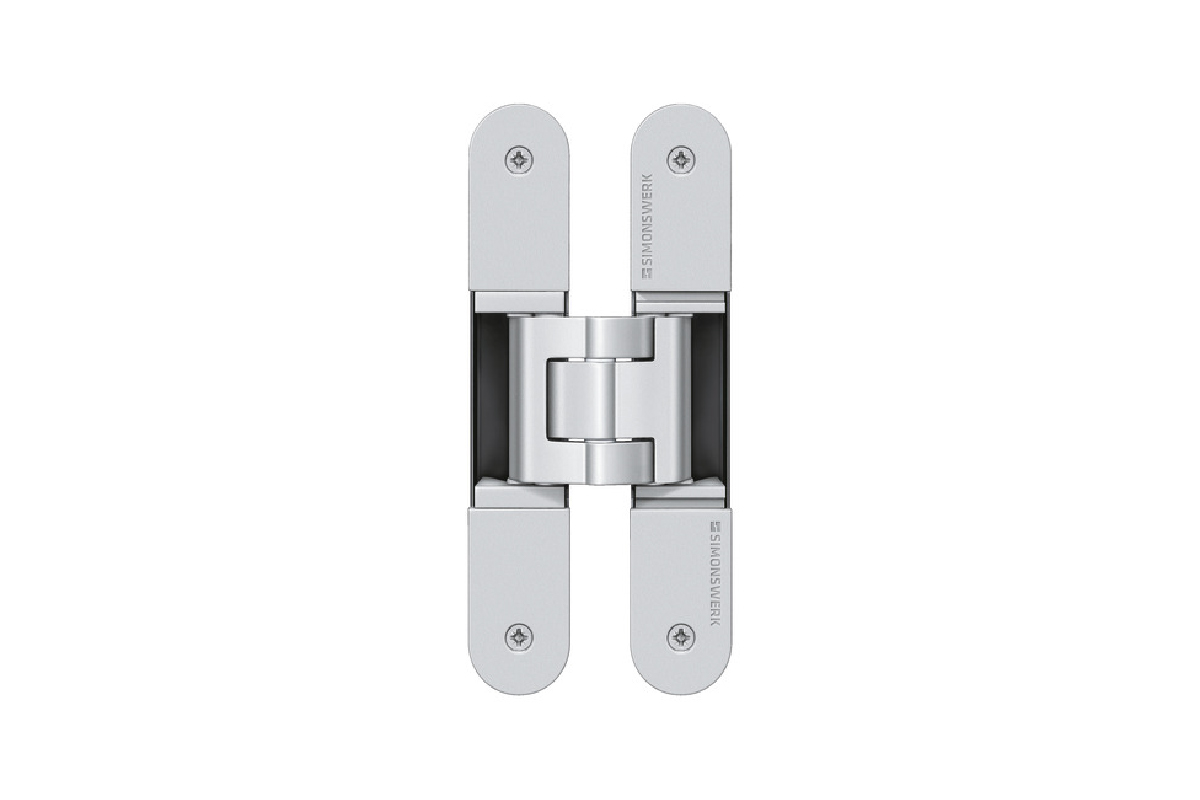

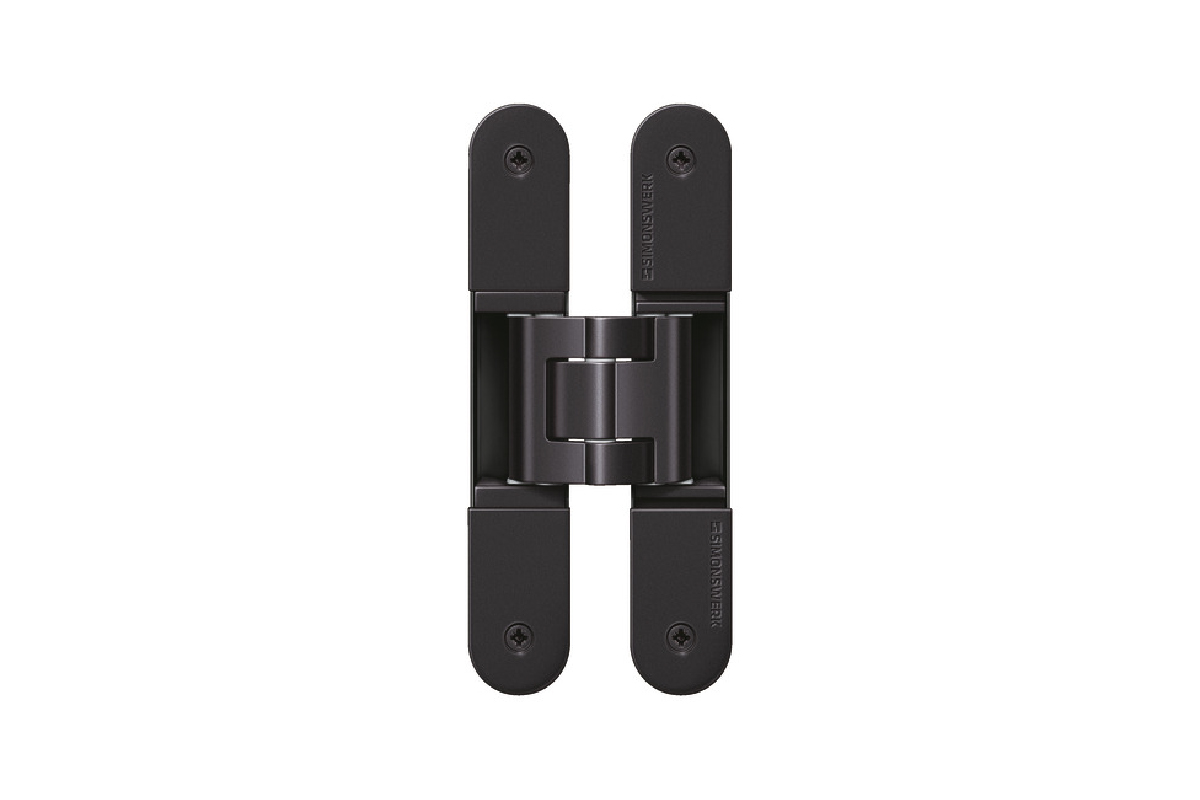

Achieve a sleek, uninterrupted aesthetic with the TECTUS TE 240 3D concealed hinge. Perfect for flush residential doors, this system disappears completely when closed, creating clean lines. Enjoy effortless, precise 3D adjustment for perfect alignment, and a 180° opening angle for full access. Designed for timber, steel, or aluminum frames, it combines sophisticated design with robust functionality for modern spaces.
| Load Capacity | 60.0 kg (132.0 lbs.) |

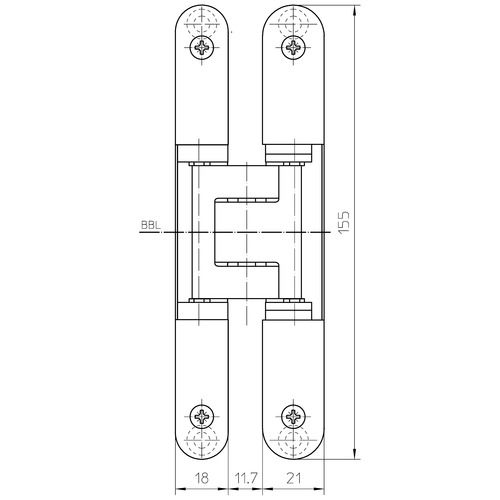

| Overall Length | 155.0 mm (6.102″) |
| Width (door part) | 18.0 mm (0.709″) |
| Width (frame part) | 21.0 mm (0.827″) |
| Cutter Diameter | 16.0 mm |
| Collar Ring Diameter | 30.0 mm |
| Opening Angle | 180° |
