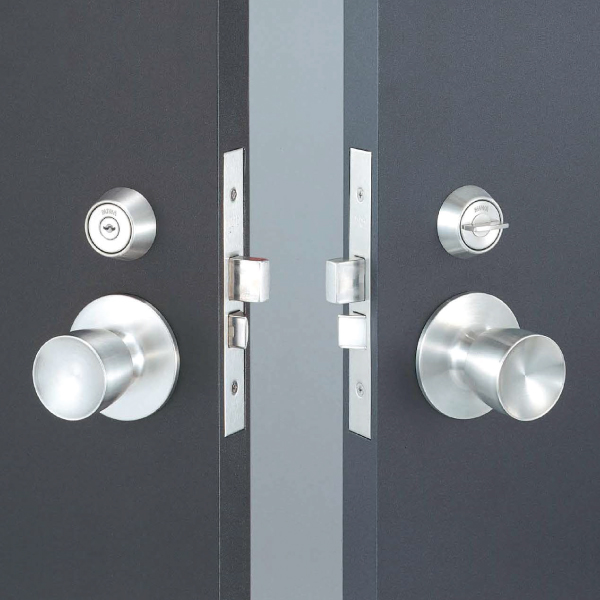

MA Series

PRODUCT INFORMATION

Outstanding at preventing unauthorized entry,
and highly durable

• Combines the outstanding strength and durablility of a
  mortise lock with easy-to-handle size. It is especially
  effective for front entrances and offices, as well as a wide
  range of other uses.

Model MA＊-6(with emergency opening device)

• These models have an emergency opening device which
  allows the door to be opened from the outside with a coin
  in case of an emergency. This model is suitable for toilets,
  bathrooms, powder rooms, etc.

Model MA＊-8(with emergency opening device
and indicator)

• These model indicate by means of red panel when the interior is occupied. In case of emergency you can unlock the door from the outside using a coin.

A flush-cup handle may be mounted in place of
a knob.

• MAC＊-□ for a single-side knob or flush-cup handle.
  MACC-□ for flush-cup handles on both sides.
  MACUC-□ for flush-cup handles on both sides.
  The MACUC model has flush-cup handles to prevent finger injuries.

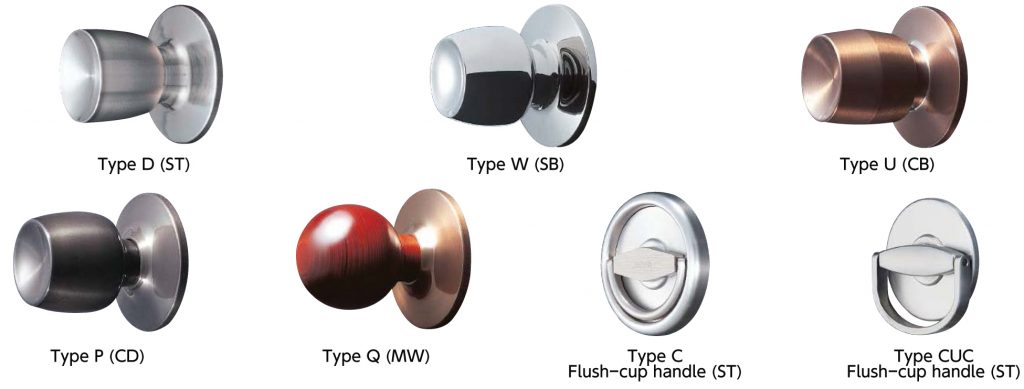

KNOB DESIGNS

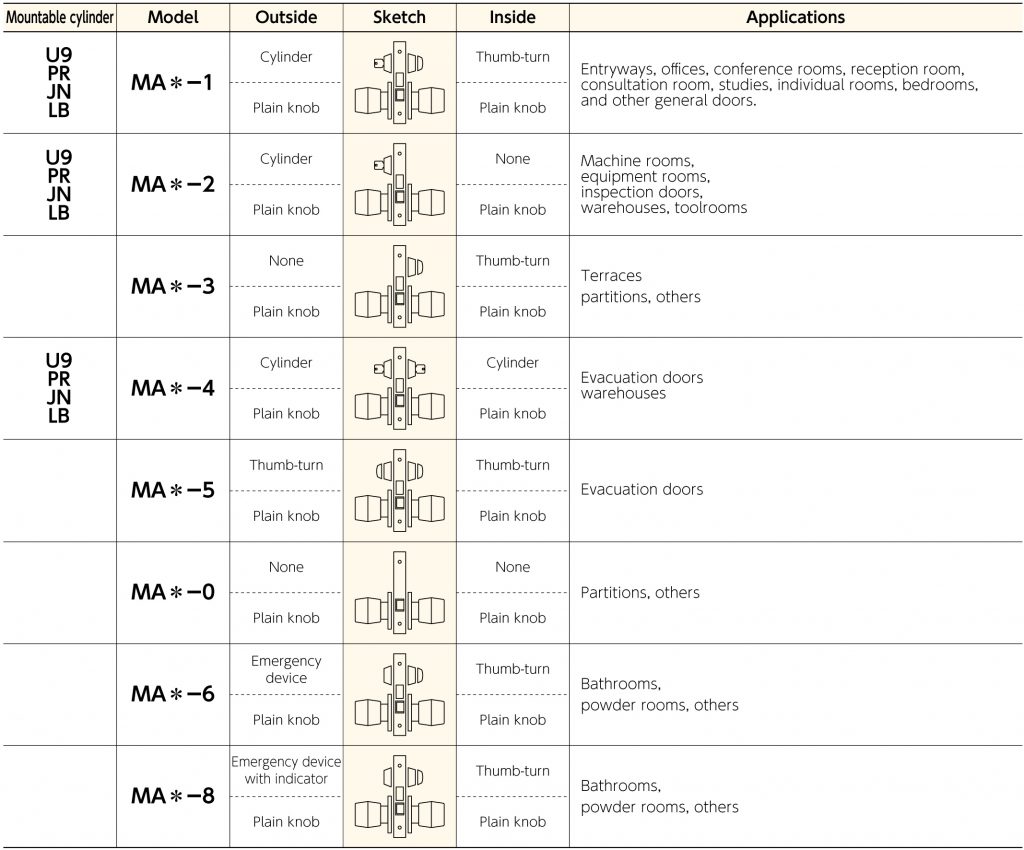

FUNCTIONS

SPECIFICATIONS

• Backset (mM) : 64・76・100
• Door thickness range (mM) : 29～33・33～42・42～50・50～58・58～66
  Knob designs P and Q
  ：29～33・33～37・37～42・42～46・46～50
  50～54・54～58・58～62・62～66

Drawing
