7100 Series Rim Ttpe


Specifications

Material :
Push bar – Steel pressed or stainless steel pressed
Head Cover – Steel pressed or stainless steel pressed
Spring – Stainless steel

Latch Bolt :
5/8′ throw, stainless steel

Dead Latch bolt :
9/16″, steel

Strike :
for 5/8″ stop.

Projection :
2-1/2″ maximum, 1-7/8″ pressed

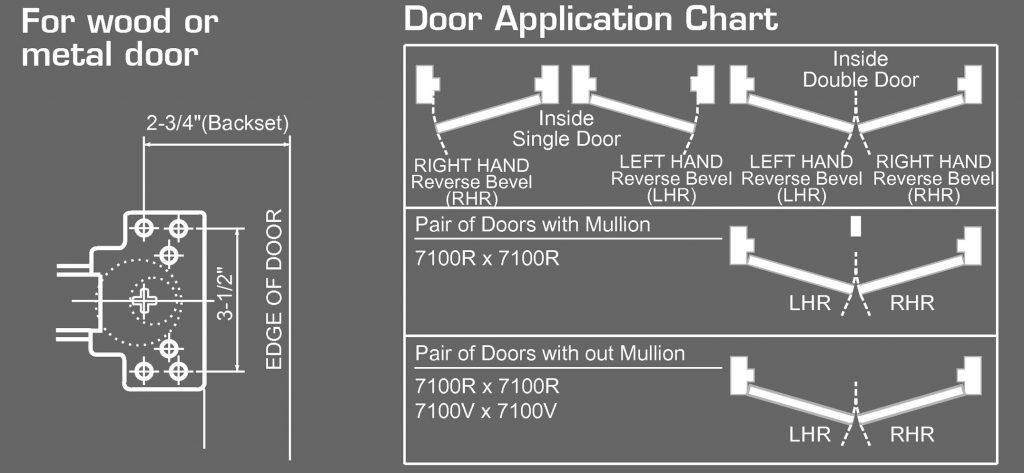

Reversible :
Non-handed, reversible for all functions and trims

For Door :
1-3/4″ thick of wood or metal door. specify thickness if other than 1-3/4″

door width :
3′ standard for door width of 2′-8′ to 3′-0″,4 standard for door width of 3′-8″ to 4′-0″

Stile :
4-1/4″ minimum.

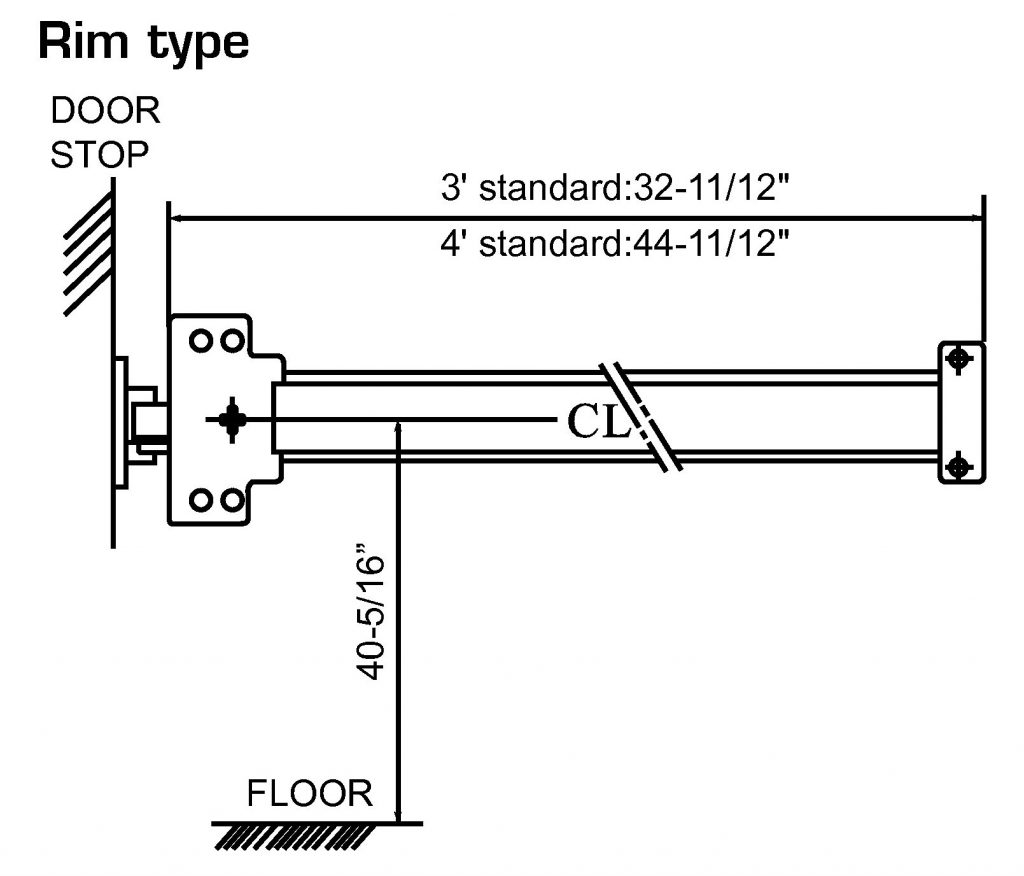

Mounting height :
40-5/16″ from CL to finished floor recommended

Mounting :
Furnished standard with sheet metal & machine screws or SNB as option

Cylinders :
For trim, knob, lever & thumb-piece type “schlage C” key way

Dogging :
1/4 turn, hex key dogging on non-fire labeled device

UL Listed :
For “panic hardware” and “UL”. labeled (3 hours) fire exit hardware

Ansi Standard :
A156.3 Grade 1

Operation :
inside by slight pressure on any point of the push bar all time

Head Cover :
Big 8-1/2″x2-3/4″x2-1/2″(216mm  x 68.3 x 62mm) &
Smail 6-1/3″x2-3/4″x2-1/2″(160mm x 68.2mm x 60mm)

Standard Finishes :
us26, us26D, us32D (or other finishes upon request & discussion)
