HERCULE 9040


CAPACITY/DOOR :_400 kg max.
TRACK :__________9040
MOVEMENT :______Straight

  • Electrolytic protection of all hangers
  • For fire doors: Hangers 9242 S and 9242 SL completely made of steel and equipped with ball bearings
  • Hangers designed for automatic operated doors: 9242 SE
  • For special applications: « L version » hangers with a 70 mm longer screw

capacity per door

In case of an automatic operations use, please divide the capacity by 2

Contact Now

Description

HERCULE 9040

PRODUCT INFORMATION


CAPACITY/DOOR :_400 kg max.
TRACK :__________9040
MOVEMENT :______Straight

  • Electrolytic protection of all hangers
  • For fire doors: Hangers 9242 S and 9242 SL completely made of steel and equipped with ball bearings
  • Hangers designed for automatic operated doors: 9242 SE
  • For special applications: « L version » hangers with a 70 mm longer screw

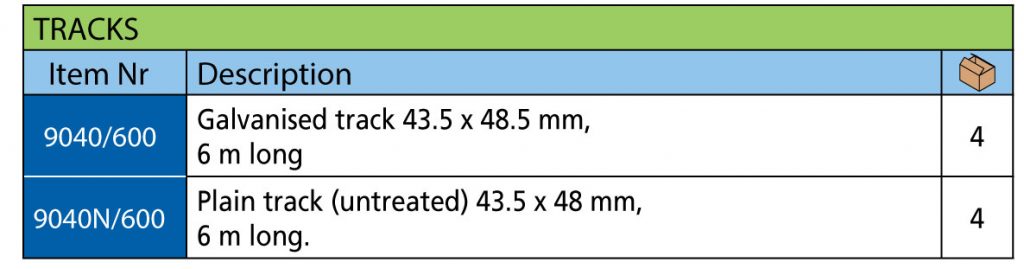

TRACKS

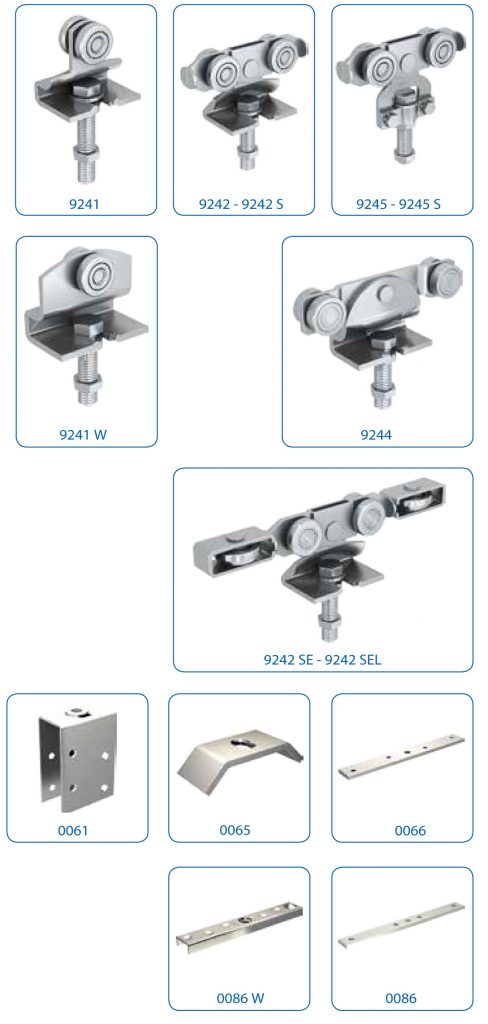

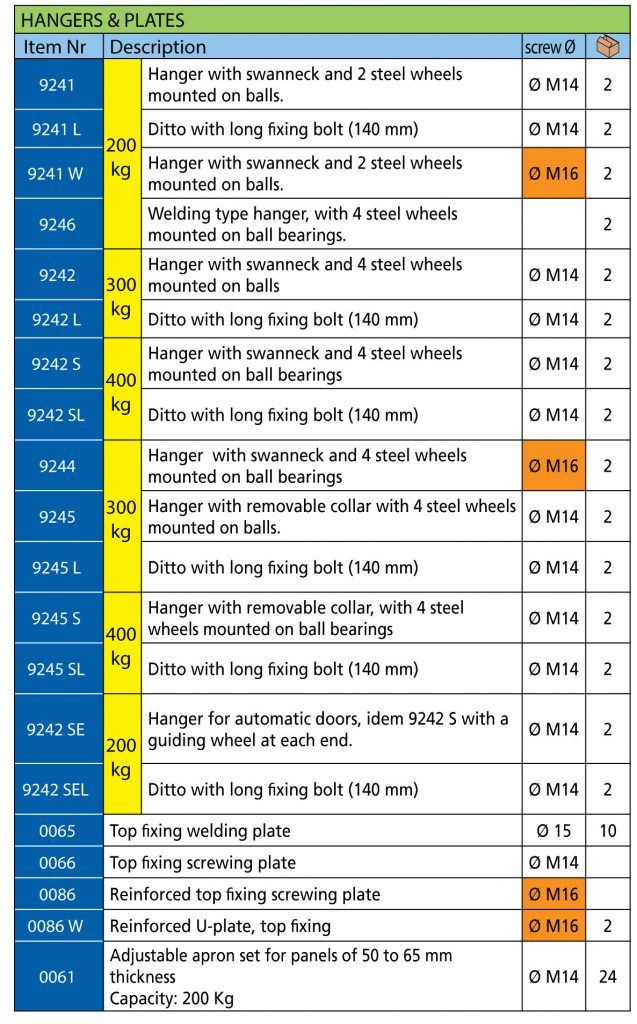

HANGERS & PLATES

capacity per door

In case of an automatic operations use, please divide the capacity by 2

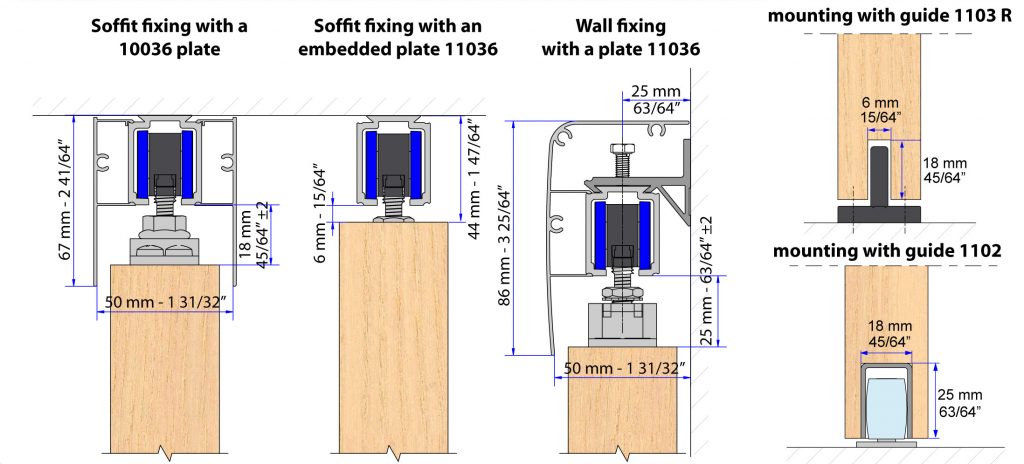

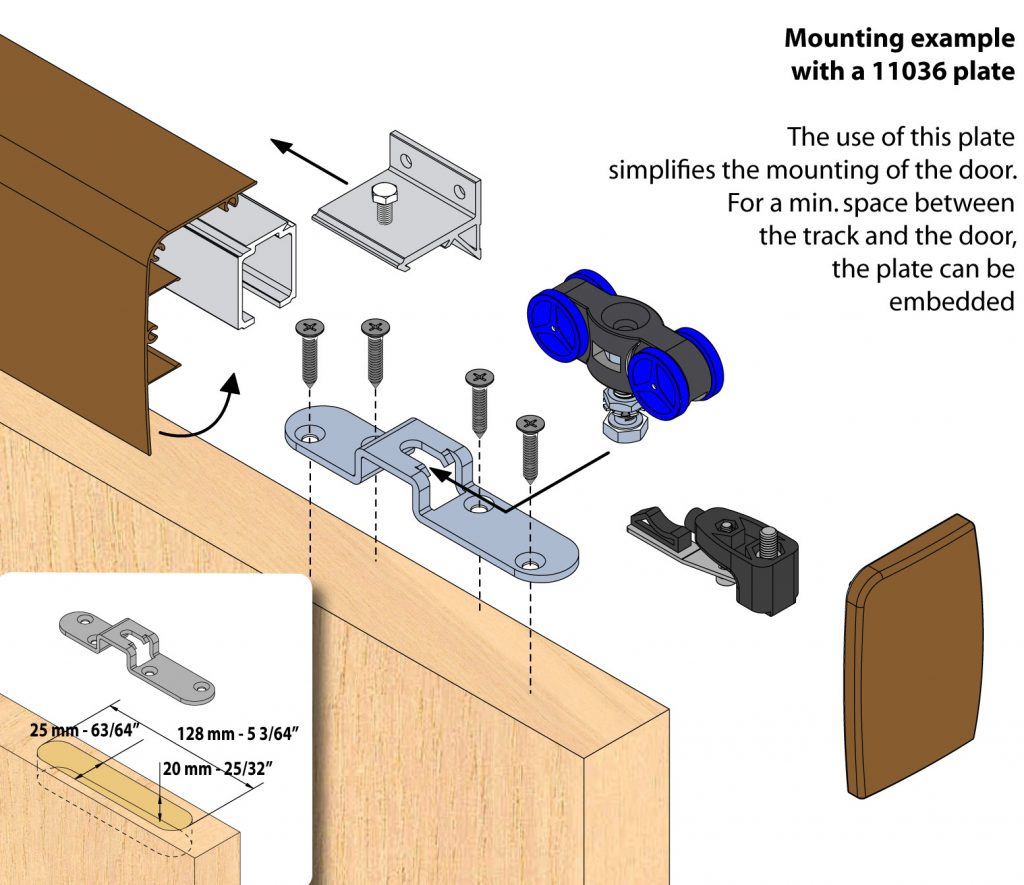

DRAWING
