LIN-X800

MONOFLAT LIN-X HINGE

Features

  • Innovative movement keeps doors discretely out of the way.
    Door closes flush with surrounding walls for a sleek and clean design.
    No need to do special processing on any wall for grooves or rails.
    Can be used on aluminium frames (if the frame has a thickness over 120 mm).
  • Whether open or closed, door stays out of the way
    Compared to regular swing doors, has a small radius allowing the space in front of the door to be used effectively.
  • Opens fully for access to entire cabinet. Whether installing cabinets or just getting access, the entire cabinet interior
    is easily accessible.

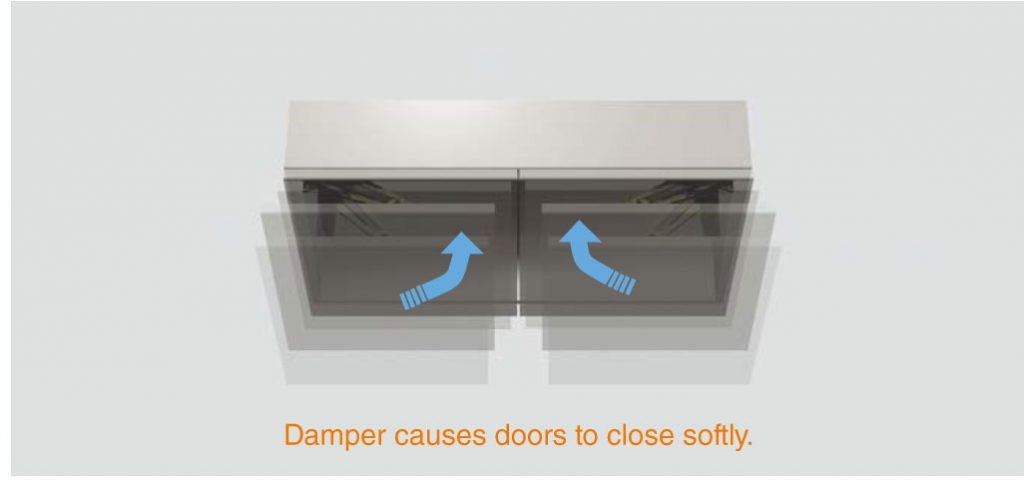

  • Built-in soft close mechanism When the door closes, the internal damper will cause the door to close softly,
    preventing slamming.
  • 4 Way adjustment post installation Can be adjusted vertically, horizontally, depth or paralel.

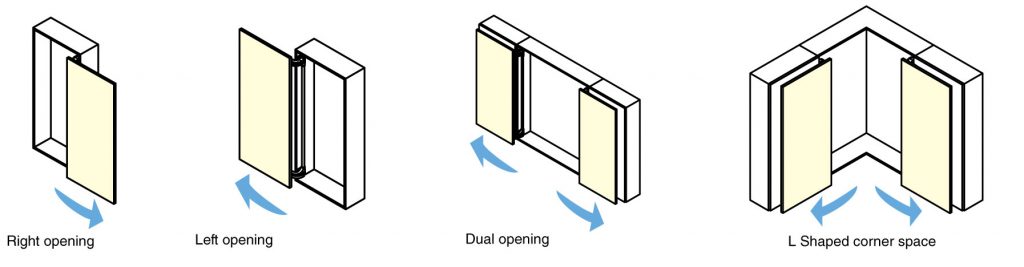

  • Wide amount of applicable cabinets Can be used on dual opening, single opening cabinets. Can also be used on L shaped corner spaces.



Parts Included

  • OTruss head tapping screw 6*25
  • Truss head screw M5 × 10
  • M5 Square Nut
  • One end mouth wrench
