Description

MLC-100 NON-MAGNETIC TOUCH LATCH

PRODUCT INFORMATION

Features

• Push latch with long stroke
• One push open/close operation removes the need for handles and pulls.
• Non-magnetic type
• Floating strike can automatically adjust position ±2mm vertically and ±3.5mm horizontally to fit into counter plate.
• Using the distance plate (sold separately), the installation position of the body can be adjusted
• Also available is the heat resistant type MLC-HT130BL with a 40mm stroke

Parts Included

• Truss head tapping screw 4×16 (SUS)

Recommended Screw

• M4 pan or truss head screw

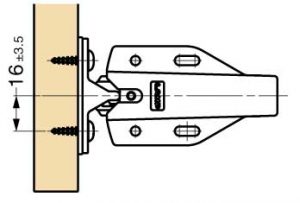

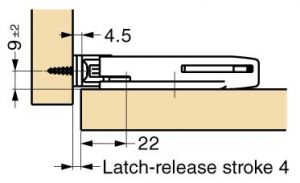

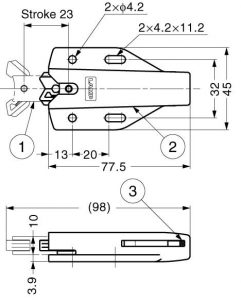

DRAWING
