The HETTICH AvanTech YOU Drawer System (H187mm, L450mm) is engineered for those who demand uncompromising quality and complete design flexibility. This taller 187mm drawer height is perfectly suited for accommodating larger kitchen utensils, taller bottles, bulkier pantry items, or substantial office supplies, ensuring everything has its designated, easily accessible place. The 450mm length provides ample depth for efficient organization, while the broad 10kg to 40kg capacity range ensures you can confidently store a wide variety of contents, from everyday essentials to heavier household goods, all gliding effortlessly.
Set comprises:
| System colour | anthracite |
| Nominal length | 450 mm |
| Design | With drawer front connector for knocking in |
| Drawer type | double walled |

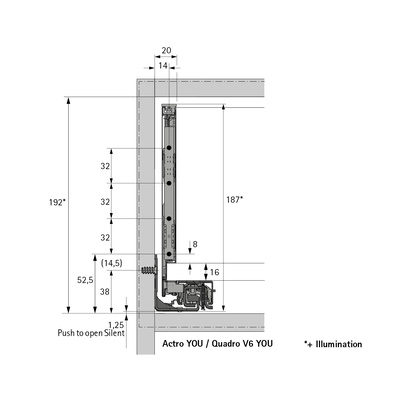

| System height | 187 |
| Variants | Components |
| Min. installed depth | 453 mm |
| Mounting side | left and right |
| Material | steel |
| Components | Drawer side profiles Drawer side profile set |
| EAN | 4023149329265 |
| Order no. | 9318795 |
| PU | 1 ea. |
Set comprises:
Advice:
| Nominal length | 450 |
| Colour | anthracite |

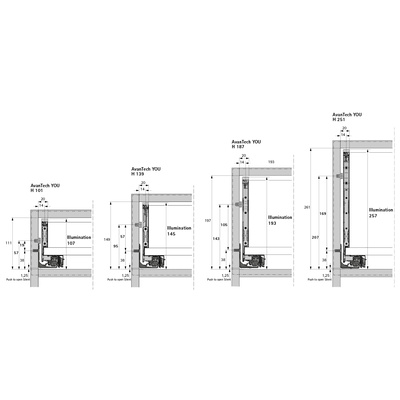

| System height | 101 139 187 251 |
| Variants | Components |
| Nominal length | 450 mm |
| Min. installed depth | 453 mm |
| Components | Design profiles Accessories Lighting |
| EAN | 4023149344107 |
| Order no. | 9326926 |
| PU | 1 ea. |
Advice:
| Load class | L (40 kg) |
| Nominal length | 450 mm |
| Mounting side | left |
| User friendly features | Silent System compatible with Push to open Silent |
| Variants | Components |
| Type of drawer runner | Full extension runner |
| Min. installed depth | 453 mm |
| Installed width (cabinet body side thickness) | EB 21 (drawer side profile thickness ≤ 16mm) |
| Material | steel |
| Components | Drawer runners |
| EAN | 4023149326141 |
| Order no. | 9318177 |
| PU | 10 ea. |
Set comprises:
| Application | AvanTech YOU / Actro YOU Wooden drawer / Actro 5D |
| Nominal length (mm) | 350 380 400 420 450 480 500 520 550 580 600 |
| EAN | 4023149191480 |
| Order no. | 9257892 |
| PU | 1 ea. |
| Variants | Components |
| User friendly features | Push to open Silent |
| Mounting side | left and right |
| Material | plastic / metal |
| Components | Accessories |
| Colour | anthracite |
| Finish | with hettich logo |
| Drawer type | double walled |
| System colour | silver white anthracite |
| Variants | Components |
| Mounting side | left or right |
| Material | plastic |
| Components | Branding clip Accessories |
| EAN | 4023149601842 |
| Order no. | 9257705 |
| PU | 200 ea. |
| Length | 2,000 mm |
| EAN | 4023149089336 |
| Order no. | 9236718 |
| PU | 100 ea. |
| System / drawer side profile height | 78 94 126 186/ 94 186/126 218/ 94 218/126 250/ 94 250/126 282/ 94 282/126 |
| User friendly features | Push to open Silent |
| Material | aluminium |
| Components | Accessories |
| Application | Actro 5D Actro Actro YOU Quadro 25 Quadro 4D V6 Quadro V6 Quadro V6+ Quadro V6 YOU Wooden drawer / Quadro V6 5D Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro 25 2D Wooden drawer / Quadro 25 YOU |
| EAN | 4023149064234 |
| Order no. | 9221295 |
| PU | 20 ea. |
| System / drawer side profile height | 78 94 126 186/ 94 186/126 218/ 94 218/126 250/ 94 250/126 282/ 94 282/126 |
| User friendly features | Push to open Silent |
| Material | plastic |
| Components | Accessories |
| Application | Actro 5D Actro Actro YOU Quadro 25 Quadro 4D V6 Quadro V6 Quadro V6+ Quadro V6 YOU Wooden drawer / Quadro V6 5D Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro 25 2D Wooden drawer / Quadro 25 YOU |
| Colour | grey |
