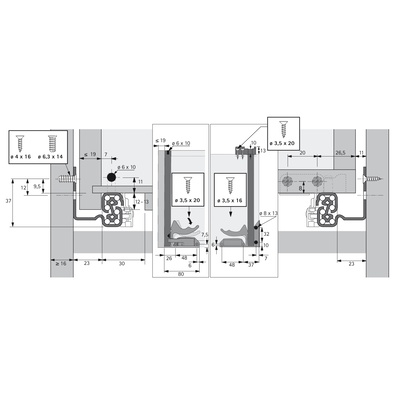

At the heart of this drawer set lies the HETTICH Quadro V6 concealed runner system. Unlike visible drawer slides, the Quadro V6 is ingeniously hidden beneath the drawer, preserving the clean lines and aesthetic integrity of your furniture. This design choice is a hallmark of luxury, ensuring that only the refined drawer front is on display. The “V6” signifies its advanced design, offering outstanding running properties. Drawers equipped with Quadro V6 runners glide open and close with a remarkably fluid and quiet motion, a testament to Hettich’s precision engineering. The integrated Silent System (soft-close mechanism) ensures that even with a gentle push, the drawer decelerates smoothly and closes softly, preventing slamming and extending the lifespan of your furniture.
Advice:
| Drawer length SKL | 450 mm |
| Load capacity kg | 30 kg |
| Hole spacing b1 | 256 mm |
| Nominal length | 450 mm |
| Mounting side | left |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Push to open |
| Minimum cabinet body depth KT | 463 mm |
| Type of installation | slide on installation |
| Installed width (side profile thickness) | EB 23 (drawer side profile thickness ≤ 19mm) |
| Components | Drawer runners |
| EAN | 4023149147708 |
| Order no. | 9246901 |
| PU | 10 ea. |
Advice:
| Drawer length SKL | 450 mm |
| Load capacity kg | 30 kg |
| Hole spacing b1 | 256 mm |
| Nominal length | 450 mm |
| Mounting side | right |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Push to open |
| Minimum cabinet body depth KT | 463 mm |
| Type of installation | slide on installation |
| Installed width (side profile thickness) | EB 23 (drawer side profile thickness ≤ 19mm) |
| Components | Drawer runners |
| EAN | 4023149147715 |
| Order no. | 9246902 |
| PU | 10 ea. |
| Application | Quadro V6 Quadro 25 |
| Mounting side | left and right |
| Type of runner | Accessories |
| Components | Accessories |
| Colour | black |
| EAN | 4023149496189 |
| Order no. | 9144597 |
| PU | 5 ea. |
Type A suitable for:
| Application | InnoTech Atira / Quadro V6+ Wooden drawer / Quadro V6 Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro 4D V6 Wooden drawer / Quadro V6 5D |
| EAN | 4023149064203 |
| Order no. | 9219966 |
| PU | 200 ea. |
| User friendly features | Push to open Silent |
| Material | plastic |
| Components | Accessories |
| Colour | grey |
| Length | 2,000 mm |
| EAN | 4023149089336 |
| Order no. | 9236718 |
| PU | 100 ea. |
| System / drawer side profile height | 78 94 126 186/ 94 186/126 218/ 94 218/126 250/ 94 250/126 282/ 94 282/126 |
| User friendly features | Push to open Silent |
| Material | aluminium |
| Components | Accessories |
| Application | Actro 5D Actro Actro YOU Quadro 25 Quadro 4D V6 Quadro V6 Quadro V6+ Quadro V6 YOU Wooden drawer / Quadro V6 5D Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro 25 2D Wooden drawer / Quadro 25 YOU |
| EAN | 4023149064234 |
| Order no. | 9221295 |
| PU | 20 ea. |
| System / drawer side profile height | 78 94 126 186/ 94 186/126 218/ 94 218/126 250/ 94 250/126 282/ 94 282/126 |
| User friendly features | Push to open Silent |
| Material | plastic |
| Components | Accessories |
| Application | Actro 5D Actro Actro YOU Quadro 25 Quadro 4D V6 Quadro V6 Quadro V6+ Quadro V6 YOU Wooden drawer / Quadro V6 5D Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro 25 2D Wooden drawer / Quadro 25 YOU |
| Colour | grey |
