The HETTICH AvanTech YOU Inlay Drawer Set is more than just a drawer; it’s a canvas for your creativity. At its core lies the revolutionary AvanTech YOU platform, renowned for its slim, purist 13mm drawer side profiles – a testament to minimalist design. The defining feature, however, is the Inlay capability. This allows you to seamlessly integrate materials of your choice – be it elegant glass, rich wood, natural stone, or any material up to 10mm thick – directly into the drawer side. Imagine a kitchen where drawer sides perfectly echo your countertop, or a living room where storage blends flawlessly with bespoke cabinetry. The possibilities are boundless.
Set comprises:
| System colour | white |
| Nominal length | 400 mm |
| Design | With drawer front connector for knocking in |
| Drawer type | double walled |

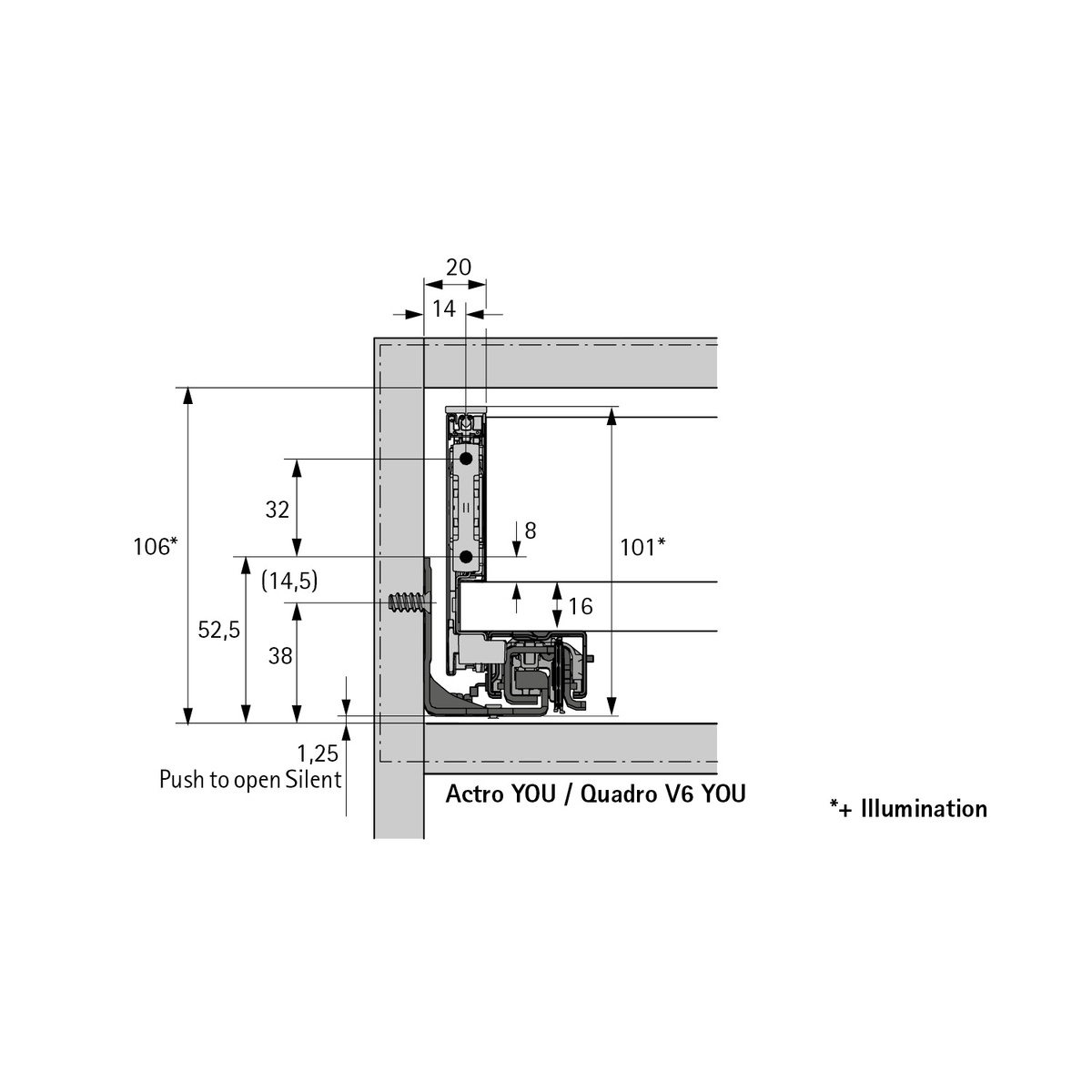

| System height | 101 |
| Variants | Components |
| Min. installed depth | 403 mm |
| Mounting side | left and right |
| Material | steel |
| Components | Drawer side profiles Drawer side profile set |
| EAN | 4023149328664 |
| Order no. | 9318718 |
| PU | 1 ea. |
| System colour | white |
| System height | 101 |
| Design | For drawer side profile without Illumination |
| Drawer type | double walled |
| Variants | Components |
| Cabinet body width | 200 mm – 1200 mm |
| Material | aluminium |
| Components | Fronts |
| EAN | 4023149746284 |
| Order no. | 9257273 |
| PU | 1 ea. |
Set comprises:
Advice:
| System colour | white |
| System height | 101 |
| Design | For drawer side profile without Illumination |
| Drawer type | double walled |
| Variants | Components |
| Mounting side | left and right |
| Cabinet body width | 200 mm – 1200 mm |
| Material | plastic steel |
| Components | Fronts Accessories |
| Order no. | 9257615 |
| PU | 1 ea. |
Advice:
| Load class | M (30 kg) |
| Nominal length | 400 mm |
| Mounting side | left and right |
| User friendly features | Silent System compatible with Push to open Silent |
| Drawer length SKL | 390 |
| Load capacity kg | 30 kg |
| Installed width EB | 21 |

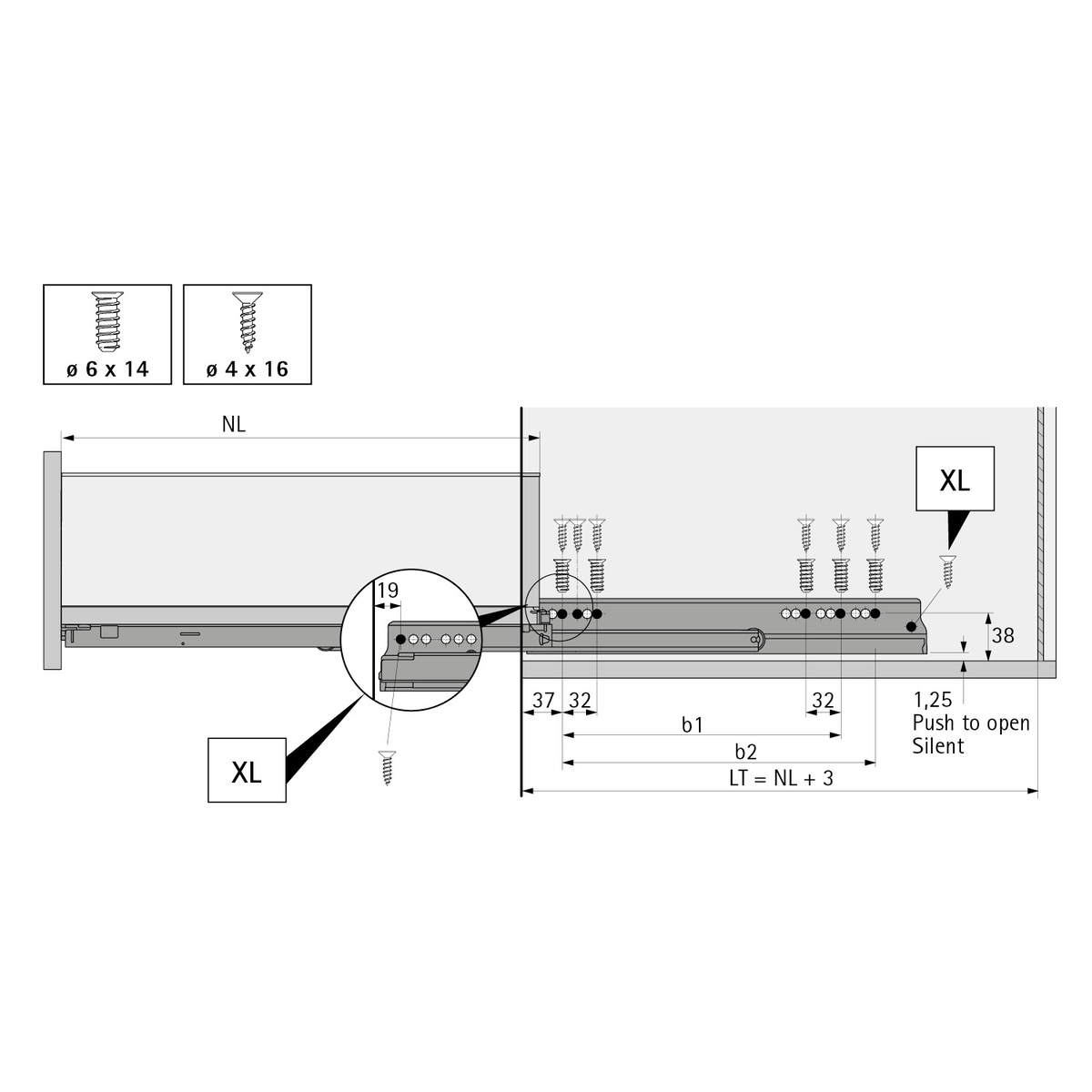

| Hole spacing b1 | 224 mm |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| Min. installed depth | 403 mm |
| Type of installation | for sliding on |
| Installed width (side profile thickness) | EB 21 (drawer side profile thickness ≤ 16mm) |
| Components | Drawer runners |
| EAN | 4023149333682 |
| Order no. | 9319198 |
| PU | 1 ea. |
| Variants | Components |
| Material | steel |
Set comprises:
| Application | AvanTech YOU / Quadro V6 YOU Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro V6 5D |
| Nominal length (mm) | 400 450 500 550 600 |
| EAN | 4023149191503 |
| Order no. | 9257896 |
| PU | 1 ea. |
| Variants | Components |
| User friendly features | Push to open Silent |
| Material | plastic / metal |
| Components | Accessories |
| Colour | white |
| Finish | with hettich logo |
| Drawer type | double walled |
| System colour | silver white anthracite |
| Variants | Components |
| Mounting side | left or right |
| Material | plastic |
| Components | Branding clip Accessories |
| EAN | 4023149601132 |
| Order no. | 9257704 |
| PU | 200 ea. |
| Length | 2,000 mm |
| EAN | 4023149089336 |
| Order no. | 9236718 |
| PU | 100 ea. |
| System / drawer side profile height | 78 94 126 186/ 94 186/126 218/ 94 218/126 250/ 94 250/126 282/ 94 282/126 |
| User friendly features | Push to open Silent |
| Material | aluminium |
| Components | Accessories |
| Application | Actro 5D Actro Actro YOU Quadro 25 Quadro 4D V6 Quadro V6 Quadro V6+ Quadro V6 YOU Wooden drawer / Quadro V6 5D Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro 25 2D Wooden drawer / Quadro 25 YOU |
| EAN | 4023149064234 |
| Order no. | 9221295 |
| PU | 20 ea. |
| System / drawer side profile height | 78 94 126 186/ 94 186/126 218/ 94 218/126 250/ 94 250/126 282/ 94 282/126 |
| User friendly features | Push to open Silent |
| Material | plastic |
| Components | Accessories |
| Application | Actro 5D Actro Actro YOU Quadro 25 Quadro 4D V6 Quadro V6 Quadro V6+ Quadro V6 YOU Wooden drawer / Quadro V6 5D Wooden drawer / Quadro V6 YOU Wooden drawer / Quadro 25 2D Wooden drawer / Quadro 25 YOU |
| Colour | grey |
