Choosing the HES3D-70 means selecting a component that meets the most demanding global standards for quality and performance. From its Zinc Alloy construction to its meticulous finishes (Dull Chrome, Dull Nickel, Black), the HES3D-70 is engineered to be a durable and valuable asset to any project. It is not merely hardware; it is the defining feature of movement—a silent promise of long-term luxury and operational perfection.
| Item Code | Item Name | Colour |
| 170-035-441 | HES3D-70DC | Silver |
| 170-035-442 | HES3D-70DN | Champagne Gold |
| 170-035-443 | HES3D-70BL | Black |

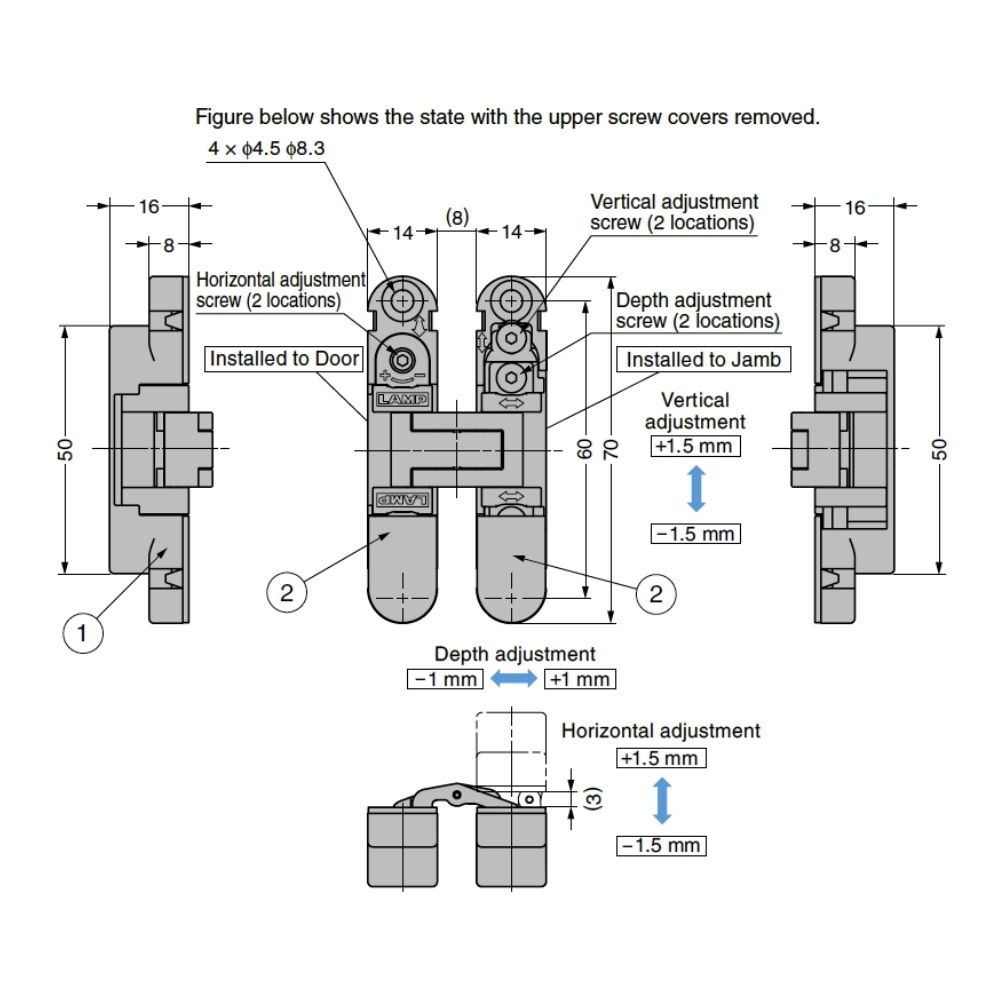

3-Way Micro-Adjustment
Delivers the highest precision required for minimal gap tolerance in custom joinery. The alignment mechanism is a staple of the entire HES3D range.
Slim Profile & Compact Size

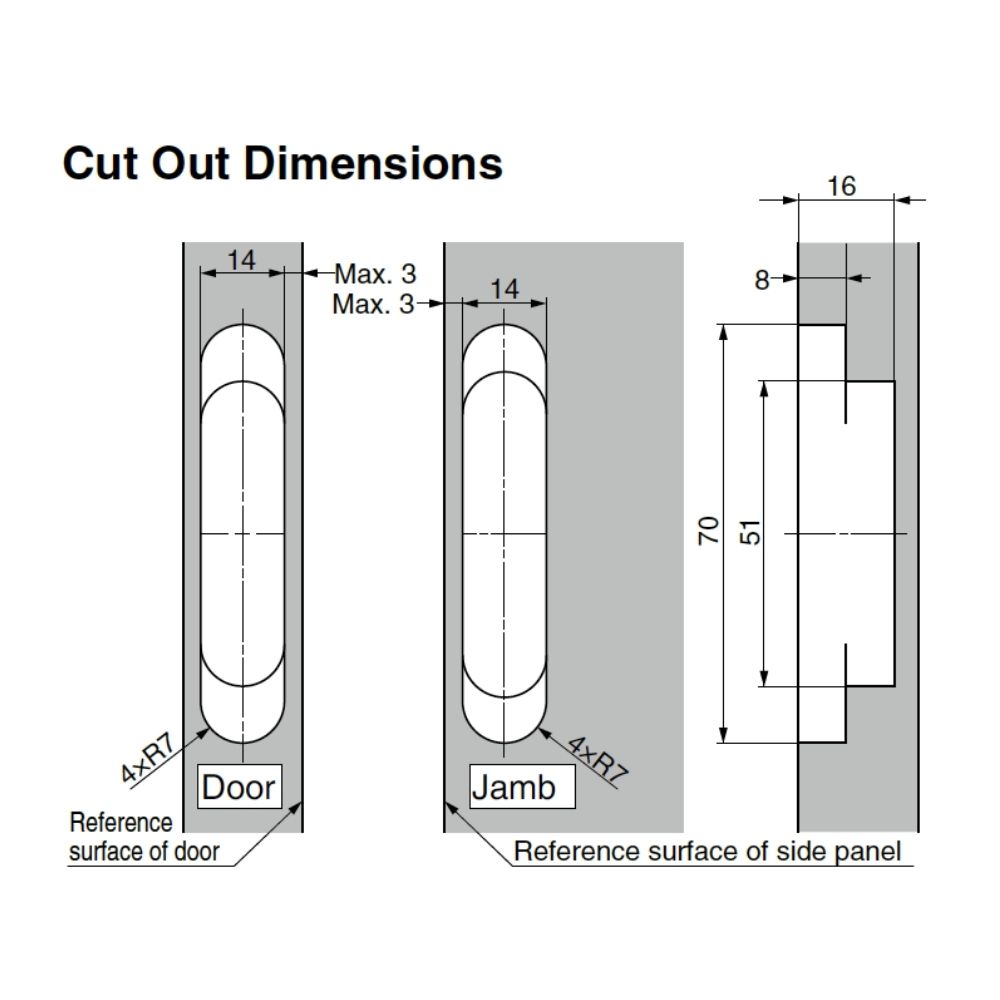

Its minimal bore depth and 70 mm length are ideal for applications where material thickness or space is a premium constraint.
High Load Capacity
Supports up to 12 kg (∼26.4 lbs) with 3 hinges on doors up to 1200 mm (47-1/4 in) high.
Seamless Aesthetic

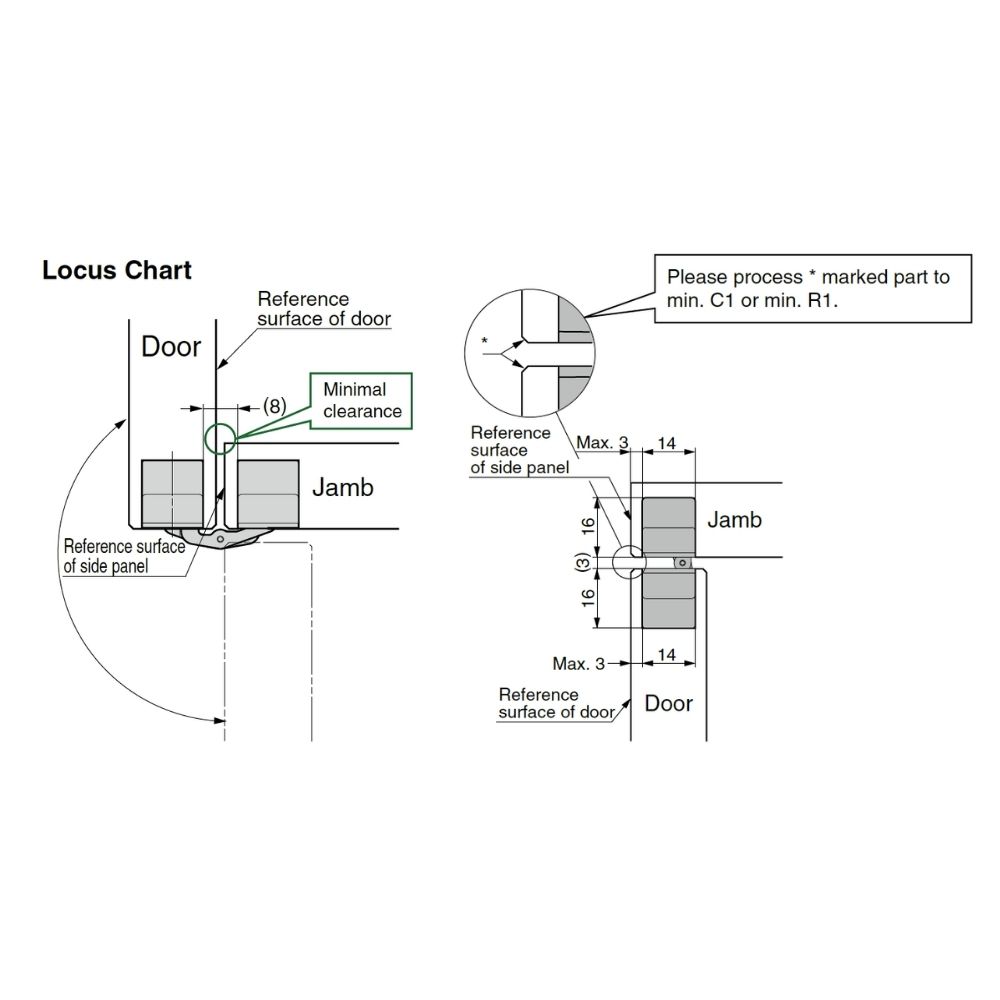

Opens to a full 180° for complete cabinet access, satisfying both modern design and functional utility standards.
| Door Width | Door Height | Door Thickness | Installation | Load Capacity (2 pcs) | Load Capacity (3 pcs) |
| Max. 600 mm | Max. 1200 mm | Min. 19 mm | Inset | 9 kg | 12 kg |
