HES3D-90 CONCEALED CABINET HINGE 3D ADJUSTABLE

|

HES3D-90

|

HES3D-90

|

HES3D-90

CONCEALED CABINET HINGE

The HES3D-90 is a masterpiece of minimalist engineering, embodying the core values of the LAMP brand. It is the perfect hardware solution for creating sleek, contemporary spaces that demand a clean, uninterrupted sightline.

HES3D-90

HES3D-90DC

HES3D-90DN

HES3D-90BK

CONCEALED CABINET HINGE

180° opening

Product Code:

Item Code	Item Name	Colour
170-029-221	HES3D-90DC	Silver
170-029-222	HES3D-90DN	Champagne Gold
170-029-588	HES3D-90BL	Black

Information

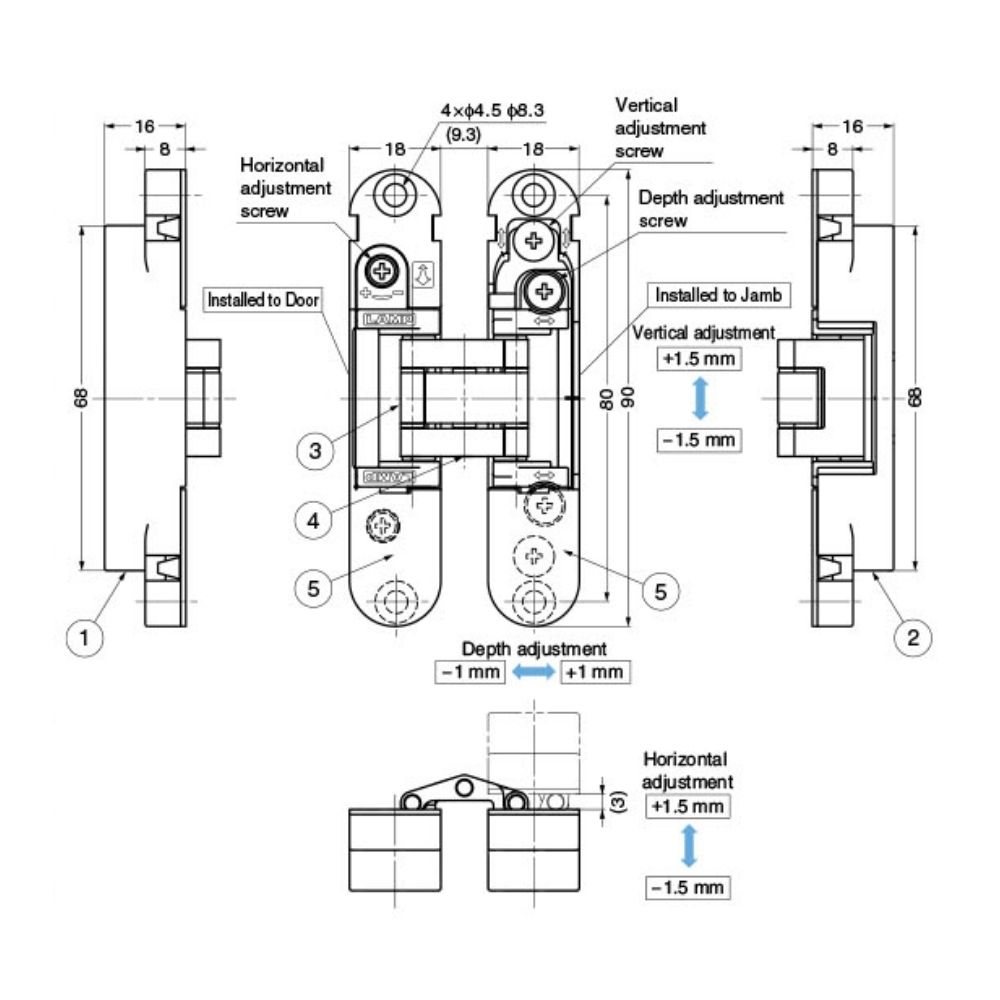

3-Way Adjustment Function
Provides the precision required to maintain a minimal, consistent gap (3 mm typically) between the door and frame.
Completely Concealed Design

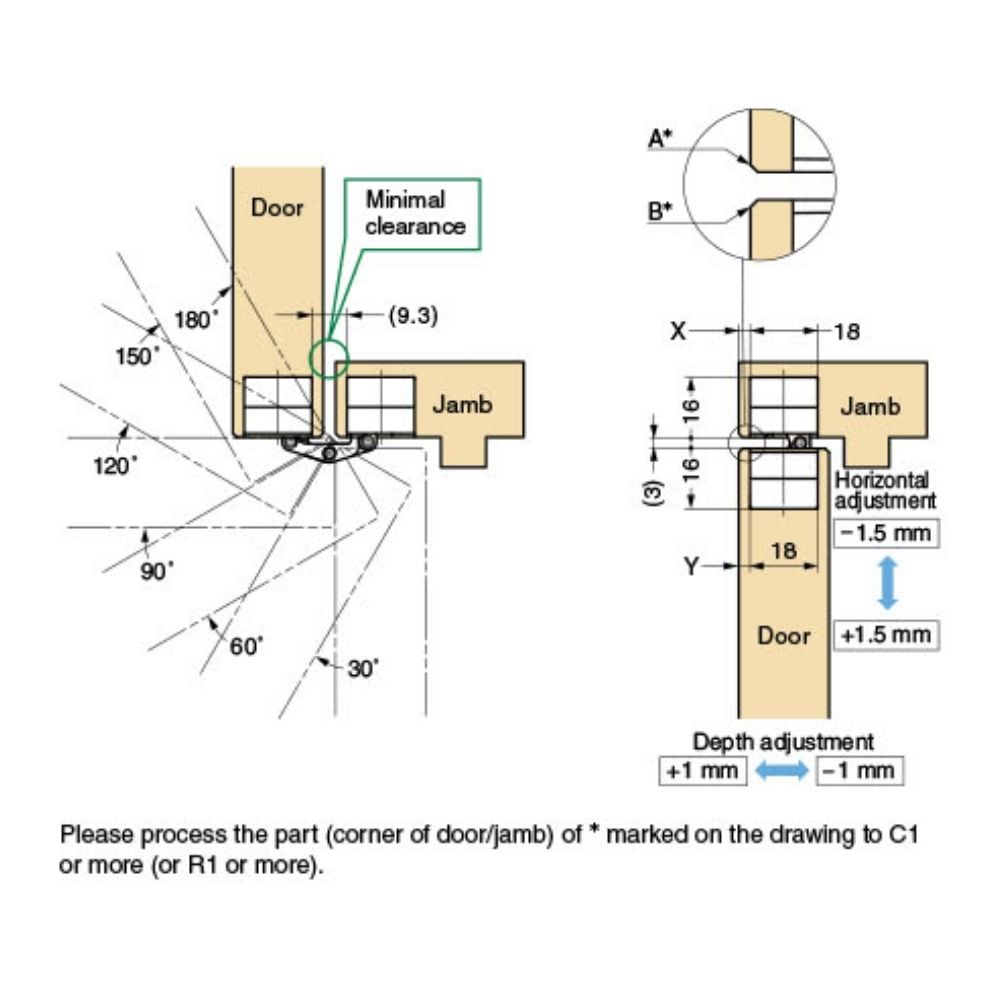

Achieves a 180° opening angle while remaining completely flush-mounted, meeting the highest modern architectural standards.
High Capacity in a Compact Form
Supports doors up to 16 kg (∼35 lbs) with 3 hinges, and a minimum door thickness of only 23 mm (∼15/16 in).
Separable Hinge Leaves
Reduces installation complexity without compromising the hinge’s exceptional durability or load-bearing standard.

Specification

Door Width	Door Height	Door Thickness	Installation	Load Capacity (2 pcs)	Load Capacity (3 pcs)
Max. 600 mm	Max. 1500 mm	Min. 23 mm	Inset	12 kg	16 kg
