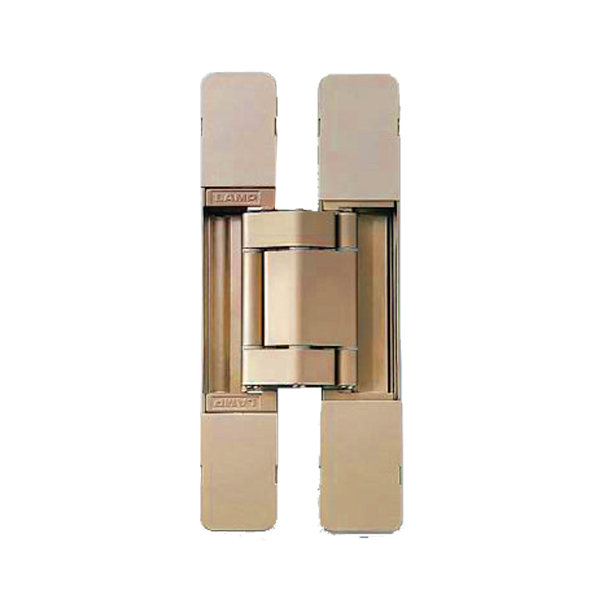

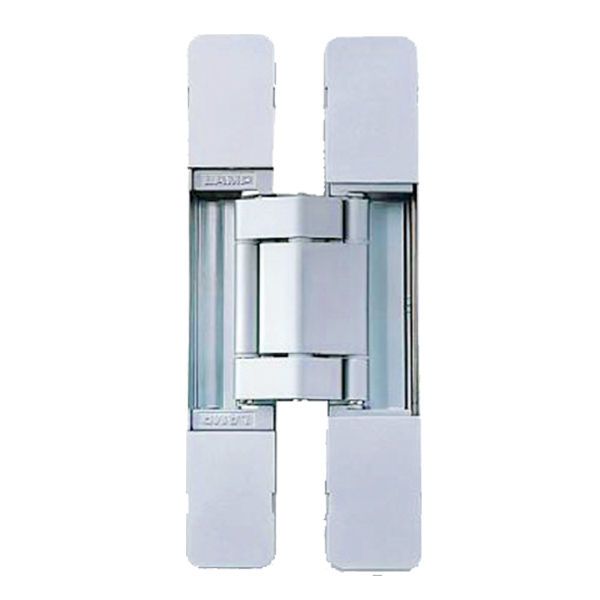

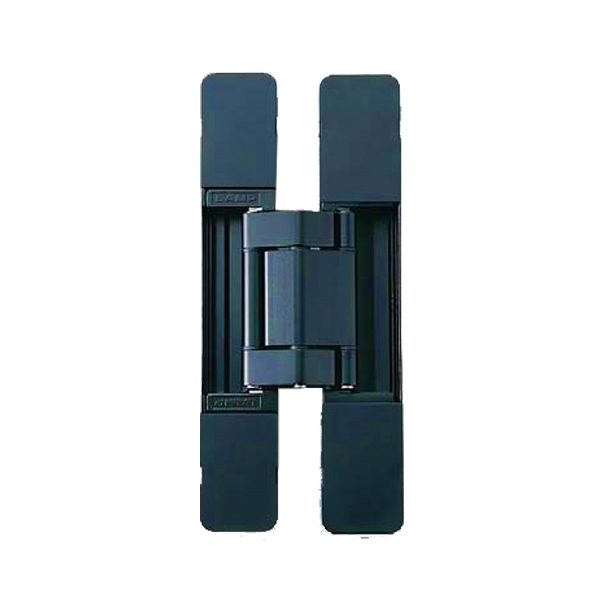

HES3D-E190

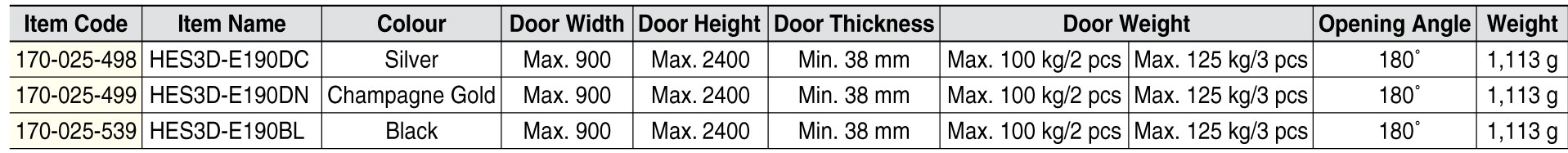

PRODUCT INFORMATION


Features

  • Thin profile allows for shallow mortise and makes installation easier
  • Jig (sold separately) makes installation easy.
  • Has a fire safety rating of ANSI/UL 10C, CAN/ULC-S104
  • Vertical, horizontal and depth adjustment possible post-installation (3way)
  • Can be split into two parts (one for the frame and one for the flap) making installation easy
  • Temporary holding feature: can temporarily be hung and hold position without
    being affixed with screws. This makes installation much easier.
  • Custom colors available on request. Please contact us for details.
  • Passed a 300,000 open/close cycle test in private testing.


Parts Included

  • Countersunk head screw 5×30 (4 pcs/hinge)
  • Allen key size 4


Sold Separately

  • Installation template HES3D-E190-TMP
  • Metal door bracket E190BKT

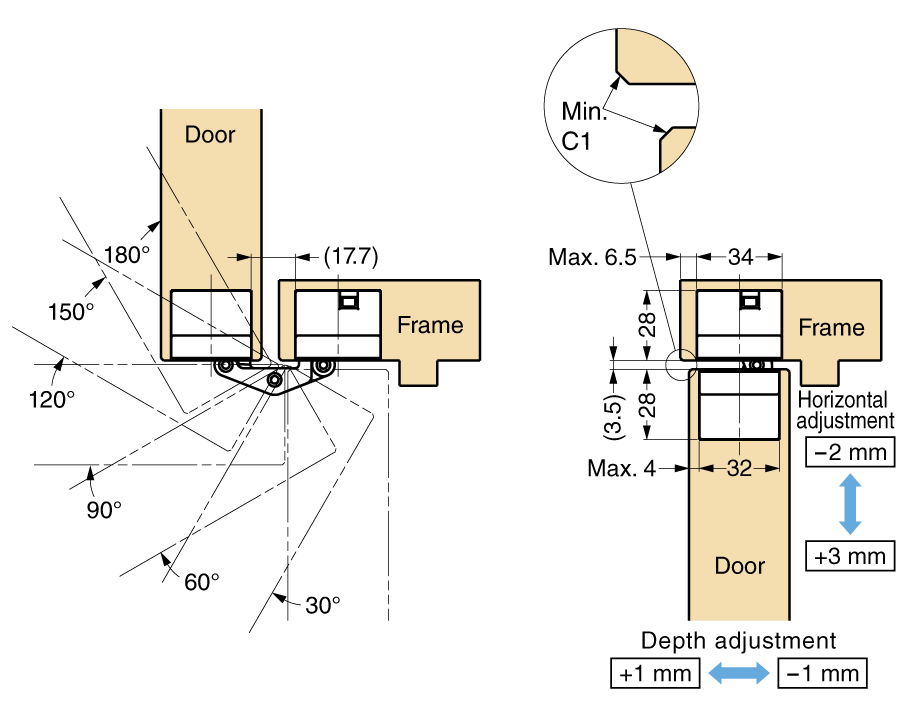

DOOR & FRAME

CUT OUT DIMENSIONS

DRAWING
