Description

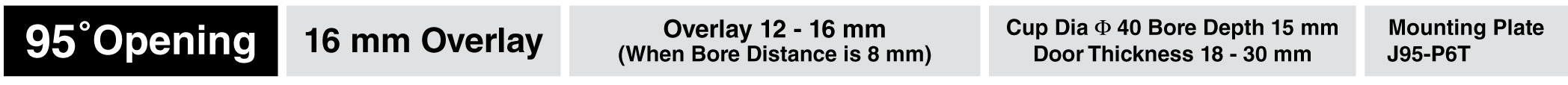

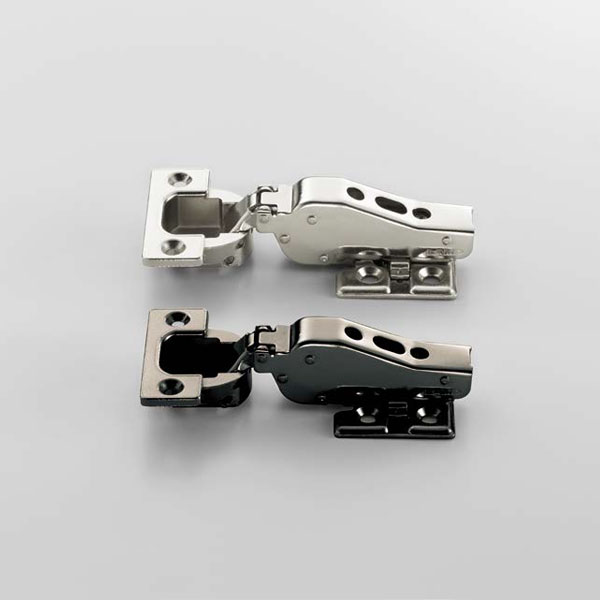

J95 (95°Opening 16 mm)

PRODUCT INFORMATION

Features

• 3-way-adjustment function by mounting plate (depth + 1.5, – 2.5 mm, vertical ± 3 mm, overlay [horizontal] + 0, – 4 mm).
• Snap on mount.

Sold Separately

• Mounting plate
• Face plate for glass door
• Safety cover
• Cover for mounting plate

PRODUCT INFORMATION 2

CUT OUT DIMENSIONS

DRAWING
