HETTICH SENSYS 8631i

|

SENSYS

SENSYS 8631i, Opening Angle 95°

Elevate your furniture design with the Hettich SENSYS 8631i 95° hinge. Engineered for thick doors (up to 32mm), this hinge features an integrated Silent System for effortlessly soft and quiet closing. Enjoy precise, 3-dimensional adjustment for perfect gap alignment, ensuring a flawless finish. The 95° opening angle offers excellent accessibility, making it ideal for various cabinet applications where smooth operation and superior quality are paramount

|

SENSYS

|

SENSYS

SENSYS HINGES

Sensys thick door hinge, door thickness up to 32 mm, with integrated silent system (Sensys 8631i), overlay, Opening angle 95°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Product Code:

9091400 (ฺNickel Color)

9091753 (ฺObsidian Black)

Information

Sensys thick door hinge, door thickness up to 32 mm
With integrated Silent System, with self closing feature (Sensys 8631i)
Quality classification under EN 15570, Level 2
Opening angle 95°
For door thickness 15-32 mm
Door mounting option overlay (B 12.5 mm)

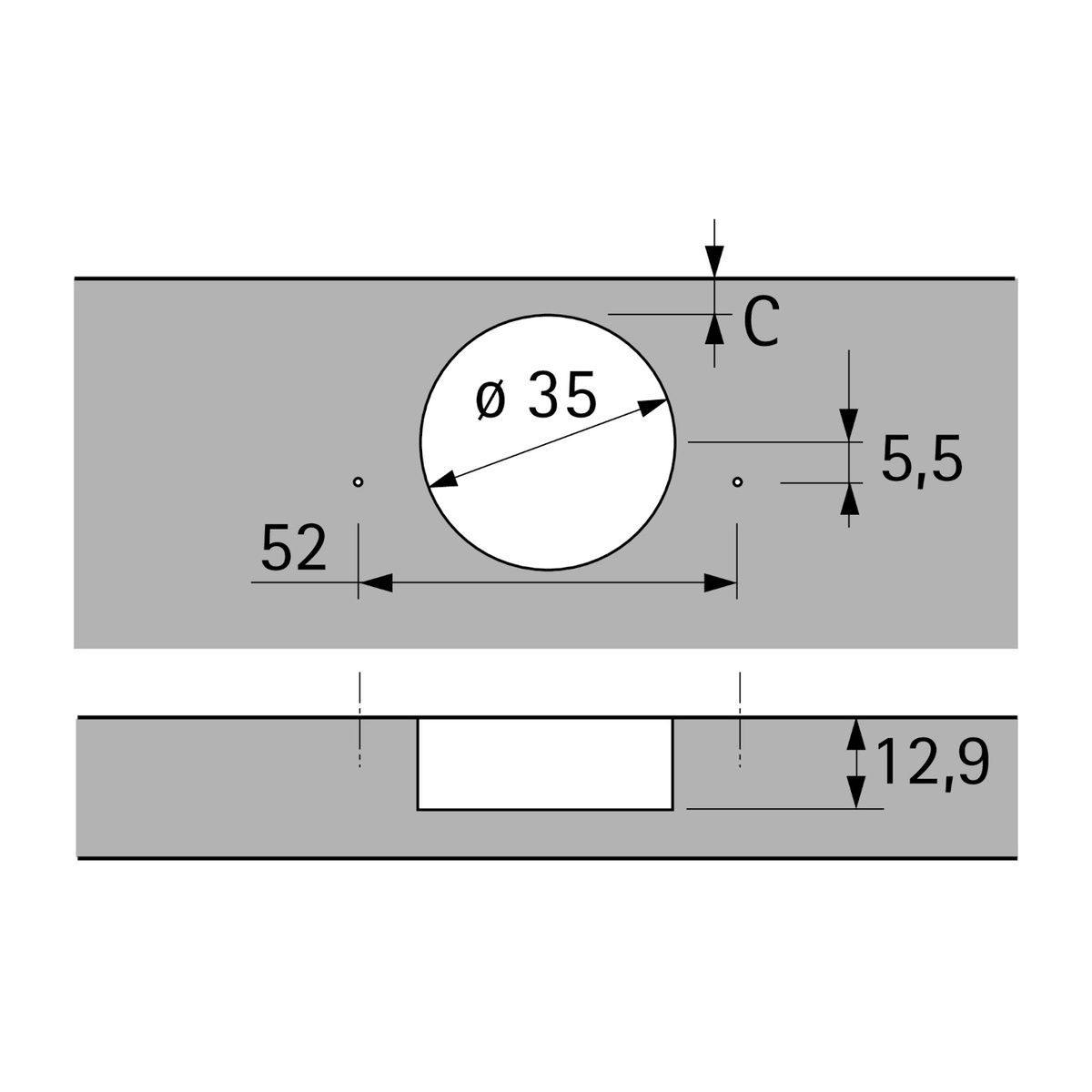

TH – drilling pattern 52 x 5.5 mm
Cup depth 12.8 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate

Technical Details

Door mounting option	overlay
Type of installation	for screwing on
Drilling pattern	TH 52 x 5,5 mm
Design	90° construction
Door type	Thick door Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm)
User friendly features	with integrated silent system
Opening angle	95 °
Min. door thickness	15 mm
Max. door thickness	32 mm
Cup version	TH 52
Base	12.5 mm
Cup diameter	35 mm
Cup depth	12.8 mm

Diameter of mounting hole	Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment	+2 mm / -2 mm
Integrated depth adjustment	+3 mm / -2 mm
Mounting hole	–
Stay closed function	Yes

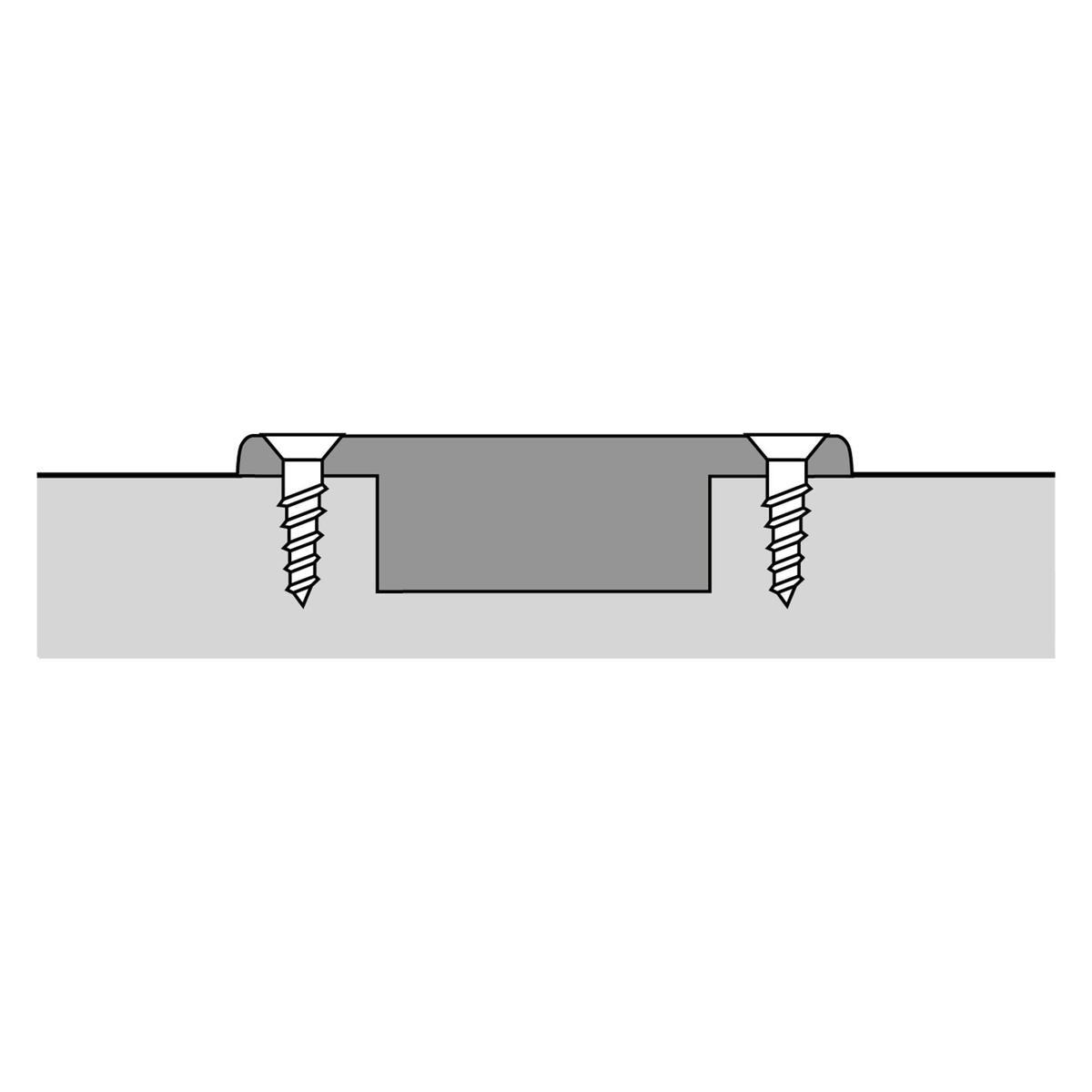

Drawing

Sensys thick door hinge, door thickness up to 32 mm, with integrated silent system (Sensys 8631i), half overlay, Opening angle 95°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Product Code:

9091410 (ฺNickel Color)

9091755 (ฺObsidian Black)

Information

Sensys thick door hinge, door thickness up to 32 mm
With integrated Silent System, with self closing feature (Sensys 8631i)
Quality classification under EN 15570, Level 2
Opening angle 95°
For door thickness 15-32 mm
Door mounting option half overlay (B 3 mm)
TH – drilling pattern 52 x 5.5 mm
Cup depth 12.8 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate

Technical Details

Design	90° construction
Door type	Thick door Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm)
User friendly features	with integrated silent system
Door mounting option	half overlay
Opening angle	95 °
Min. door thickness	15 mm
Max. door thickness	32 mm
Cup version	TH 52
Base	3 mm
Cup diameter	35 mm
Cup depth	12.8 mm
Type of installation	for screwing on

Drilling pattern	TH 52 x 5,5 mm
Diameter of mounting hole	Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment	+2 mm / -2 mm
Integrated depth adjustment	+3 mm / -2 mm
Mounting hole	–
Stay closed function	Yes

Drawing

Sensys thick door hinge, door thickness up to 32 mm, with integrated silent system (Sensys 8631i), inset, Opening angle 95°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Product Code:

9091420 (ฺNickel Color)

9091756 (ฺObsidian Black)

Information

Sensys thick door hinge, door thickness up to 32 mm
With integrated Silent System, with self closing feature (Sensys 8631i)
Quality classification under EN 15570, Level 2
Opening angle 95°
For door thickness 15-32 mm
Door mounting option inset (B -4 mm)
TH – drilling pattern 52 x 5.5 mm
Cup depth 12.8 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate

Technical Details

Design	90° construction
Door type	Thick door Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm)
User friendly features	with integrated silent system
Door mounting option	inset
Opening angle	95 °
Min. door thickness	15 mm
Max. door thickness	32 mm
Cup version	TH 52
Base	-4 mm
Cup diameter	35 mm
Cup depth	12.8 mm
Type of installation	for screwing on

Drilling pattern	TH 52 x 5,5 mm
Diameter of mounting hole	Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment	+2 mm / -2 mm
Integrated depth adjustment	+3 mm / -2 mm
Mounting hole	–
Stay closed function	Yes

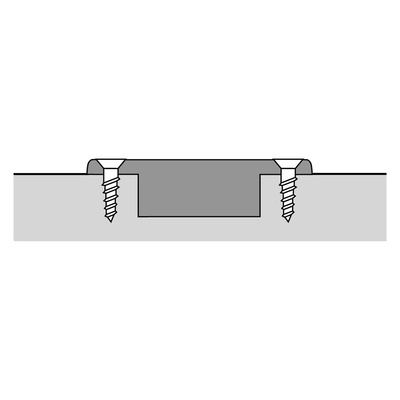

Drawing

ACCESSORIES

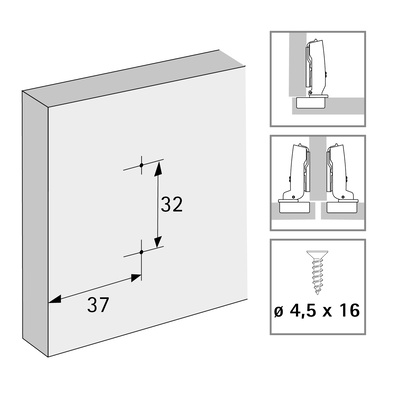

Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, for screwing on, distance 0.0 mm

Product Code:

9075005 (ฺNickel Color)

Information

Cross mounting plate with oblong hole height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3
For Hole line 37 x 32 mm
Installation for screwing on with 4.5 mm ø x 16 mm countersunk screws
Distance 0.0 mm
Adjustment range + 3 mm / – 3 mm
steel nickel plated

Technical Details

Type of installation mounting plates	for screwing on
Mounting plate / Hole line distance LR / Hole spacing LA	Cross mounting plate / LR 37 / LA 32
Type of mounting plate	Cross mounting plate
Hole line distance LR	37 mm
Height adjustment	oblong hole height adjustment
Adjustment range	+ 3 mm / – 3 mm
Hole line	Hole line 37 x 32 mm
Distance	0 mm
Hole spacing	32 mm
Material	steel
Finish	nickel plated
Door mounting option	overlay half overlay inset
Type of installation	for screwing on
EAN	4023149385766
Order no.	9075005
PU	50 ea.

Drawing

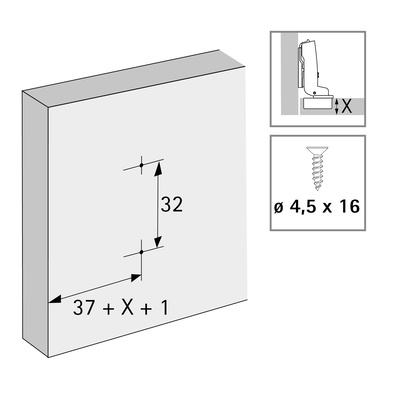

Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, for screwing on, distance 1.5 mm

Product Code:

9075006 (ฺNickel Color)

Information

Cross mounting plate with oblong hole height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3
For Hole line 37 x 32 mm
Installation for screwing on with 4.5 mm ø x 16 mm countersunk screws
Distance 1.5 mm
Adjustment range + 3 mm / – 3 mm
steel nickel plated

Technical Details

Type of installation mounting plates	for screwing on
Mounting plate / Hole line distance LR / Hole spacing LA	Cross mounting plate / LR 37 / LA 32
Type of mounting plate	Cross mounting plate
Hole line distance LR	37 mm
Height adjustment	oblong hole height adjustment
Adjustment range	+ 3 mm / – 3 mm
Hole line	Hole line 37 x 32 mm
Distance	1.5 mm
Hole spacing	32 mm
Material	steel
Finish	nickel plated
Door mounting option	overlay half overlay inset
Type of installation	for screwing on
EAN	4023149385803
Order no.	9075006
PU	50 ea.

Drawing

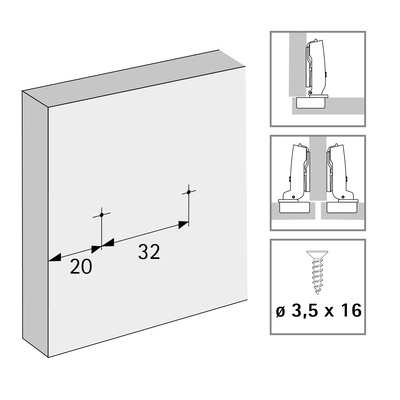

Linear mounting plate with Direct height adjustment, Hole line 20 x 32 mm, for screwing on, distance 1.5 mm

Product Code:

9117341 (ฺNickel Color)

9117471 (ฺObsidian Black)

Information

Cross mounting plate with oblong hole height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3
For Hole line 37 x 32 mm
Installation for screwing on with 4.5 mm ø x 16 mm countersunk screws
Distance 1.5 mm
Adjustment range + 3 mm / – 3 mm
steel nickel plated

Technical Details

Type of installation mounting plates	for screwing on
Mounting plate / Hole line distance LR / Hole spacing LA	Linear mounting plate / LR 20 / LA 32
Type of mounting plate	Linear mounting plate
Hole line distance LR	20 mm
Height adjustment	Direct height adjustment
Adjustment range	+ 2 mm / – 2 mm
Hole line	Hole line 20 x 32 mm
Distance	1.5 mm
Hole spacing	32 mm
Material	steel

Door mounting option	overlay half overlay inset
Type of installation	for screwing on

Drawing

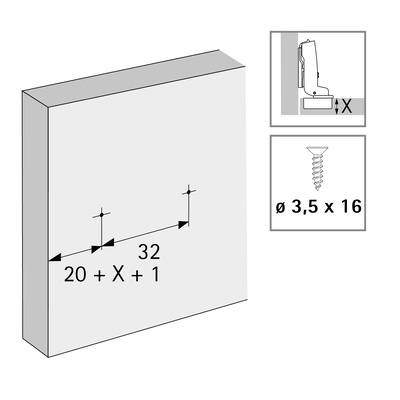

Linear mounting plate with Direct height adjustment, Hole line 20 x 32 mm, for screwing on, distance 3.0 mm

Product Code:

9117342 (ฺNickel Color)

9117472 (ฺObsidian Black)

Information

Linear mounting plate with Direct height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3
For Hole line 20 x 32 mm
Installation for screwing on with 3.5 mm ø x 16 mm countersunk screws
Distance 3.0 mm
Adjustment range + 2 mm / – 2 mm
steel nickel plated

Technical Details

Type of installation mounting plates	for screwing on
Mounting plate / Hole line distance LR / Hole spacing LA	Linear mounting plate / LR 20 / LA 32
Type of mounting plate	Linear mounting plate
Hole line distance LR	20 mm
Height adjustment	Direct height adjustment
Adjustment range	+ 2 mm / – 2 mm
Hole line	Hole line 20 x 32 mm
Distance	3 mm
Hole spacing	32 mm
Material	steel
Finish	nickel plated
Door mounting option	overlay half overlay inset
Type of installation	for screwing on

Drawing

Cover cap for Sensys hinge arm (neutral)

Product Code:

9088249 (ฺNickel Color)

9091820 (ฺObsidian Black)

Information

Can be used with all Sensys hinges apart from Sensys wide angle hinge
Cover caps with customised embossed or printed logo on request
Steel nickel plated

Technical Details

Design	neutral
Article type	for all Sensys hinges (except wide angle hinge)
Accessory type	Cover caps

Cover cap for Sensys hinge arm (embossed with Hettich logo)

Product Code:

9088250 (ฺNickel Color)

9091821 (ฺObsidian Black)

Information

Can be used with all Sensys hinges apart from Sensys wide angle hinge
Cover caps with customised embossed or printed logo on request
Steel nickel plated

Technical Details

Design	embossed with Hettich logo
Article type	for all Sensys hinges (except wide angle hinge)
Accessory type	Cover caps

Cover cap for Sensys hinge cup (for drilling pattern TH / TS)

Product Code:

9088251 (ฺNickel Color)

9091822 (ฺObsidian Black)

Information

Can be used for hinges with cup in Sensys design
Steel nickel plated

Technical Details

Dimension X	68.2 mm
Design	for drilling pattern TH / TS
Finish	nickel / obsidian black plated
Drilling pattern	TH 52 x 5,5 mm TS 48 x 6 mm
Accessory type	Cover caps

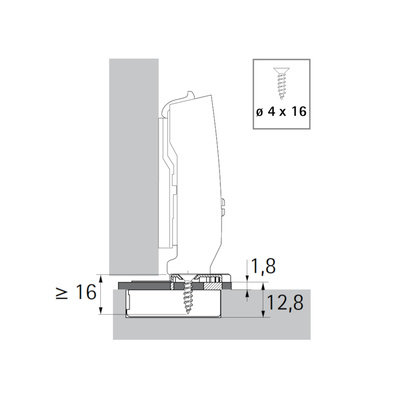

Adapter for reducing drilling depth, for drilling pattern TH / TS, thickness 1.8 mm

Product Code:

9071440

Information

To reduce the required depth of the cup drilling in thin or highly softened doors
Can be used with hinge cup for screwing on
The gap between cabinet body and door increases by the thickness of the adapter
Attachment by ø 4 x 16 mm countersunk screws
Plastic transparent

Technical Details

Article type	for drilling pattern TH, TS
Drilling pattern	TH 52 x 5,5 mm TS 48 x 6 mm
Accessory type	Adapter for reducing drilling depth
Finish	transparent
EAN	4023149060632
Order no.	9071440
PU	2,000 ea.

Drawing

Adapter for reducing drilling depth, for drilling pattern TH / TS, thickness 2.7 mm

Product Code:

9073596

Information

To reduce the required depth of the cup drilling in thin or highly softened doors
Can be used with hinge cup for screwing on
The gap between cabinet body and door increases by the thickness of the adapter
Attachment by ø 4 x 16 mm countersunk screws
Plastic transparent

Technical Details

Article type	for drilling pattern TH, TS
Drilling pattern	TH 52 x 5,5 mm TS 48 x 6 mm
Accessory type	Adapter for reducing drilling depth
Finish	transparent
EAN	4023149188336
Order no.	9073596
PU	50 ea.

Drawing

|

SENSYS

SENSYS 8631i, Opening Angle 95°

|

SENSYS

|

SENSYS

SENSYS HINGES

Sensys thick door hinge, door thickness up to 32 mm, with integrated silent system (Sensys 8631i), overlay, Opening angle 95°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Product Code:

Sensys thick door hinge, door thickness up to 32 mm, with integrated silent system (Sensys 8631i), half overlay, Opening angle 95°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Product Code:

Sensys thick door hinge, door thickness up to 32 mm, with integrated silent system (Sensys 8631i), inset, Opening angle 95°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Product Code:

ACCESSORIES

Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, for screwing on, distance 0.0 mm

Product Code:

Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, for screwing on, distance 1.5 mm

Product Code:

Linear mounting plate with Direct height adjustment, Hole line 20 x 32 mm, for screwing on, distance 1.5 mm

Product Code:

Linear mounting plate with Direct height adjustment, Hole line 20 x 32 mm, for screwing on, distance 3.0 mm

Product Code:

Cover cap for Sensys hinge arm (neutral)

Product Code:

Cover cap for Sensys hinge arm (embossed with Hettich logo)

Product Code:

Cover cap for Sensys hinge cup (for drilling pattern TH / TS)

Product Code:

Adapter for reducing drilling depth, for drilling pattern TH / TS, thickness 1.8 mm

Product Code:

Adapter for reducing drilling depth, for drilling pattern TH / TS, thickness 2.7 mm

Product Code:

Relative Products

Related products

J95

Actro 5D Drawer Runner – 40 kg, L450mm

AvanTech YOU Inlay Drawer Set – 30 kg, L400 mm

PRE-TH554

Relative Products

Related products

Veosys 105°

Quadro V6 Drawer Runner Set – 30 kg, L450mm

AvanTech YOU Drawer System – 40 kg, H187mm, L450mm

PRE-TH554
