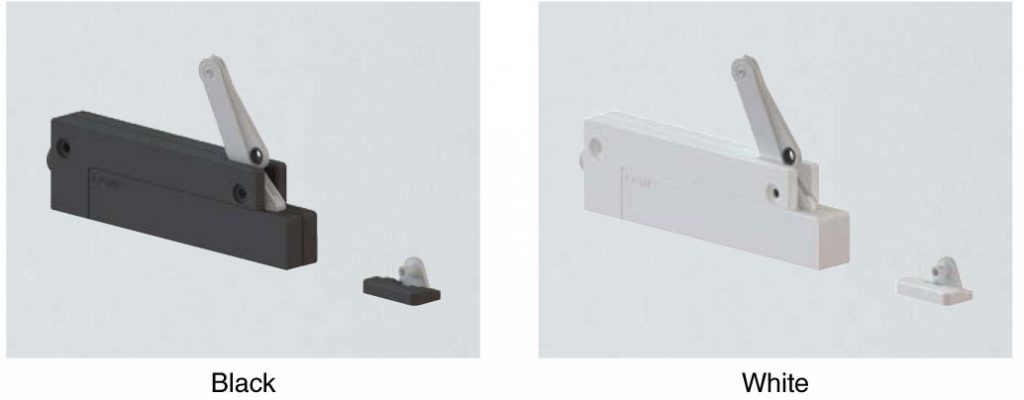

CSD-10-TV


Features

  • Soft-down stay for downward-opening flap doors. Works well with short flap doors.
  • Simply installation by just aligning the stay with the sides and fastening with screws. (For single axis hinges and drop hinges)

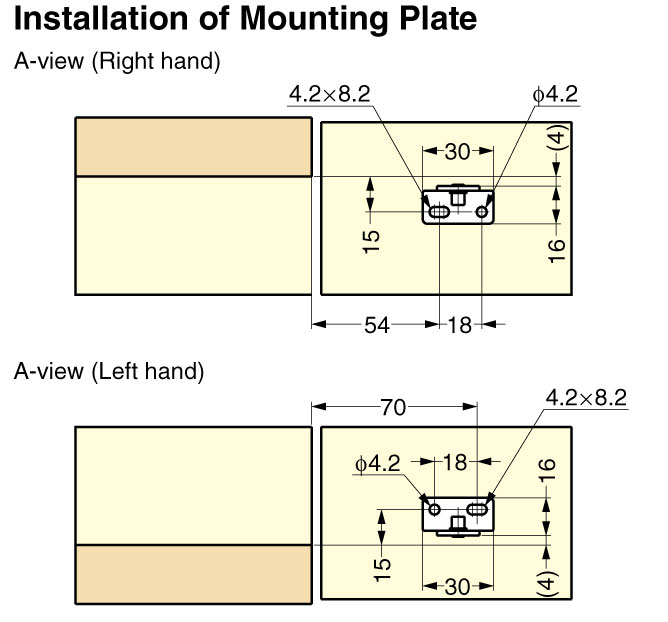

  • Template makes installing the mounting plate easy.
  • When closing the flap, the damper provides no resistance and also has a lift assist function for easy lifting and operation (Type M and H only)
  • Non handed.
  • Placed at the bottom of interior of the cabinet, significantly reducing dead space.
  • By using the cover, both the body and the mounting plate will have the same color.

Parts Included

  • Mounting plate and cover
  • Binding head tapping screw 3.5×30 (for main body)
  • Binding head tapping screw 3.5×15 (for mounting plate)



Sold Separately

  • Butt hinge
  • Drop hinge SDH-P, SDH-001
  • Drop hinge for glass door SDH-G
  • Face plate for glass door SDH-FP, SDS-50G
  • Mounting plate for glass door NSDX-GZ
