Category:

Description

IF

PRODUCT INFORMATION


Features

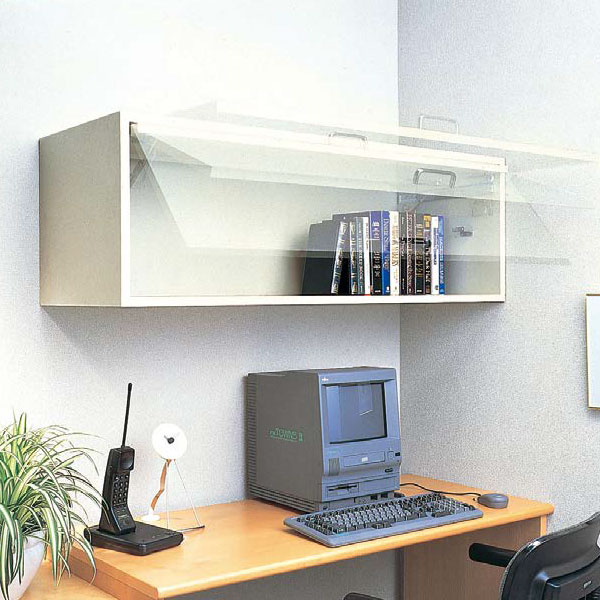

  • For upward-opening flap doors.
  • Built-in damper provides soft closing near closing radius, preventing slamming.
  • Flap door retracts inside cabinet, allowing other cabinets to be installed on top.
    • Successfully passed 30,000 open/close cycles in a private test.

Remarks

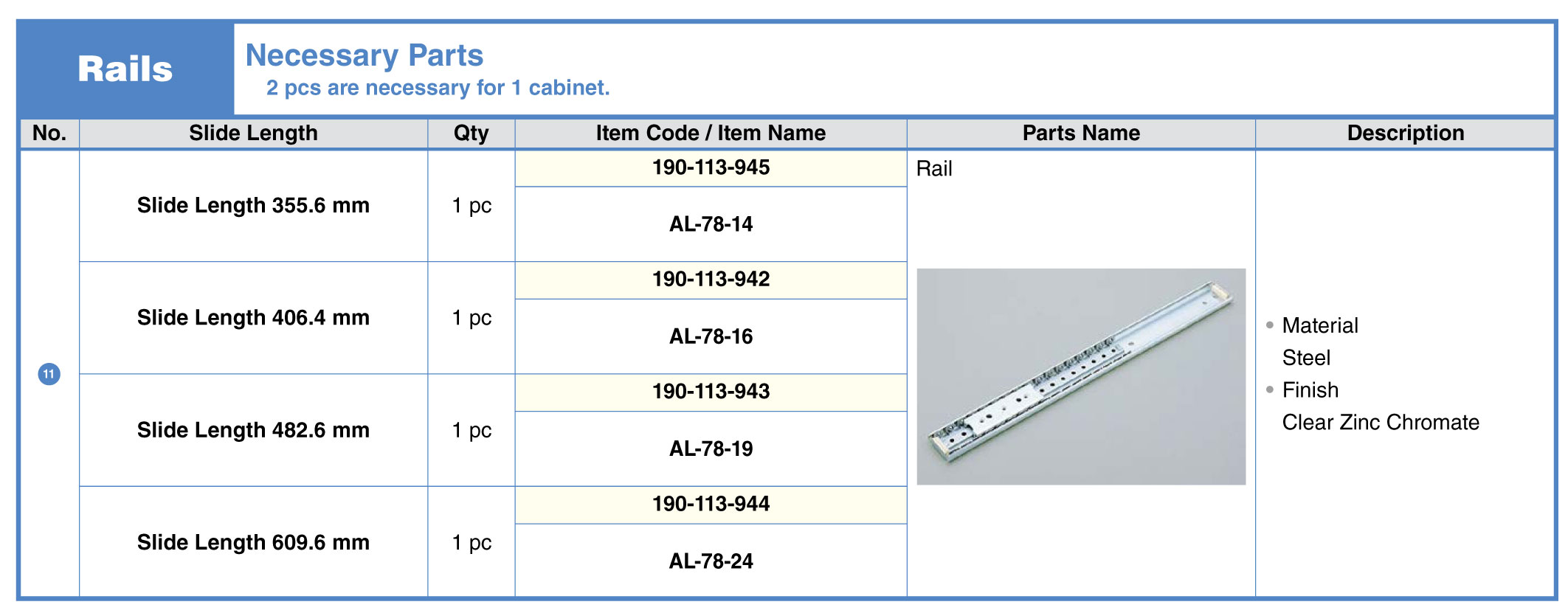

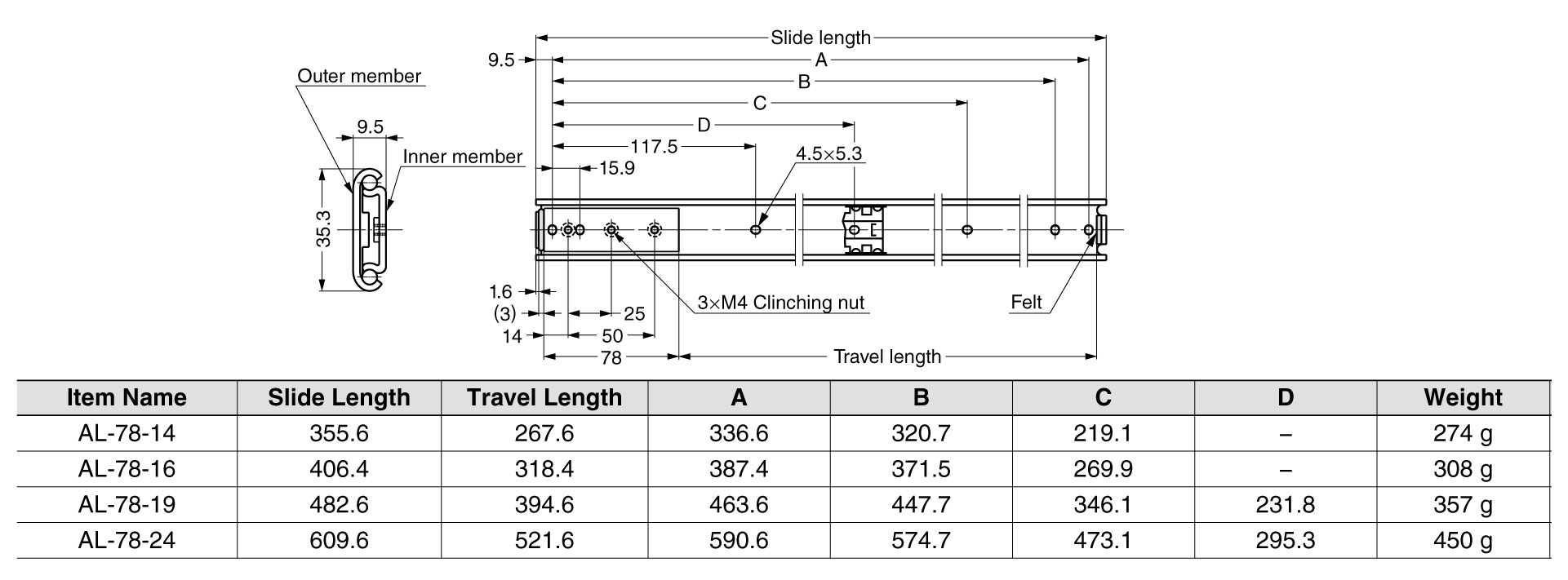

  • 1 set of IF-102 (Parts set) and 2 pcs of AL-78 (Rails) are necessary for 1 cabinet.

DOOR STORAGE AND RECOMMENDED DOOR HEIGHT

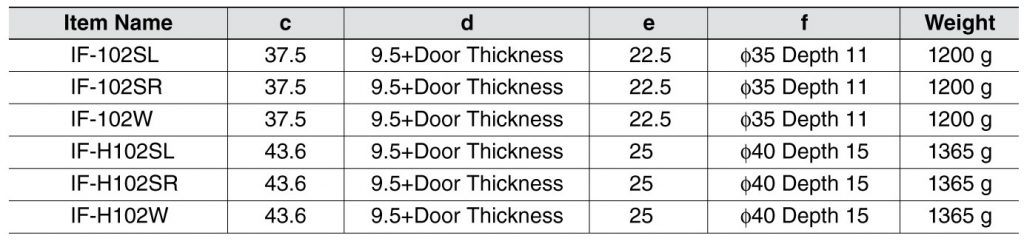

PARTS SET

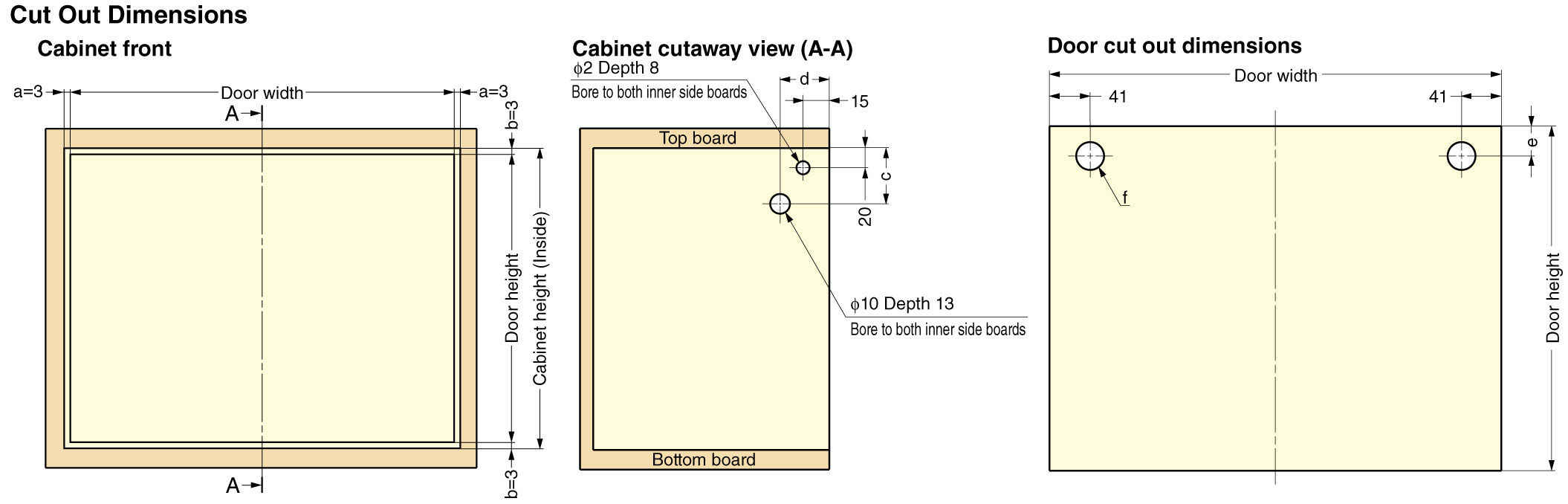

CUT OUT DIMENSIONS
