LAD-ST

PRODUCT INFORMATION


Features

  • Ideal solution for counter flaps at bars, restaurants, and reception counters.
  • Smooth and soft close movement near closing radius prevents flaps from
    slamming. Damper function works even if the flap is only opened slightly.
  • Lift-assist mechanism with light opening.
  • Stops flap at 95° opening with stopper.
  • Suitable for flap thickness of 15 – 40 mm.
  • Can be attached to already installed counters without extra processing.
  • Installation position can be easily determined with the supplied template.

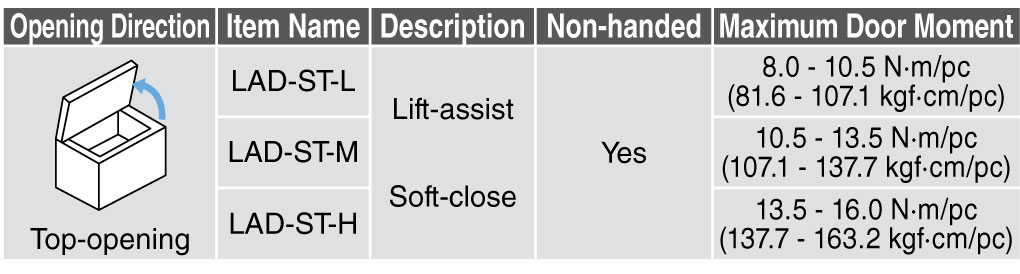

Specifications

  • Operating temperature: 0°C – 40°C



Remarks

  • Make sure to have sufficient hinge strength and board material strength at the side from which the flap is suspended (rotates).
  • Cannot use more than two sets on a single flap.
  • While open, the flap is not held firmly in position.
  • Use a single axis hinge on the suspended (rotating) side of the flap. Another possibility is to use the R series
    concealed hinges for combined use.
  • Do not use kitchen concealed hinges.
  • Closed flap will not be held in place with this product alone. Please install some type of catch on the side of the flap that lifts up.
  • Do not use more force than is necessary to open or close the flap.
  • Ensure that the distance from mounting surface of damper unit and stopper to flap surface is 15 – 40 mm (see drawing).
  • Be careful not to get fingers caught between arm unit and damper unit.
  • Do not use in combination with spacer LAD-DP (for thick door) and bracket for back mount LAD-BKT (for horizontal installation).

Parts Included

  • Binding head tapping screw 4 × 16
  • Template for positioning

APPLICATION EXAMPLE

SOFT-CLOSE/LIFT-ASSIST/WITH STOPPER/EASY POST

DRAWING
