OV-1

PRODUCT INFORMATION


Features

  • For upward-opening flap doors.
  • Built-in damper provides soft closing near closing radius, preventing slamming.
  • When pulling the flap door out horizontally, will hold its position.
  • Flap door retracts above cabinet top and OV-1 is installed into frame, almost completely eliminating dead space.
  • Closing speed is adjustable.
  • Position adjustable post-installation (±1.5mm)
  • Ball bearing type slide rail provides smooth movement in rail section.

Remarks

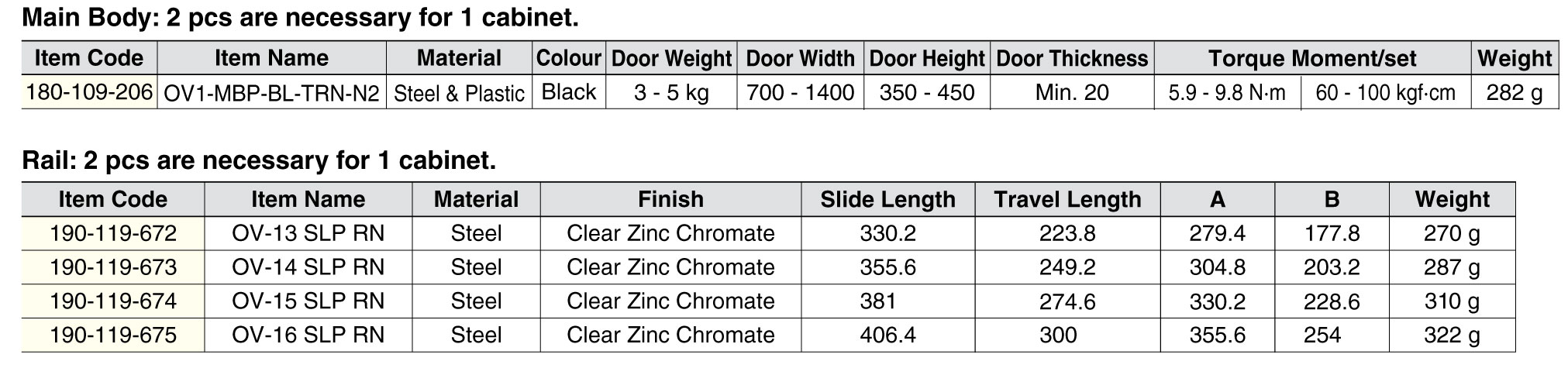

  • 2 pcs of OV1-MBP-BL-TRN-N2 (Main body) and 2 pcs of OV-SLP RN (Rail) are necessary for 1 cabinet.

Parts Included

  • Installation plate (4 pcs)
  • Countersunk head screw M4×26 for wooden door (8 pcs)
  • Binding head screw M4×8 for metal door (8 pcs)
  • Binding head tapping screw 4×10 for rail installation (12 pcs)

INSTALLATION PLATE

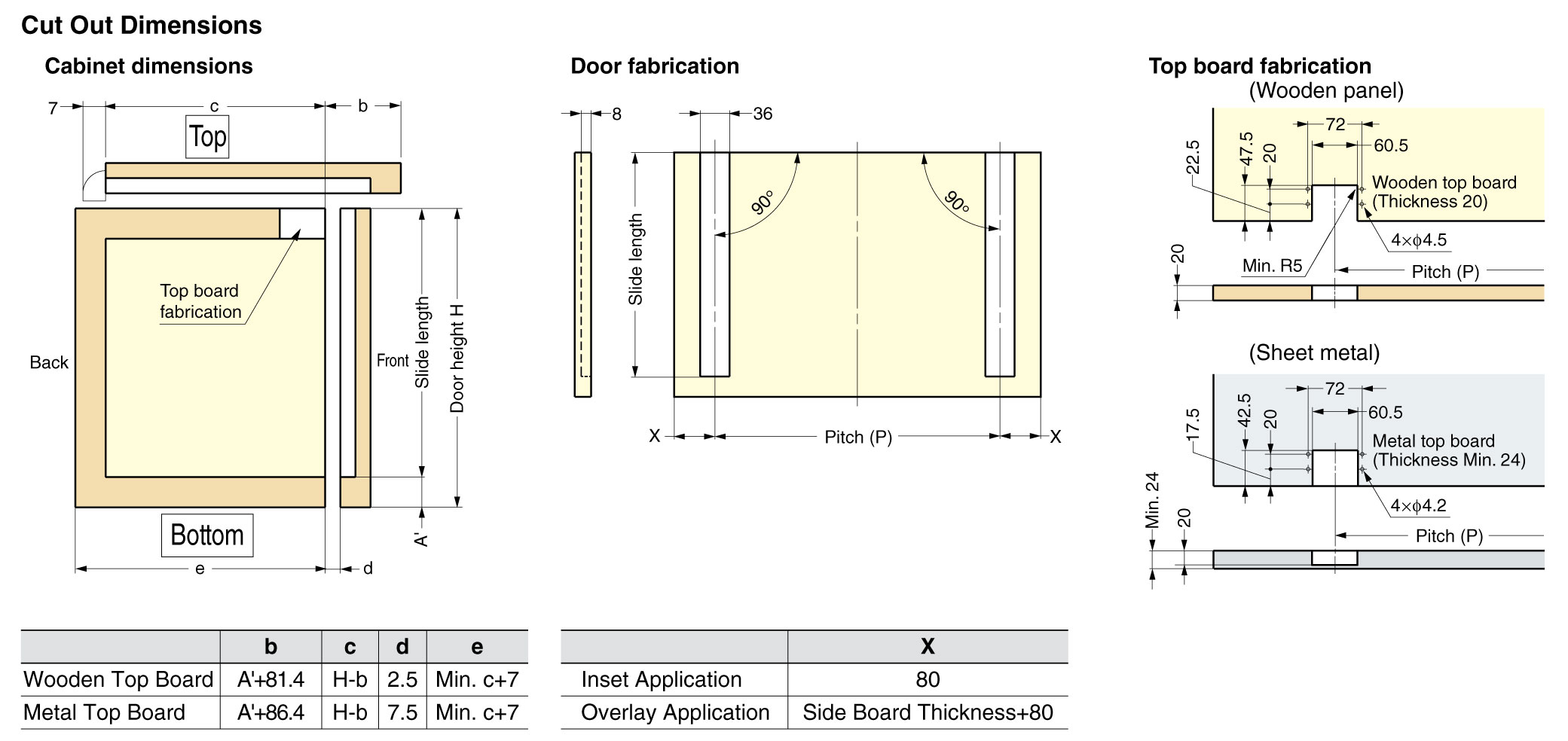

CUT OUT DIMENSIONS
