Description

SDS-C100

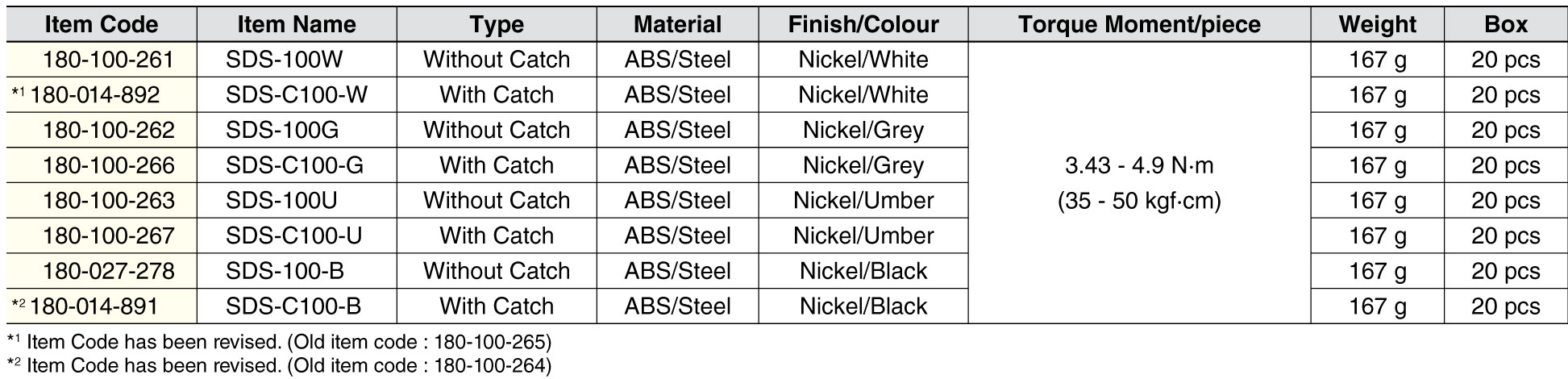

PRODUCT INFORMATION

Features

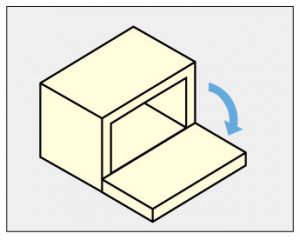

• For downward-opening flap doors.
• Built-in damper causes flap to open gently near fully open radius.
• Non-handed.
• SDS-C100 has a built-in catch to hold the door in a closed position.
• SDS-100 does not have a catch and needs to have one installed
  separately.

Torque

• With 1 stay
  Torque = 3.43 – 4.9 N·m (35 – 50 kgf·cm)
• With 2 stays, the torque will be doubled.

Parts Included

• Mounting plate SDS-A
  Countersunk head tapping screw 3.5×14

Sold Separately

• Face plate for glass doors SDS-50G

Color

PRODUCT INFORMATION 2

Body

SDS Face Plate (Sold Separately)

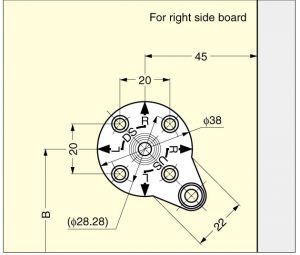

MOUNTING PLATA SDS-A

INSTALLATION (OPENING ANGLE 90°)
