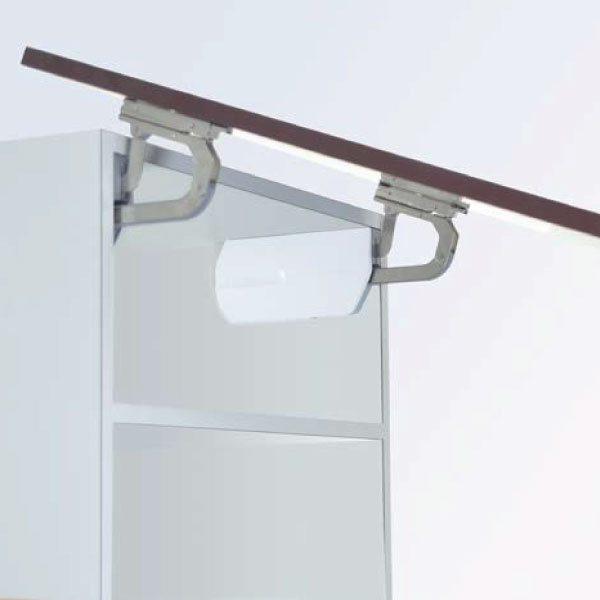

EZS-ELAN


Features

  • For upward-opening flap doors.
  • Equipped with:
    -Lift assist (to make flap doors feel lighter)
    -Free stop (holds position at any angle from 30° to 70°)
    -Soft-closing (slows down closing speed to prevent slamming between 0° and 20°)
  • Successfully passed 30,000 open/close cycles in a private test.
  • 2011 Good Design Award Winner
  • Placed at the top of interior of the cabinet, significantly reducing dead space and not getting in the way when installing shelves.
  • No hinges or connecting bars are needed.
  • Easy alignment: Simply press the body to the top of the interior of the cabinet and align the front flush with the cabinet.

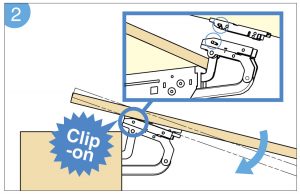

  • Fast and easy installation: Body is attached to mounting plate (on flap) by simply snapping it in.
  • If flap is within specification, does not require torque adjustment postinstallation.

Remarks

  • Used in pairs.

Parts Included

  • Mounting plate (2 pcs)
  • Countersunk head tapping screw 3.5×38 for main body (6 pcs)
  • Binding head tapping screw 3.5 × 15 for mounting plate (4 pcs)
